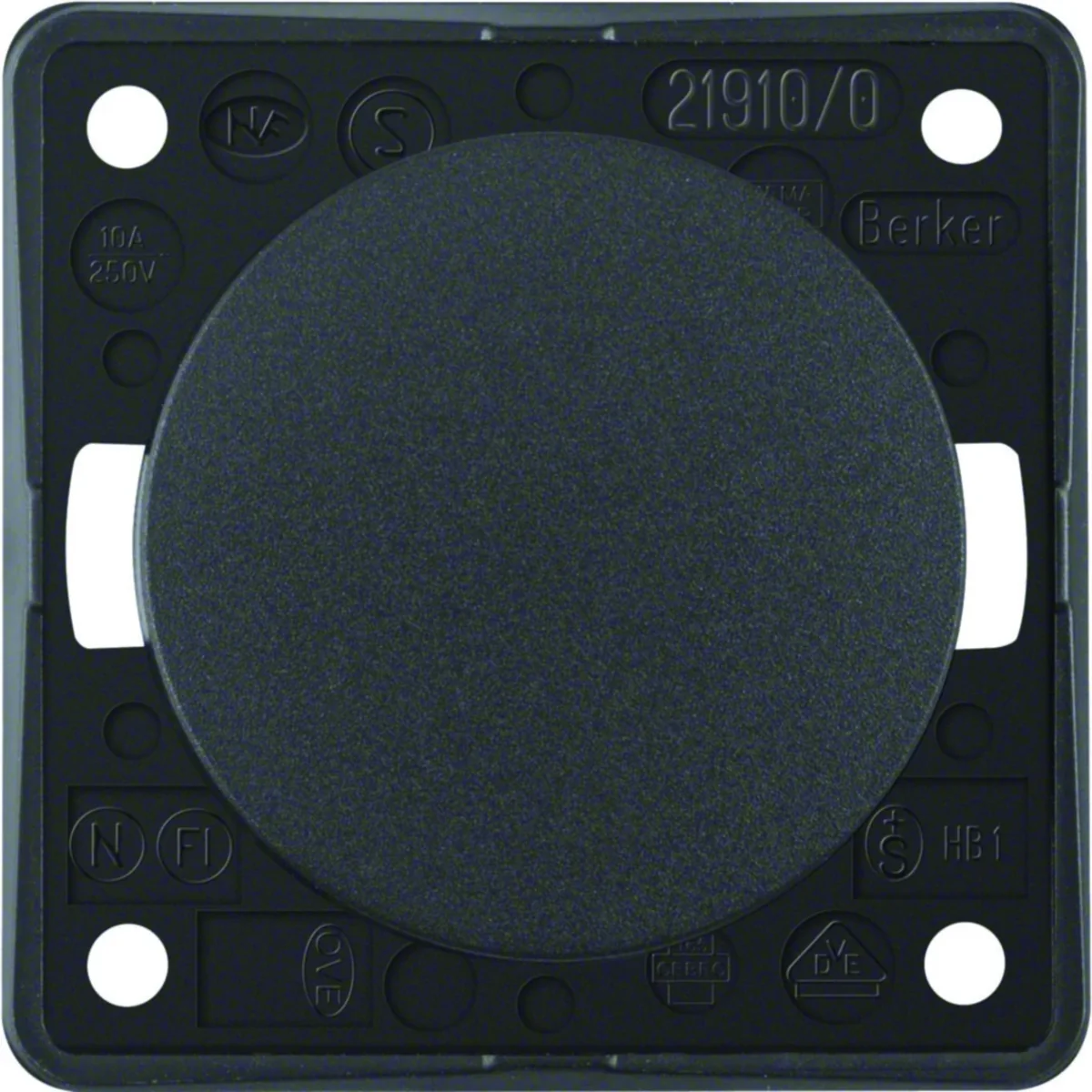

INTEGRO FLOW/PURE Push-button switch, normally open, anthracite matt 936712505

local index:
MMZ039BERK
Catalog No:
936712505
EAN code:
4011334240327
Manufacturer: BERKER
Depth [mm]: 25
Number of keys: 1
Color: Graphite
Price:
10,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch pushbutton, normally open, from the Berker Integro Flow/Pure series, from the manufacturer Berker. The product catalog number is 936712505. Anthracite.



FEATURES

  • With screw terminals.



SERIES DESCRIPTION

Berker Integro Flow with its minimalist design, quick and easy installation makes the series an ideal a solution for use in kitchen furniture, in the  sanitary industry and everywhere where compact design and versatile functionality are required.

Technical data

  • Depth [mm]
    25
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    55.5
  • Accurate color
    Anthracite
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Width [mm]
    55.5
  • Version
    Confident
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    Thermoplastic

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP44
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    13 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • Imprint
    None
  • Device width
    55.5 mm
  • Device depth
    25 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 2400 pcs.
Weight (kg) 0,028 0,340 3,780 113,720
Width (m) 0,056 0,135 0,315 0,800
Length (m) 0,024 0,065 0,210 1,050
Depth (m) 0,056 0,205 0,360 1,200
