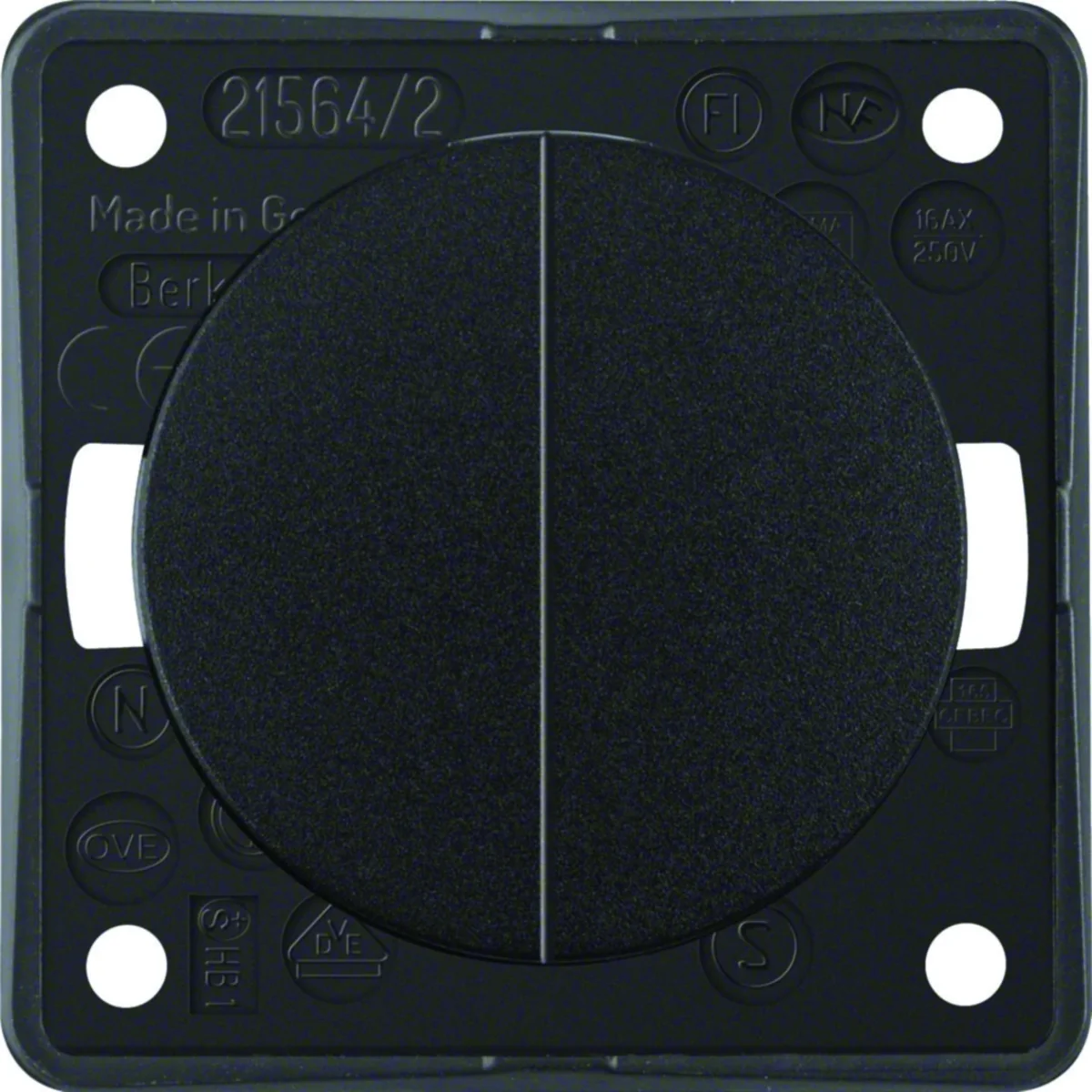

INTEGRO FLOW/PURE Multi-switch series glossy black switch 936552510

Index local:
MMT009BERK
Numéro de catalogue:
936552510
Code EAN:
4011334336235
Producteur: BERKER
Depth [mm]: 25
Color: Black
Material: Thermoplastic
Prix:
77,08 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Multi-key switch serial, Berker Integro Flow/Pure series.

Controls and indicators:

  • for drywall.

Connection:

  • common input terminal,
  • with screw terminals.

Données techniques

  • Depth [mm]
    25
  • Material
    Thermoplastic
  • DC rated voltage [V]
    250
  • Rated current [A]
    16
  • Level of security
    IP20
  • Fastener type
    Serial
  • PKWIU
    27.33.11.0
  • Color
    Black
  • Rated voltage [V]
    230
  • Surface
    Gloss
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Width [mm]
    55.5
  • Connection type
    With screw terminals

Autres données techniques

  • Wiring system
    Series switch
  • Assembly arrangement
    Basic element with central cover plate
  • Push button switch
    No
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Black
  • Label space/information surface
    No
  • Function lighting
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Heating switch
    No
  • Device width
    55.5 mm
  • Device depth
    25 mm
  • Min. depth of built-in installation box
    13 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    2
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • Illumination
    No
  • Type of lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Washing machine switch
    No
  • Device height
    55.5 mm
  • Built-in depth
    10 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Compliant with UK Building Regulations Part M
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 10 pcs. 100 pcs. 2400 pcs.
poids (kg) 0,400 4,300 128,200
Largeur (m) 0,130 0,320 0,800
Longueur (m) 0,060 0,210 1,050
Profondeur (m) 0,200 0,360 1,200
