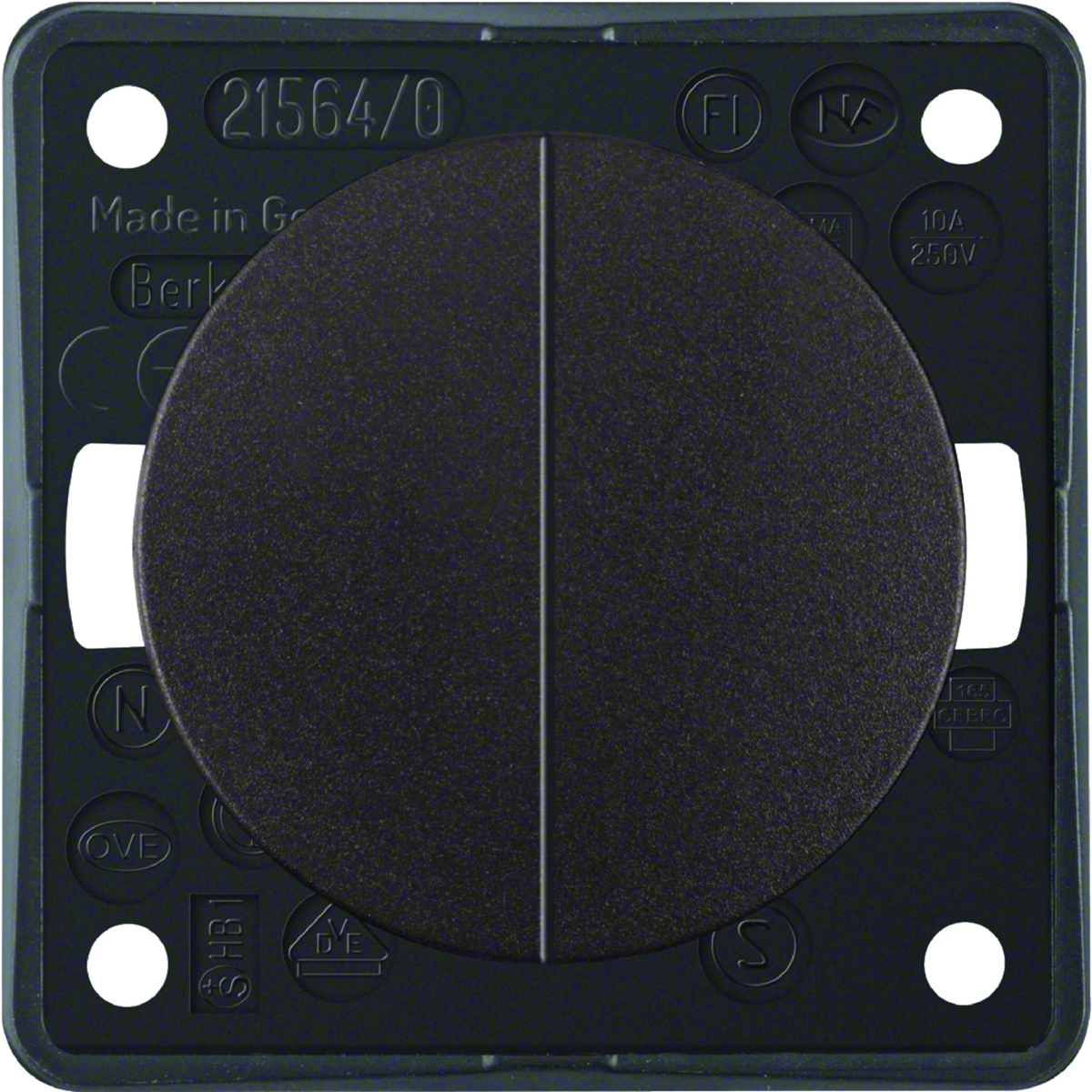

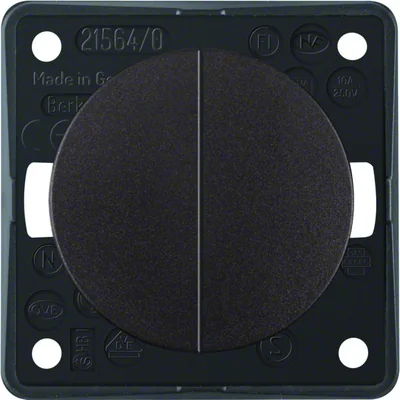

INTEGRO FLOW/PURE Multi-gang push-button switch brown matt 936752501

local index:
MMZ045BERK
Catalog No:
936752501
EAN code:
4011334240358
Manufacturer: BERKER
Depth [mm]: 25
Number of keys: 2
Color: Brown
Price:
17,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double switch push from the Berker Integro Flow/Pure series, from the manufacturer Berker. Product catalog number is 936752501. Brown.



FEATURES

  • With screw terminals.
  • Common input terminal.



SERIES DESCRIPTION

Berker Integro Flow minimalist design, quick and easy installation makes the series an ideal solution for use in kitchen furniture, in the sanitary industry and everywhere where compact design and versatile functionality are required.

Technical data

  • Depth [mm]
    25
  • Color
    Brown
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    55.5
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • Number of keys
    2
  • Shape
    Round
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Width [mm]
    55.5
  • Version
    Confident
  • Surface finish
    matte
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Transparent
    No
  • Imprint
    None
  • Device width
    55.5 mm
  • Device depth
    25 mm
  • Model
    Series push button
  • Number of rockers
    2
  • Number of poles
    2
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • RAL-number (similar)
    8017
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    13 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 3200 pcs.
Weight (kg) 0,035 0,390 4,380 165,160
Width (m) 0,056 0,140 0,300 0,800
Length (m) 0,024 0,065 0,225 1,050
Depth (m) 0,056 0,205 0,400 1,200
