INTEGRO FLOW/PURE Multi-button shutter switch with "arrow" print, stainless steel, varnished 936532524
local index:
MMO025BERK
Catalog No:
936532524
EAN code:
4011334336921
Price:
41,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

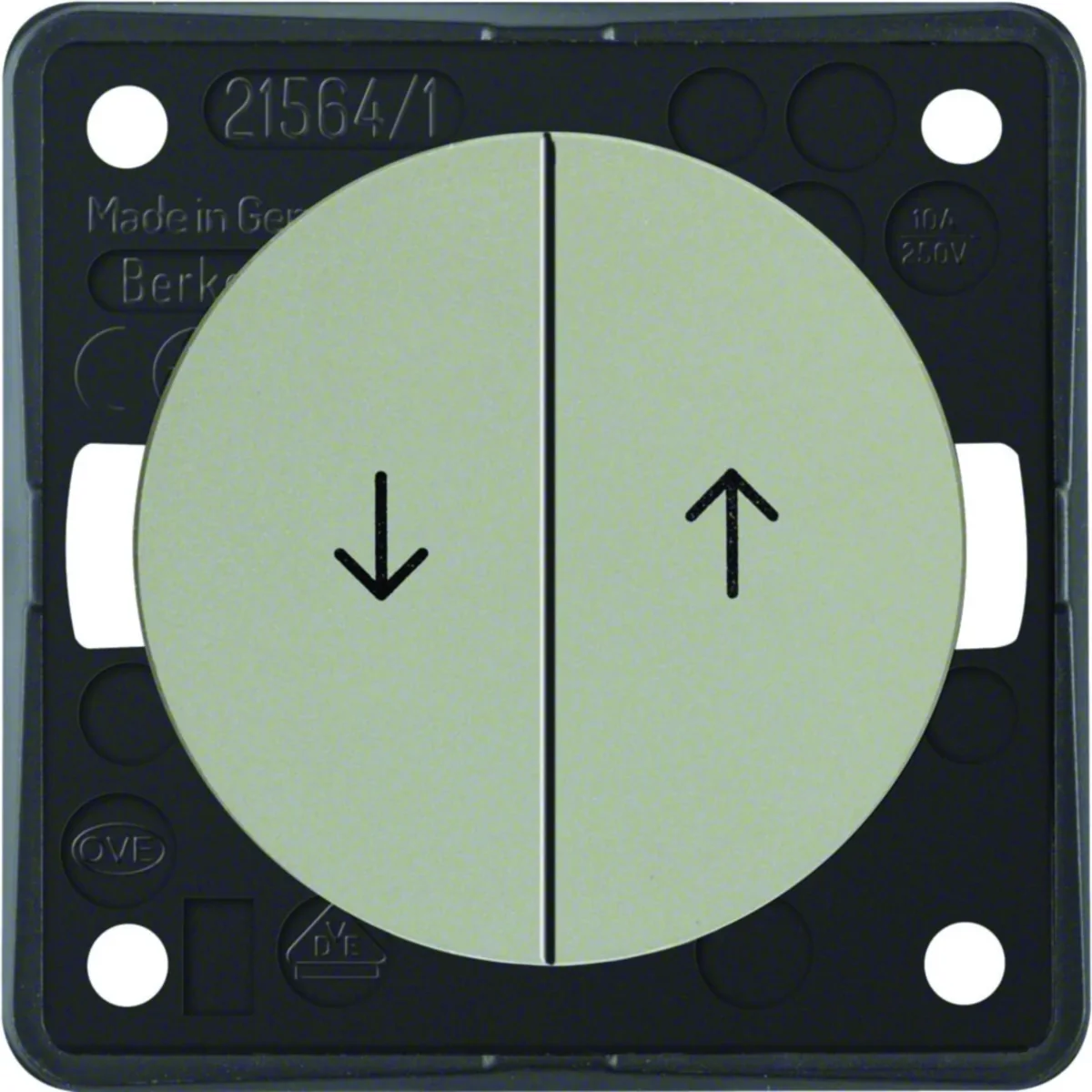

Multi-button shutter switchfrom the Integro Flow/Pure series, from Berker. Product part number is 936532524.
- With "arrow" imprint.
- With electric lock.
- Z screw terminals.
Technical data
-
Depth [mm]24.1
-
ColorSilver
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeRecessed Surface-mounted
-
Height [mm]55.5
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeRound
-
OverprintArrows
-
Rated current [A]10
-
FamilyINTEGRO FLOW INTEGRA PURE
-
Width [mm]55.5
-
VersionSingle
-
Surface protectionvarnishing
-
Accurate colorstainless steel
-
Blockadeelectric
-
VariantTwo-position normally open
-
Exact materialThermoplastic
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Number of poles2
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
ColourStainless steel
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Number of modules (module system)0
-
Model1-pole push button
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodBuilt-in installation
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Type of fasteningMounting with screw
-
RAL-number (similar)9022
-
Label space/information surfaceNo
-
Rated current10 A
-
Number of buttons2
-
Min. depth of built-in installation box13 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 100 pcs. | 2400 pcs. |
| Weight (kg) | 0,035 | 0,400 | 4,380 | 128,120 |
| Width (m) | 0,056 | 0,135 | 0,315 | 0,800 |
| Length (m) | 0,024 | 0,065 | 0,215 | 1,050 |
| Depth (m) | 0,056 | 0,205 | 0,360 | 1,200 |
