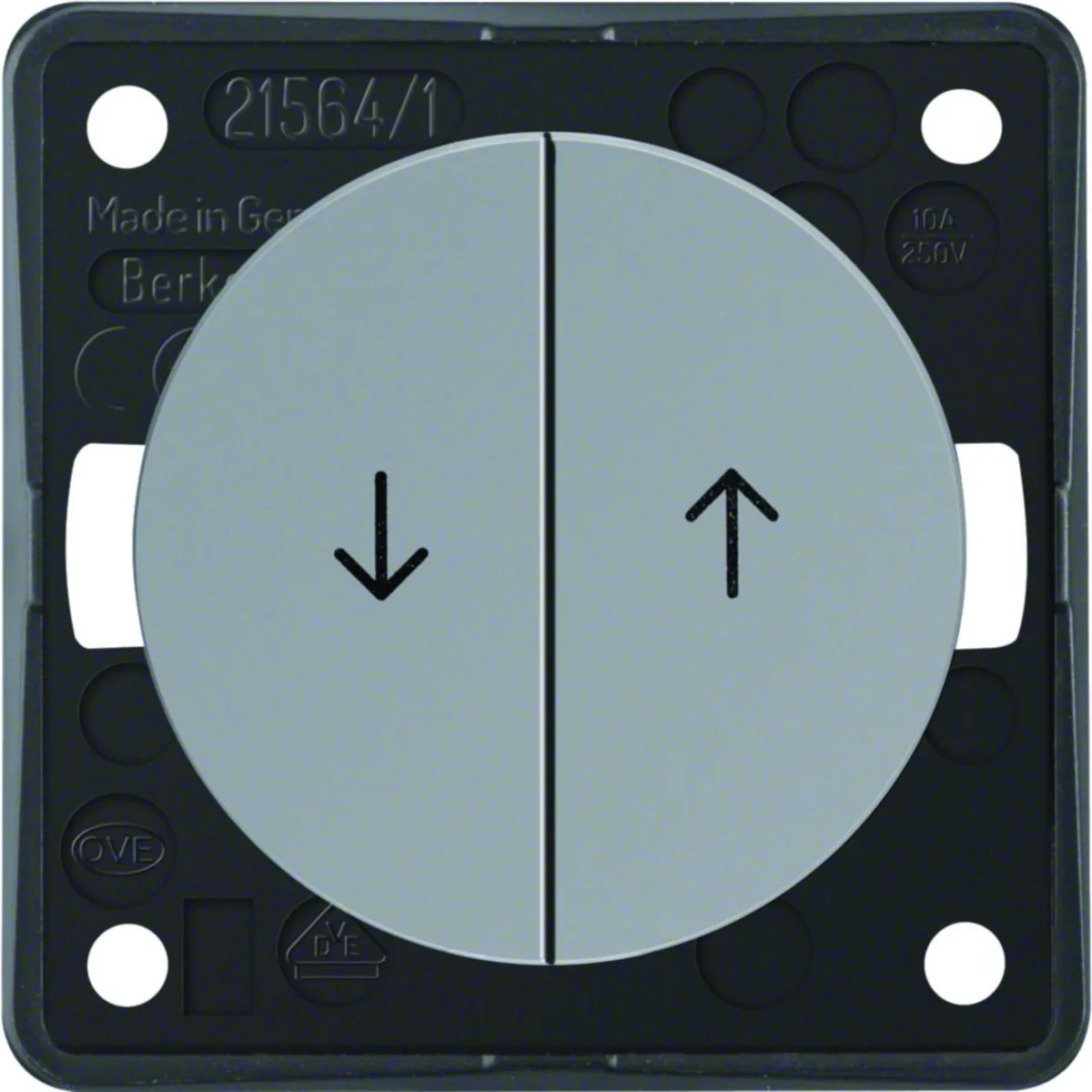

INTEGRO FLOW/PURE Multi-button shutter switch with "arrow" print, glossy gray 936532507

local index:
MMO022BERK
Catalog No:
936532507
EAN code:
4011334337256
Manufacturer: BERKER
Number of keys: 2
Color: Gray
Shape: Round
Price:
18,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Multi-button shutter switchfrom the Integro Flow/Pure series, from the Berker manufacturer. Product part number is 936532507.

  • With "arrow" imprint.
  • With electric lock.
  • Z screw terminals.

Technical data

  • Number of keys
    2
  • Shape
    Round
  • Overprint
    Arrows
  • Rated current [A]
    10
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Type
    Recessed Surface-mounted
  • Surface finish
    Shiny
  • Blockade
    electric
  • Variant
    Two-position normally open
  • Exact material
    Thermoplastic
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Version
    Single
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Number of poles
    2
  • Blokada elektryczna i mechaniczna
    Yes
  • Electronic controllable
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Colour
    Grey
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Number of modules (module system)
    0
  • Model
    1-pole push button
  • Method of operation
    Rocker
  • Mechanical controllable
    Yes
  • Mounting method
    Built-in installation
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    7038
  • Label space/information surface
    No
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    13 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 2400 pcs.
Weight (kg) 0,034 0,400 4,380 128,120
Width (m) 0,056 0,140 0,315 0,800
Length (m) 0,024 0,065 0,215 1,050
Depth (m) 0,056 0,210 0,360 1,200
