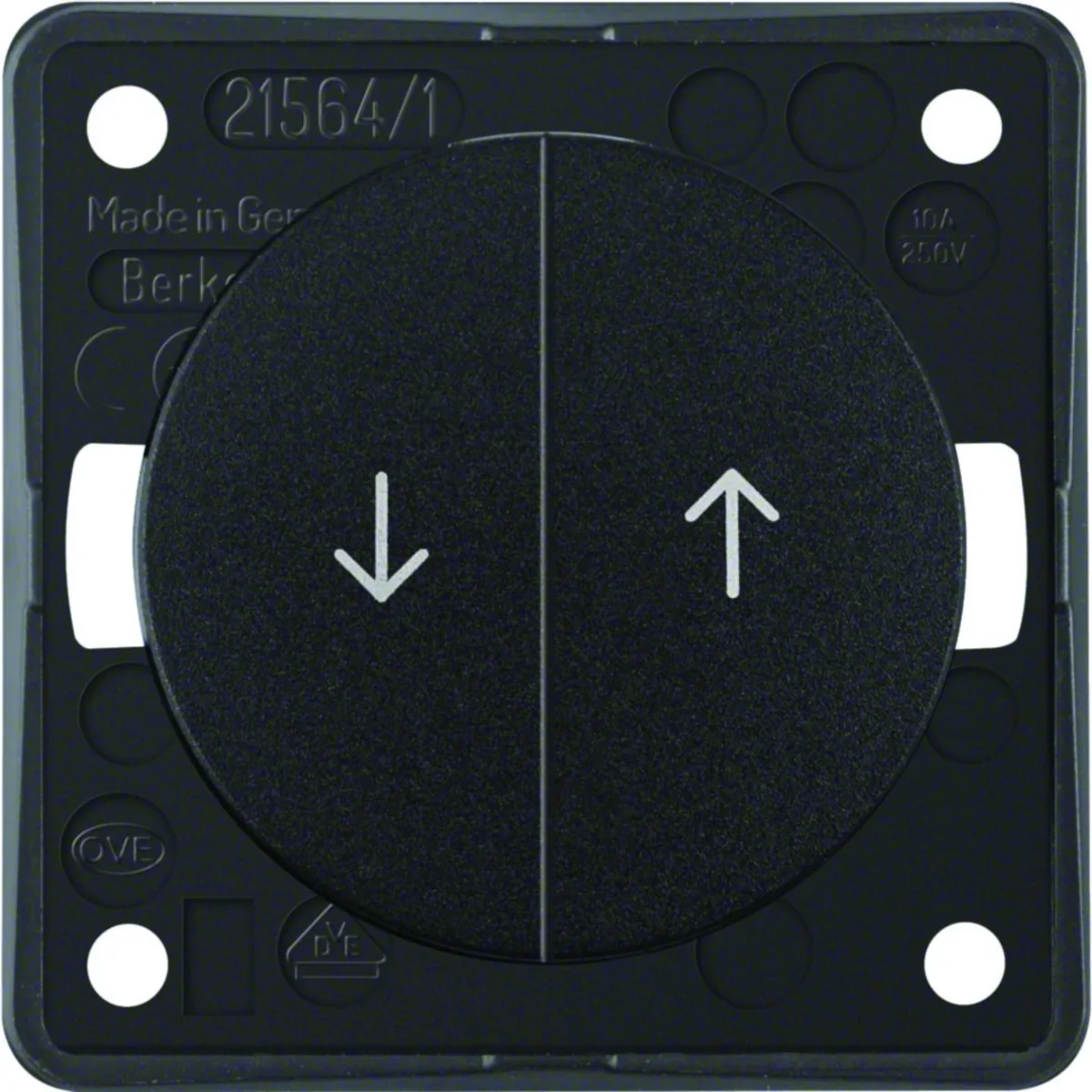

INTEGRO FLOW/PURE Multi-button shutter switch with "arrow" print, glossy black 936532510

Índice local:
MMO024BERK
Número de catálogo:
936532510
Código EAN:
4011334337287
Fabricante: BERKER
Number of keys: 2
Color: Black
Shape: Round
Precio:
18,22 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 10 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

Multi-button shutter switchfrom the Integro Flow/Pure series, from Berker. Product part number is 936532510.

  • With "arrow" imprint.
  • With electric lock.
  • Z screw terminals.

Datos técnicos

  • Number of keys
    2
  • Shape
    Round
  • Overprint
    Arrows
  • Rated current [A]
    10
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Type
    Recessed Surface-mounted
  • Surface finish
    Shiny
  • Blockade
    electric
  • Variant
    Two-position normally open
  • Exact material
    Thermoplastic
  • Color
    Black
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Version
    Single
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Otros datos técnicos

  • Assembly arrangement
    Basic element with central cover plate
  • Number of poles
    2
  • Blokada elektryczna i mechaniczna
    Yes
  • Electronic controllable
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Colour
    Black
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Number of modules (module system)
    0
  • Model
    1-pole push button
  • Method of operation
    Rocker
  • Mechanical controllable
    Yes
  • Mounting method
    Built-in installation
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    9005
  • Label space/information surface
    No
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    13 mm

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 1 uds. 10 uds. 100 uds. 3200 uds.
Peso (kg) 0,035 0,395 4,390 165,480
Ancho (m) 0,056 0,135 0,300 0,800
Longitud (m) 0,024 0,065 0,225 1,050
Profundidad (m) 0,056 0,205 0,400 1,200
