INTEGRO FLOW/PURE Multi-button shutter switch with "arrow" imprint, snow-white gloss 936532509

Name: INTEGRO FLOW/PURE Multi-button shutter switch with \"arrow\" imprint, snow-white gloss
Brand: BERKER
SKU: MMO023BERK
Price: 18.22 PLN

Index local:

MMO023BERK

Numéro de catalogue:

936532509

Code EAN:

4011334337263

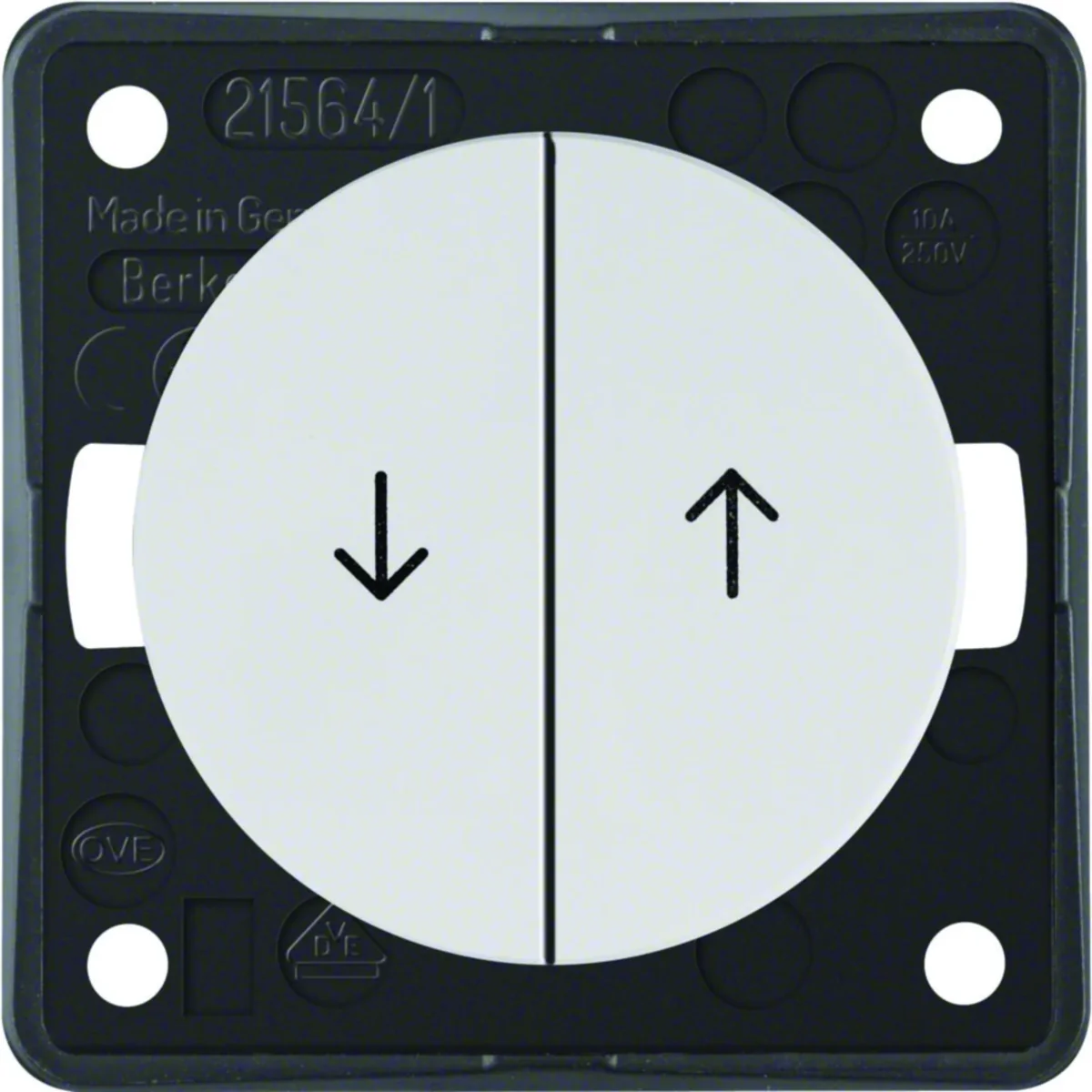

INTEGRO FLOW/PURE Multi-button shutter switch with "arrow" imprint, snow-white gloss

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Number of keys: 2

Color: White

Shape: Round

Voir la description complète

Prix:

18,22 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 10 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Multi-button shutter switchfrom the Integro Flow/Pure series, from the Berker manufacturer. Product part number is 936532509.

With "arrow" imprint.
With electric lock.
Z screw terminals.

Données techniques

Number of keys

2
Shape

Round
Overprint

Arrows
Rated current [A]

10
Family

INTEGRO FLOW INTEGRA PURE
Type

Recessed Surface-mounted
Surface finish

Shiny
Blockade

electric
Variant

Two-position normally open
Exact material

Thermoplastic

Color

White
Material

Plastic
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Version

Single
Backlight

NO
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Autres données techniques

Assembly arrangement

Basic element with central cover plate
Number of poles

2
Blokada elektryczna i mechaniczna

Yes
Electronic controllable

No
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
Colour

White
Transparent

No
Suitable for degree of protection (IP)

IP20
Nominal voltage

250 V
Number of modules (module system)

0

Model

1-pole push button
Method of operation

Rocker
Mechanical controllable

Yes
Mounting method

Built-in installation
Material quality

Thermoplastic
Surface protection

Untreated
Type of fastening

Mounting with screw
RAL-number (similar)

9010
Label space/information surface

No
Rated current

10 A
Number of buttons

2
Min. depth of built-in installation box

13 mm

Détails du fabricant

Producteur

BERKER POLSKA SP. Z O.O.
Adresse

62-035 UL. ŚREDZKA 19
E-mail

renata.rozwadowska@berker.pl
Numéro identifiant TVA

7781027605

Emballage en vrac

Une sorte de paquet		Karton	Pakiet	Paleta
Quantité	1 pcs.	10 pcs.	100 pcs.	2400 pcs.
poids (kg)	0,035	0,400	4,380	128,120
Largeur (m)	0,056	0,140	0,315	0,800
Longueur (m)	0,024	0,065	0,215	1,050
Profondeur (m)	0,056	0,205	0,365	1,200
