INTEGRO FLOW/PURE Illuminated push-button switch with red lens, brown matt 937722501

Name: INTEGRO FLOW/PURE Illuminated push-button switch with red lens, brown matt
Brand: BERKER
SKU: MMZ052BERK
Price: 32.69 PLN

local index:

MMZ052BERK

Catalog No:

937722501

EAN code:

4011334240273

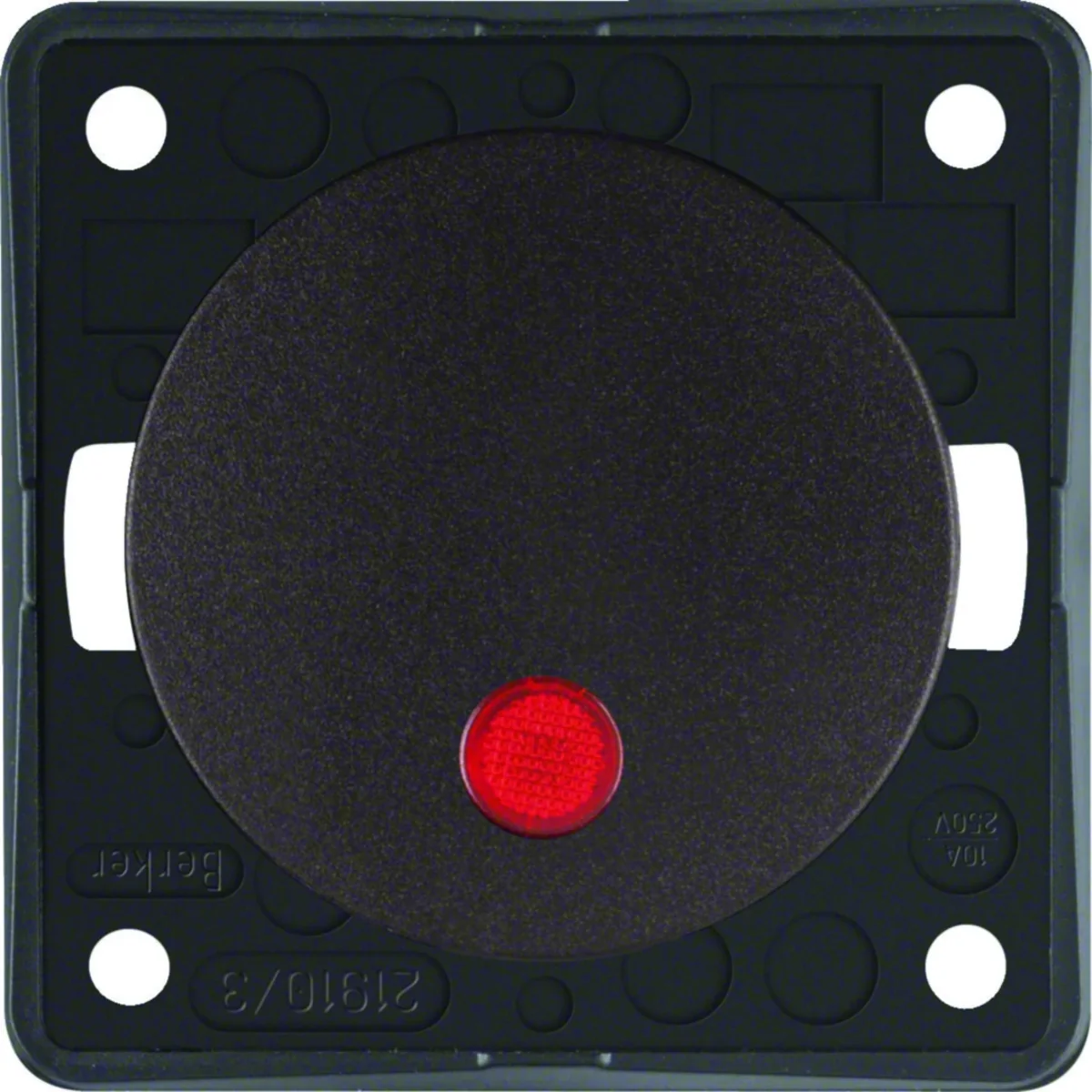

INTEGRO FLOW/PURE Illuminated push-button switch with red lens, brown matt

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 24.1

Number of keys: 1

Color: Brown

See full description

Price:

32,69 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Illuminated push-button switch with red lens, Berker Integro Flow/Pure series, from Berker manufacturer. Number product catalog is 937722501. Brown.

FEATURES

With screw terminals.< /li>
For backlight connection and backlight control connection.
With built-in fluorescent lamp.
Glow tube current: 0.9mA.
Instructions: When using several glow plugs, the lamp current may cause the relay/pulse switch to malfunction. Solution: Run a neutral wire or connect a 230V capacitor in parallel to the coil (1 µF for every 10mA of fluorescent lamp current).

< h3>SERIES DESCRIPTION

Berker Integro Flow with its minimalist design, quick and easy installation makes the series an ideal solution for use in kitchen furniture, in the sanitary industry and everywhere where compact design and versatile functionality are required.

Technical data

Depth [mm]

24.1
Color

Brown
Material

Plastic
Rated voltage [V]

230
Type

Short
Level of security

IP44
Type

Flush-mounted
Height [mm]

55.5
Backlight

Yes
Variant

Ordinary
Exact material

Thermoplastic
Backlight color

Red

Number of keys

1
Shape

Round
Installation

Flush-mounted
Rated current [A]

10
Family

INTEGRO FLOW INTEGRA PURE
Width [mm]

55.5
Version

Confident
Surface finish

matte
Terminal type

Threaded
For the frame system

Yes
Backlight type

Jaleniówka
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Method of operation

Rocker
Number of modules (module system)

0
Nominal voltage

250 V
With lighting

Yes
Feedback-signal contact

No
Type of fastening

Screw mounting
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
Transparent

No
Imprint

None
Device width

55.5 mm
Device depth

24.1 mm

Model

Single push button
Number of rockers

1
Number of poles

1
Rated current

10 A
With signal lamp

No
Mounting method

Built-in installation
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
RAL-number (similar)

8017
Label space/information surface

No
Suitable for degree of protection (IP)

IP44
Device height

55.5 mm
Min. depth of built-in installation box

13 mm

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	10 pcs.	5000 pcs.
Weight (kg)	0,033	0,400	-
Width (m)	0,056	0,130	-
Length (m)	0,024	0,060	-
Depth (m)	0,056	0,200	-
