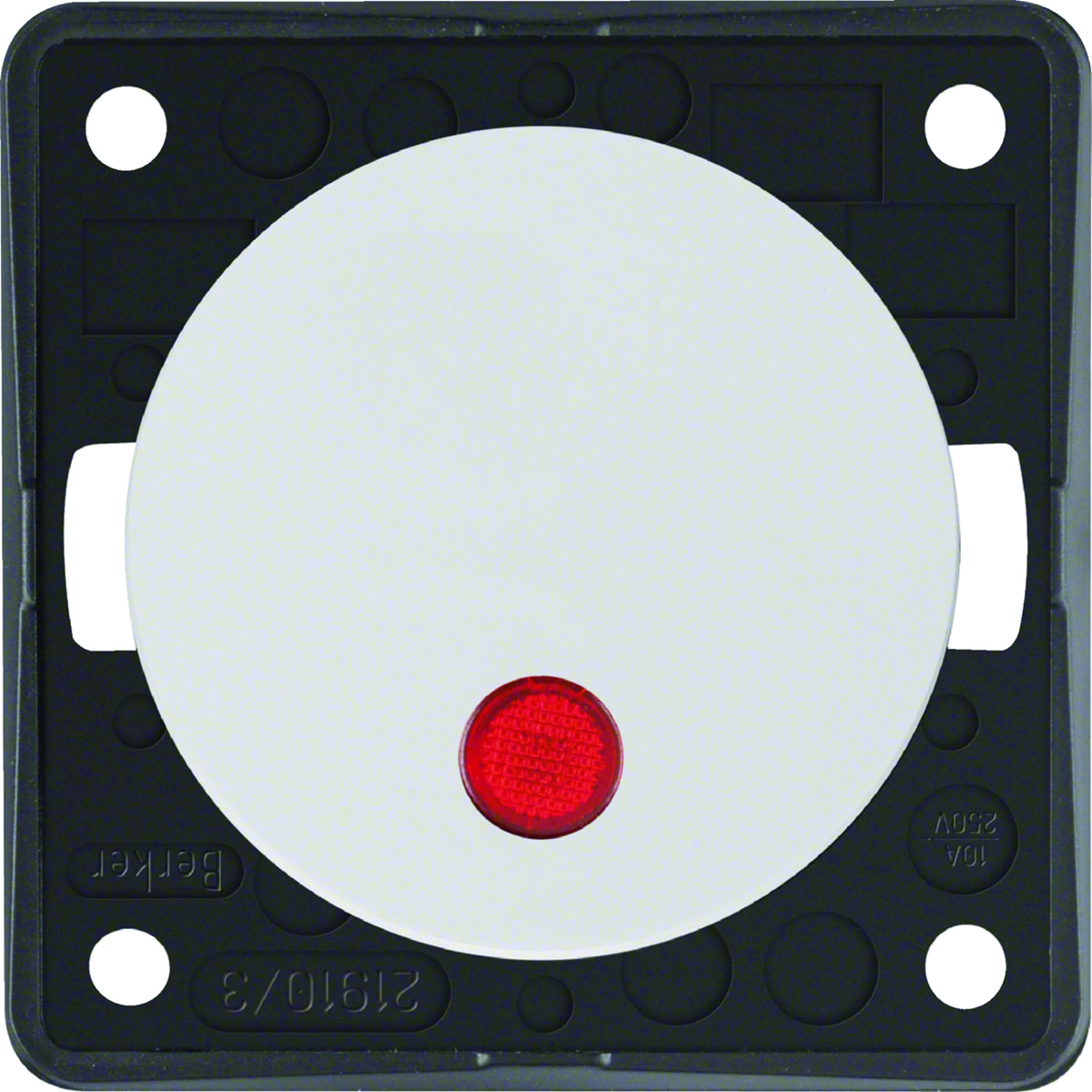

INTEGRO FLOW/PURE Illuminated push-button switch with a red lens, snow-white gloss 937722509

local index:
MMZ055BERK
Catalog No:
937722509
EAN code:
4011334240303
Manufacturer: BERKER
Depth [mm]: 24.1
Number of keys: 1
Color: White
Price:
32,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Illuminated push-button switch with red lens, Berker Integro Flow/Pure series, from Berker manufacturer. Number product catalog is 937722509. In white.



FEATURES

  • With screw terminals.< /li>
  • For backlight connection and backlight control connection.
  • With built-in fluorescent lamp.
  • Glow tube current: 0.9mA.
  • Instructions: When using several glow plugs, the lamp current may cause the relay/pulse switch to malfunction. Solution: Run a neutral wire or connect a 230V capacitor in parallel to the coil (1 µF for every 10mA of fluorescent lamp current).



< h3>SERIES DESCRIPTION

Berker Integro Flow with its minimalist design, quick and easy installation makes the series an ideal solution for use in kitchen furniture, in the sanitary industry and everywhere  where compact design and versatile functionality are required.

Technical data

  • Depth [mm]
    24.1
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    55.5
  • Backlight
    Yes
  • Variant
    Ordinary
  • Exact material
    Thermoplastic
  • Backlight color
    Red
  • Number of keys
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Width [mm]
    55.5
  • Version
    Confident
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Backlight type
    Jaleniówka
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Nominal voltage
    250 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP44
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    13 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Imprint
    None
  • Device width
    55.5 mm
  • Device depth
    24.1 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 2400 pcs.
Weight (kg) 0,033 0,385 4,230 124,520
Width (m) 0,056 0,140 0,315 0,800
Length (m) 0,024 0,065 0,215 1,050
Depth (m) 0,056 0,210 0,360 1,200
