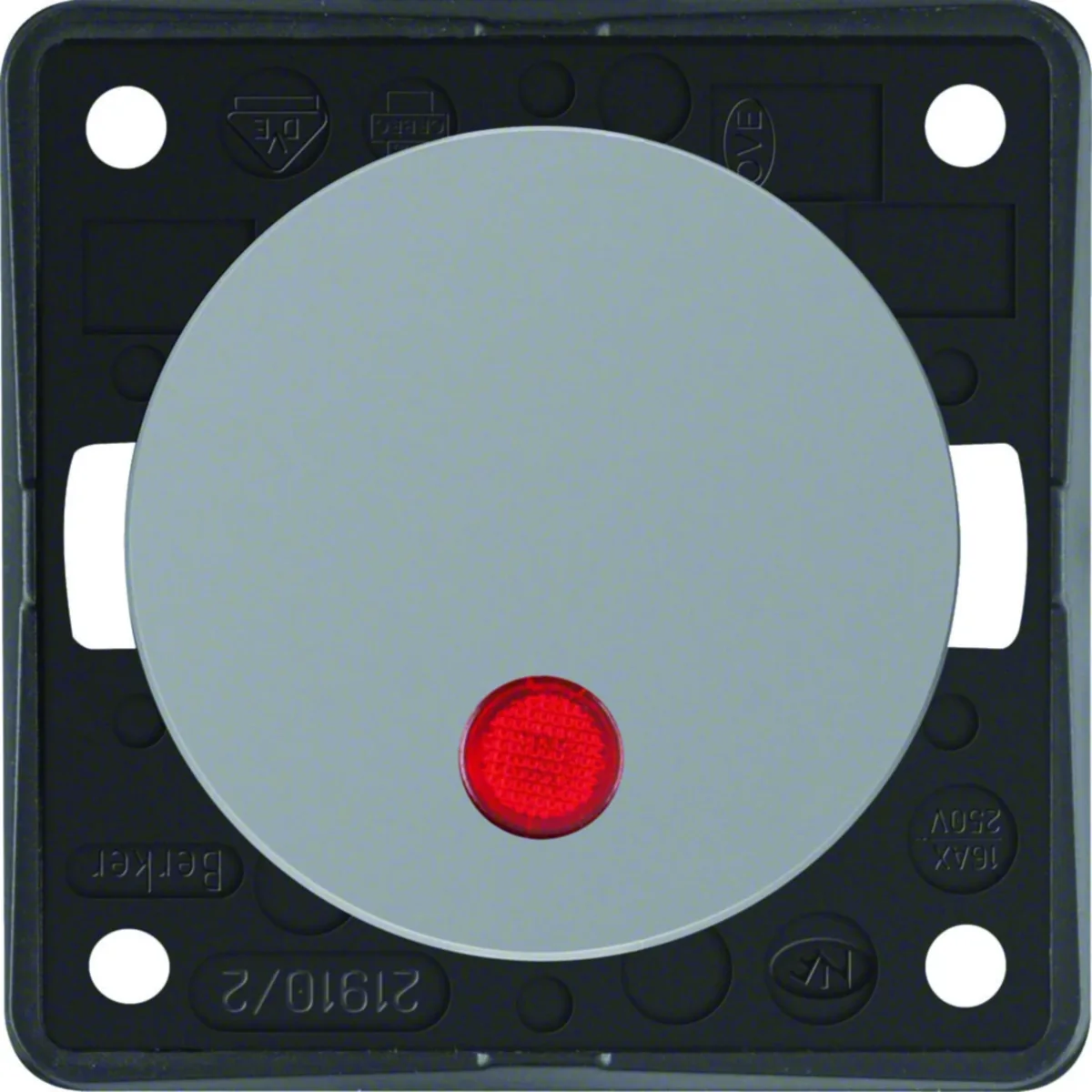

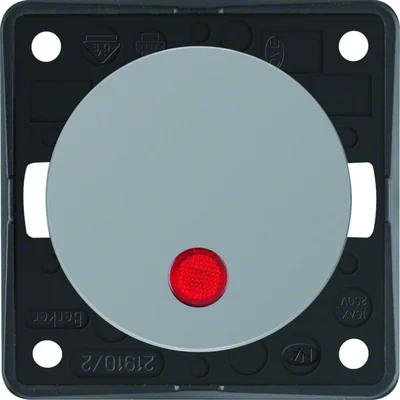

INTEGRO FLOW/PURE Control switch with red lens 2-pole glossy gray 937522507
local index:
MMD012BERK
Catalog No:
937522507
EAN code:
4011334240228
Price:
32,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Double-pole switch from the Integro Flow/Pure series, from Berker. The product part number is 937522507.
FEATURES
- Red lens control.
- Single key.
- Glow tube current: 0.9 mA.
- Screw connection.
- With cable entry from above and bottom.
- With built-in fluorescent lamp.
- For backlight connection and backlight control connection.
Technical data
-
Depth [mm]25
-
ColorGray
-
MaterialPlastic
-
Rated current [A]10
-
FamilyINTEGRO FLOW INTEGRA PURE
-
Width [mm]55.5
-
Height [mm]55.5
-
BacklightYes
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeRound
-
Rated voltage [V]230
-
TypeBipolar
-
Level of securityIP44
-
TypeFlush-mounted
-
Surface finishShiny
-
Terminal typeThreaded
-
Exact materialThermoplastic
Other technical data
-
Wiring system2-pole switch
-
Assembly arrangementBasic element with central cover plate
-
Number of rockers1
-
Type of fasteningScrew mounting
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)7038
-
Suitable for degree of protection (IP)IP44
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height55.5 mm
-
Built-in depth10 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Mounting methodBuilt-in installation
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourGrey
-
Label space/information surfaceYes
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typeScrewed terminal
-
Device width55.5 mm
-
Device depth25 mm
-
Min. depth of built-in installation box13 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 120 pcs. | 3840 pcs. |
| Weight (kg) | 0,033 | 0,390 | 5,120 | 188,840 |
| Width (m) | 0,056 | 0,140 | 0,300 | 0,800 |
| Length (m) | 0,024 | 0,065 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,205 | 0,400 | 1,200 |
