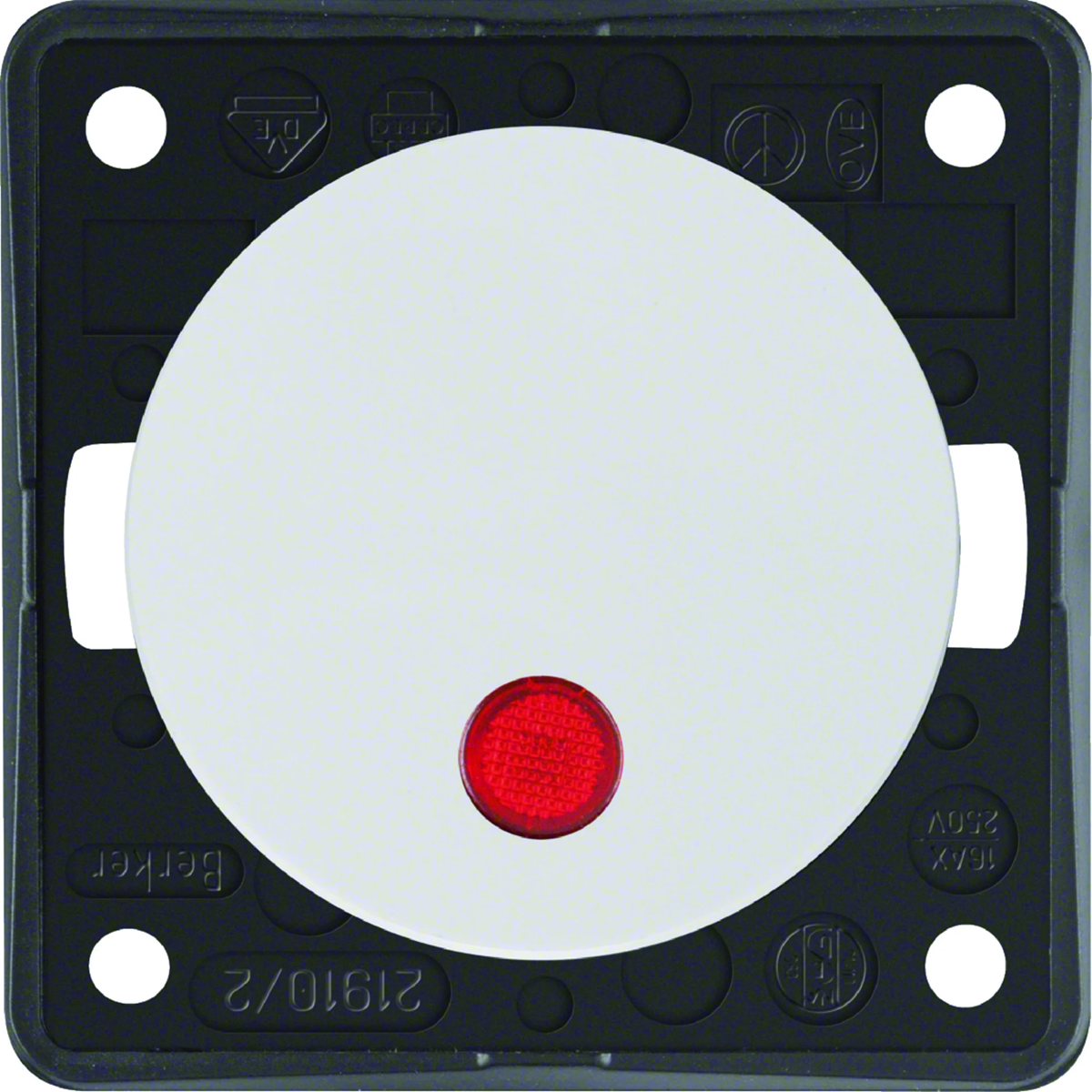

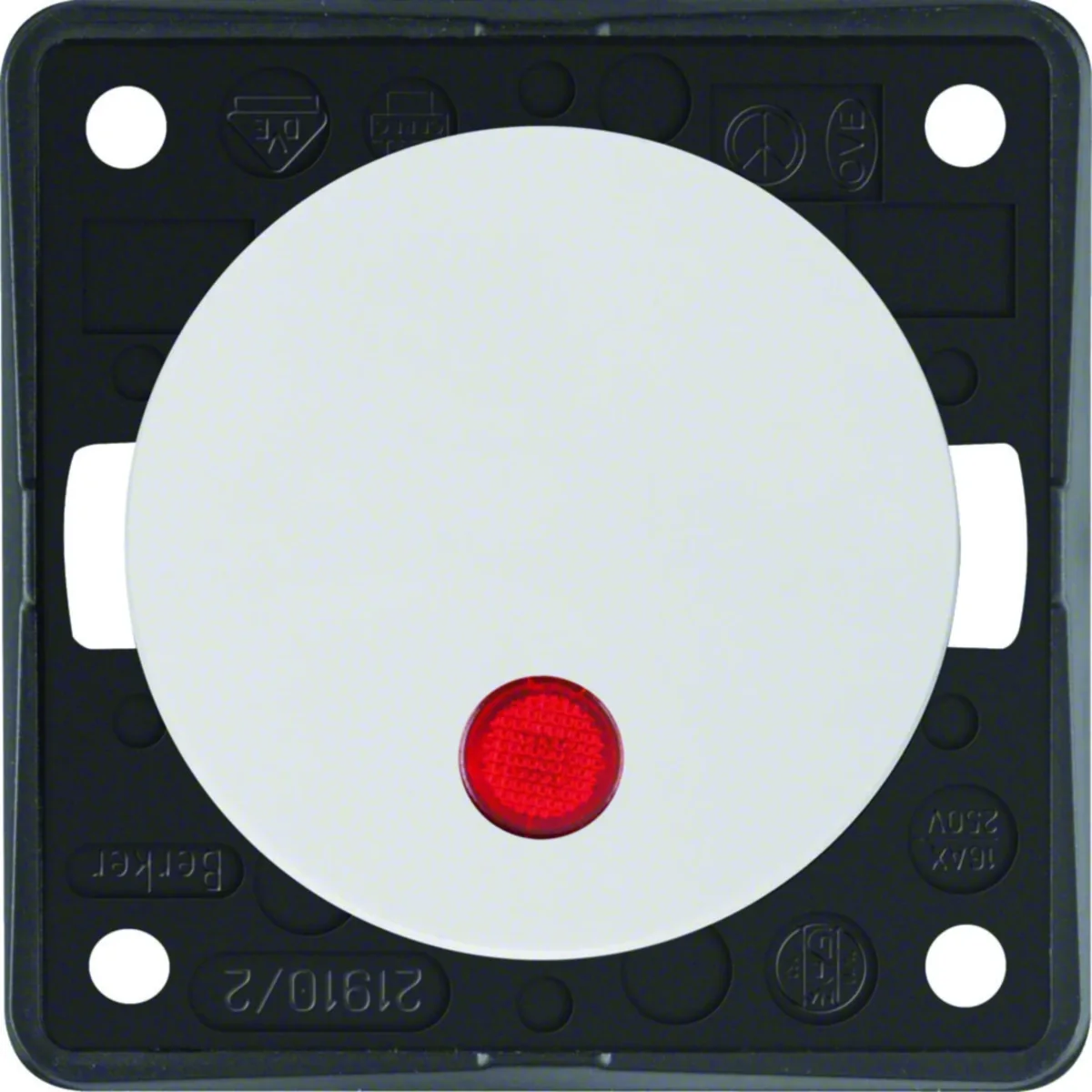

INTEGRO FLOW/PURE Control switch with red lens 2-pole gloss snow white 937522509

local index:
MMD013BERK
Catalog No:
937522509
EAN code:
4011334240235
Manufacturer: BERKER
Depth [mm]: 25
Number of keys: 1
Color: White
Price:
32,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double-pole switch from the Integro Flow/Pure series, from Berker. The product part number is 937522509.



FEATURES

  • Red lens control.
  • Single key.
  • Glow tube current: 0.9 mA.
  • Screw connection.
  • With cable entry from above and bottom.
  • With built-in fluorescent lamp.
  • For backlight connection and backlight control connection.

Technical data

  • Depth [mm]
    25
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    INTEGRO FLOW INTEGRA PURE
  • Width [mm]
    55.5
  • Height [mm]
    55.5
  • Surface finish
    Shiny
  • Backlight
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Round
  • Rated voltage [V]
    230
  • Type
    Bipolar
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    Snow white
  • Terminal type
    Threaded
  • Exact material
    Thermoplastic

Other technical data

  • Wiring system
    2-pole switch
  • Assembly arrangement
    Basic element with central cover plate
  • Push button switch
    No
  • Mounting method
    Built-in installation
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    Yes
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Device width
    55.5 mm
  • Device depth
    25 mm
  • Min. depth of built-in installation box
    13 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Screw mounting
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Suitable for degree of protection (IP)
    IP44
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    55.5 mm
  • Built-in depth
    10 mm

Bulk packaging

A kind of package Karton Pakiet
Quantity 1 pcs. 10 pcs. 100 pcs.
Weight (kg) 0,033 0,390 3,900
Width (m) 0,056 0,130 -
Length (m) 0,024 0,060 -
Depth (m) 0,056 0,200 -
