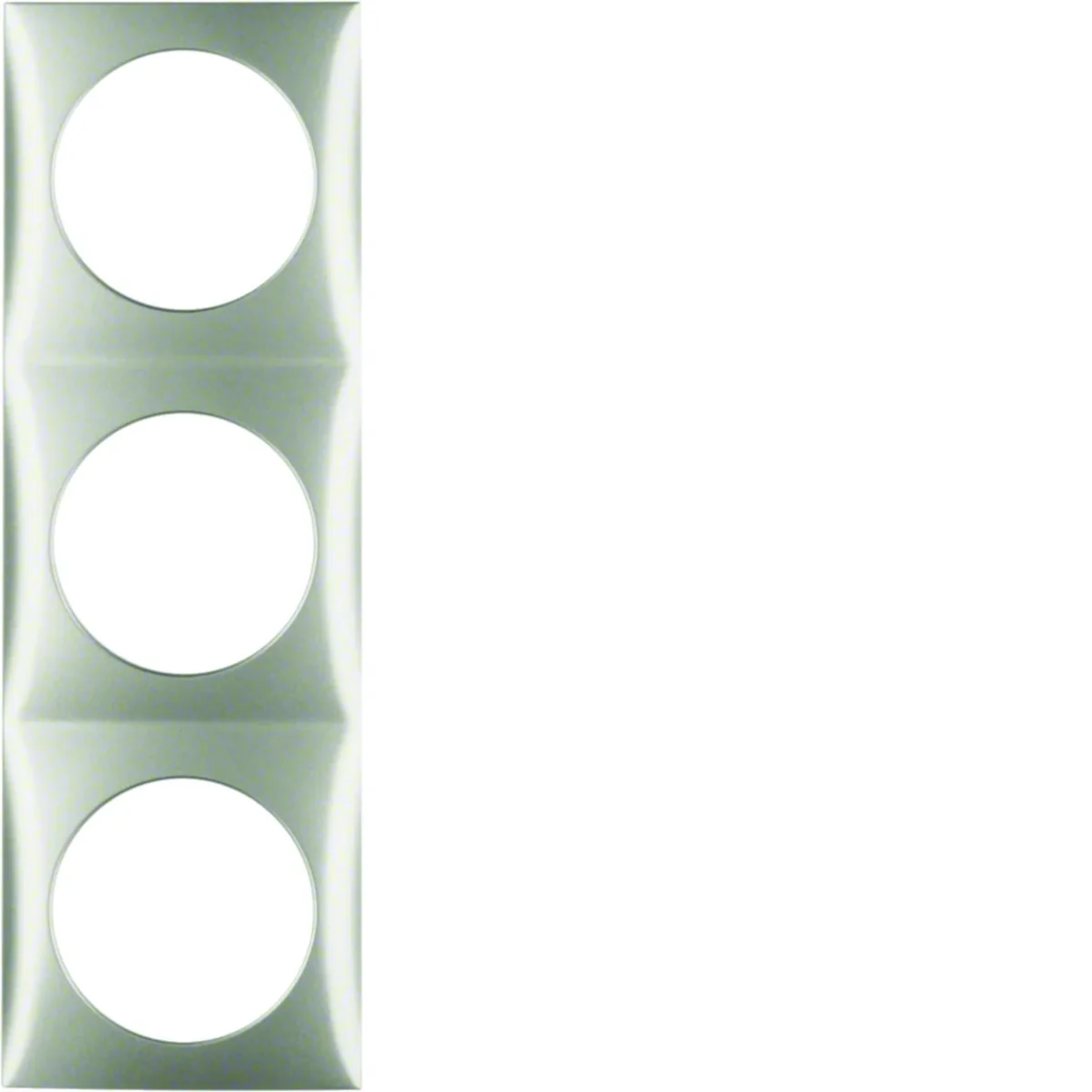

INTEGRO FLOW Triple frame made of lacquered stainless steel 918192524
local index:
MAR476BERK
Catalog No:
918192524
EAN code:
4011334334590
Price:
25,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3-fold frame from the Integro Flow series from the manufacturer Berker. The product catalog number is 918192524.
SERIES DESCRIPTION
Berker Integro Flow ideally suited to places where compact construction and comprehensive functionality are necessary.
Technical data
-
Depth [mm]9
-
ColorSilver
-
MaterialPlastic
-
FamilyINTEGRA FLOW
-
Width [mm]178.5
-
Surface protectionvarnishing
-
Accurate colorstainless steel
-
For modular equipmentNot applicable
-
The shape of the matching accessoryRound
-
Number of modules3
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]59.5
-
Surface finishmatte
-
Mounting directionUniversal
-
Exact materialThermoplastic
-
PKWIU27.12.40.0
Other technical data
-
Number of units3
-
Number of units horizontal3
-
Number of modules horizontal (module system)0
-
Liczba łączników3
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9022
-
With hinged lidNo
-
Impact strengthIK02
-
Width178.5 mm
-
Depth9 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical3
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourStainless steel
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height59.5 mm
-
Diameter bore hole (opening)42.5 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 2 pcs. | 160 pcs. | 5120 pcs. |
| Weight (kg) | 0,021 | 0,045 | 4,040 | 152,280 |
| Width (m) | 0,178 | 0,070 | 0,300 | 0,800 |
| Length (m) | 0,009 | 0,025 | 0,225 | 1,050 |
| Depth (m) | 0,060 | 0,190 | 0,400 | 1,200 |
