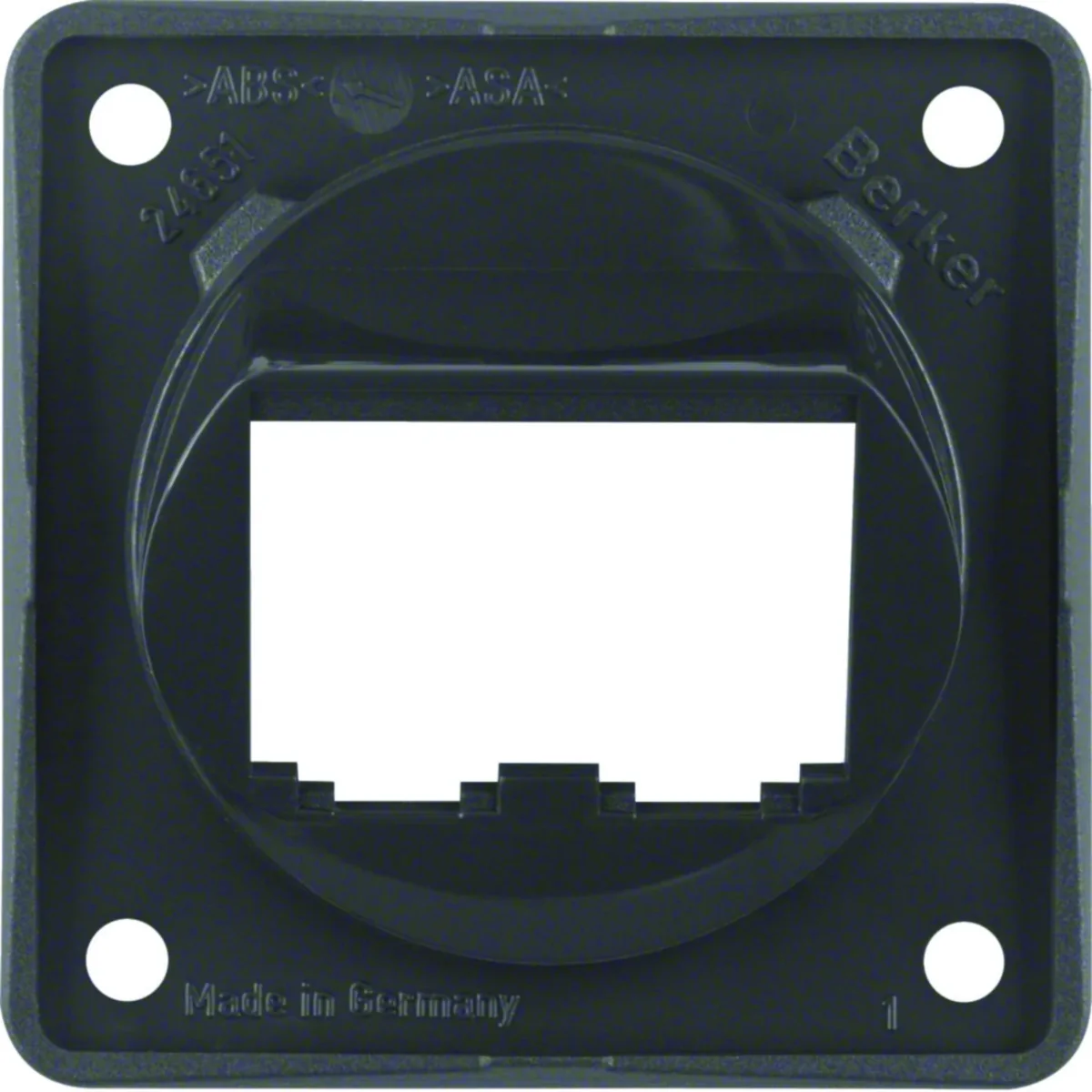

INTEGRO FLOW Support plate 2-gang for BTR-/E-DAT modules anthracite glossy 845582505

local index:
MAP358BERK
Catalog No:
845582505
EAN code:
4011334319061
Manufacturer: BERKER
Color: Graphite
Shape: Square
Material: Plastic
Price:
8,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Carrier plate double for BTR-/E-DAT modules, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for in kitchen furniture, in the sanitary industry and wherever compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats.

Connections:

  • with an exit angle of 25° ,
  • for 130898-00-I BTR blanking modules,
  • for 130898-01-I BTR F/F Koax modules,
  • for 130898-I Koax modules 02-I BTR with F/IEC socket,
  • for 15091071-I BTR Op-Dat LC modules,
  • for 15091070-I BTR Op-Dat LC modules,
  • for Koax 130898-03-I BTR modules with F/IEC plug,
  • for 130908-I BTR UAE cat. 5e 8(8) modules,
  • for feed-through connectors 417446 Dätwyler Unilan RJ45,
  • for 130909-I BTR UAE cat. 6 8(8),
  • for 1309A0-I BTR E-Dat modules with cat. 8(8) connector 6,
  • for socket modules 185750 Dätwyler Unilan MU 1/8 cat.6,
  • for modules 130910-I BTR E-Dat cat.6a 8(8),
  • for 15091001-I BTR Op-Dat ST modules,
  • for 185700 Dätwyler Unilan MS 1/8 cat.6 socket modules.

Technical data

  • Color
    Graphite
  • Material
    Plastic
  • Family
    INTEGRA FLOW
  • Surface finish
    Shiny
  • For modular equipment
    Not applicable
  • Shape
    Square
  • Type
    To the internet socket
  • Level of security
    IP20
  • Accurate color
    Anthracite
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Basic element
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7021
  • Type of fastening
    Mounting with screw
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Modular Jack
  • With dust cover
    No
  • Outlet direction
    Inclined
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • Number of modules (module system)
    2
  • Suitable for number of connectors
    2
  • Luster terminal
    No
  • Device width
    55.5 mm
  • Device depth
    19.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 100 pcs. 100 pcs. 3200 pcs.
Weight (kg) 0,009 1,263 1,263 62,944
Width (m) 0,056 0,290 0,300 0,800
Length (m) 0,020 0,227 0,225 1,050
Depth (m) 0,056 0,390 0,400 1,200
