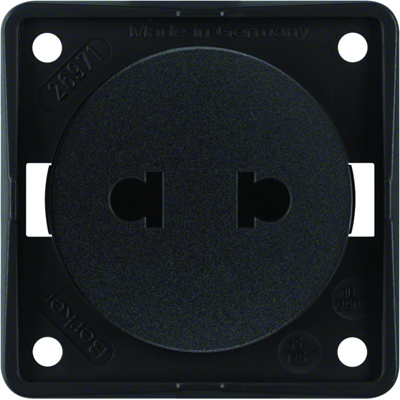

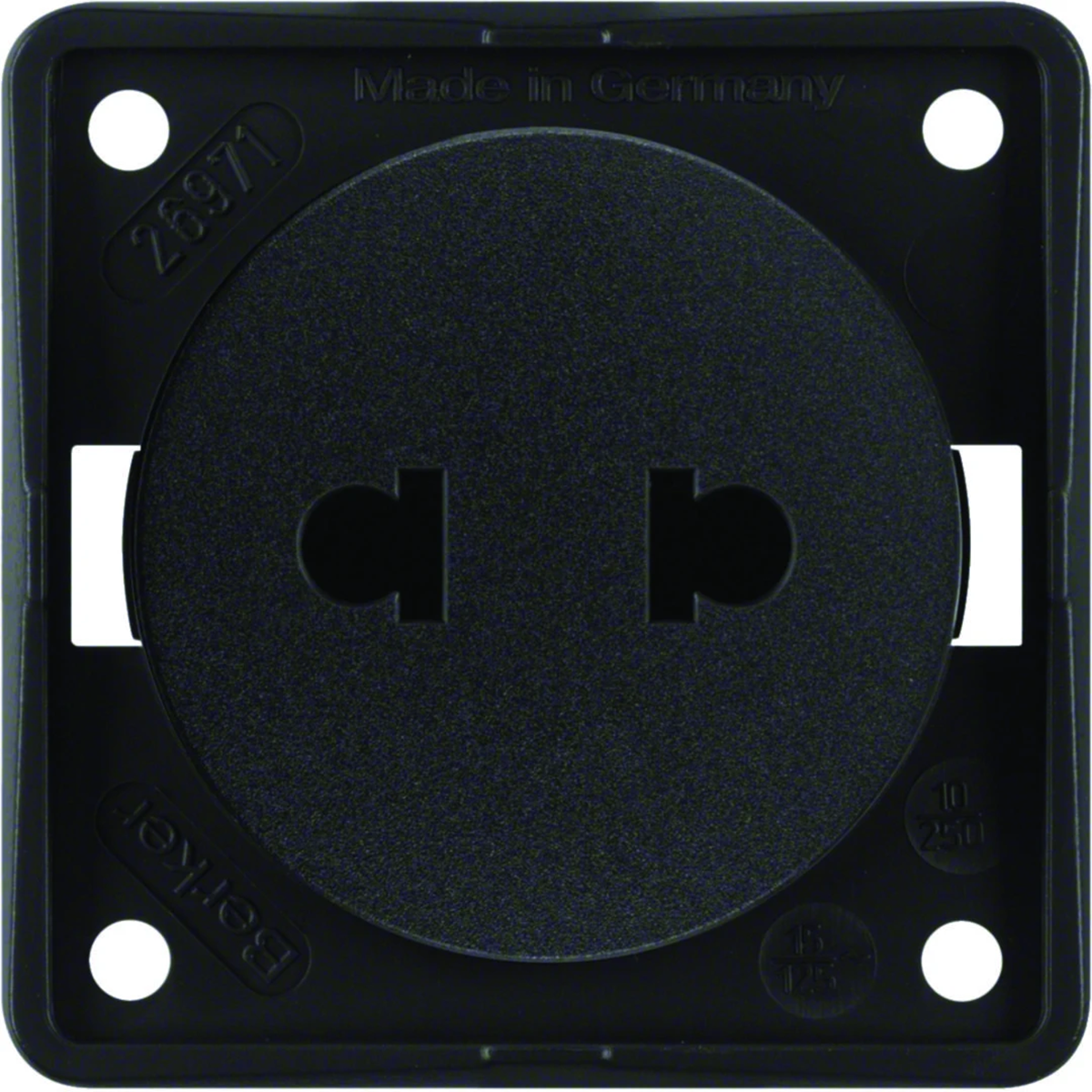

INTEGRO FLOW Socket without grounding "Euro-American Standard" matt black 962572503
Index local:
MEE250BERK
Numéro de catalogue:
962572503
Code EAN:
4011334335597
Prix:
65,92 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Données techniques
Détails du fabricant
Emballage en vrac
Fichiers à télécharger
Description du produit
Socket without grounding, "Euro-American Standard", from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.
Connection:
- with screw terminals,
Design:
- 2-pole.
Données techniques
-
Number of sockets1
-
ShapeRound
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyINTEGRA FLOW
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
BacklightNO
-
StandardEuropean American
-
On the DATA keyNO
-
Exact materialThermoplastic
-
ColorBlack
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundLack
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Autres données techniques
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of socket outlets switchable0
-
Imprint/indicationNone
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9005
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Type of fasteningMounting with screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With on/off switchNo
-
Nominal current10 A
-
Frequency50 ... 50 Hz
-
Impact strengthIK05
-
Device height55.5 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Google AssistantNo
-
For heavy conditions according to VDENo
-
Number of active contacts (flat)0
-
Number of modules (module system)1
-
Number of phases1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourBlack
-
Metallic colourNo
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Mounting methodOther
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
With loop through functionNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width55.5 mm
-
Min. depth of built-in installation box21 mm
-
Compatible with Amazon AlexaNo
-
IFTTT support availableNo
Détails du fabricant
-
ProducteurBerker GmbH & Co. KG.
-
AdresseDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Emballage en vrac
| Une sorte de paquet | Karton | Pakiet | Paleta |
| Quantité | 10 pcs. | 100 pcs. | 3200 pcs. |
| poids (kg) | 0,430 | 4,740 | 176,680 |
| Largeur (m) | 0,140 | 0,300 | 0,800 |
| Longueur (m) | 0,060 | 0,220 | 1,050 |
| Profondeur (m) | 0,200 | 0,400 | 1,200 |
