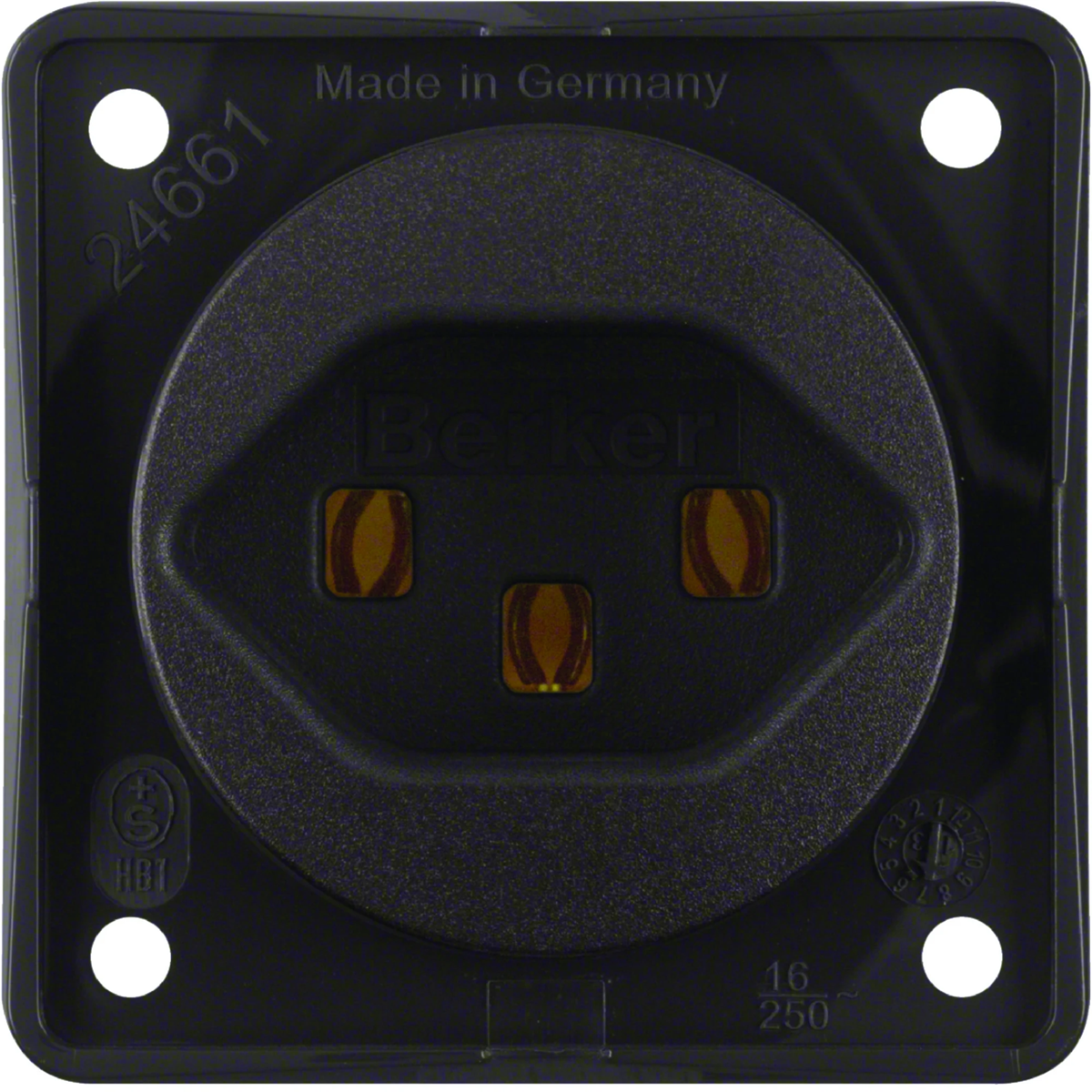

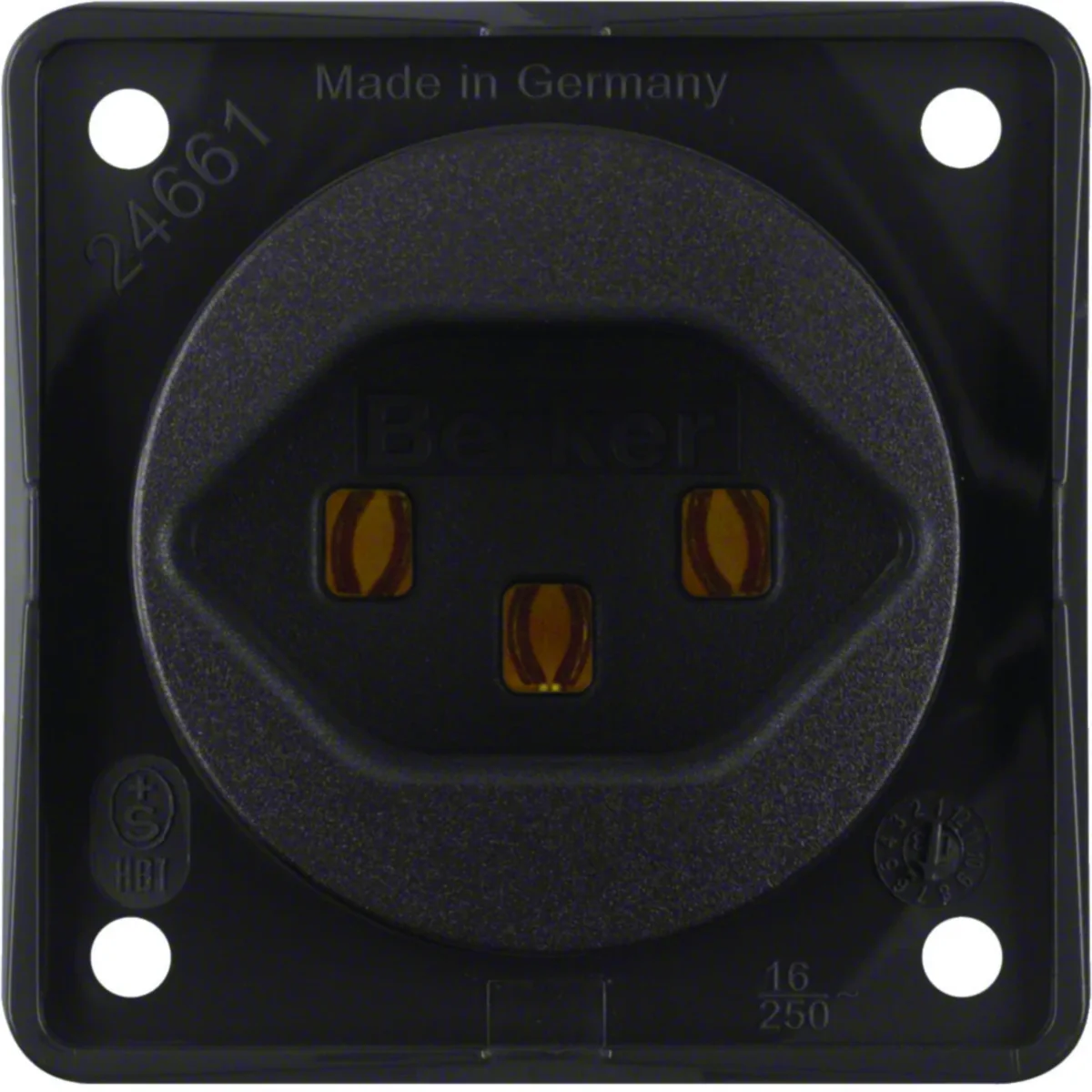

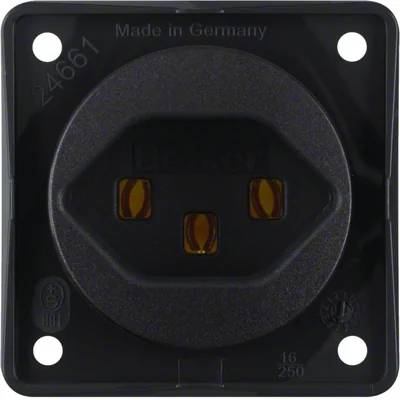

INTEGRO FLOW Socket with grounding "Switzerland" type 23 screw terminals brown matt 962592501
local index:
MEE253BERK
Catalog No:
962592501
EAN code:
4011334320401
Price:
13,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket with grounding, standard "Switzerland" type 23, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.
Connection:
- with screw terminals,
Design:
- 2-pole.
Technical data
-
Number of sockets1
-
ShapeRound
-
Fixingscrews
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyINTEGRA FLOW
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
BacklightNO
-
StandardSwiss
-
On the DATA keyNO
-
Exact materialThermoplastic
Other technical data
-
ModelSwiss norm type 23
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)8017
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width55.5 mm
-
Device depth36.4 mm
-
Protective contactYes
-
Number of active contacts (flat)2
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourBrown
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodBuilt-in installation
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 50 Hz
-
Impact strengthIK05
-
Device height55.5 mm
-
Min. depth of built-in installation box28 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 100 pcs. | 2400 pcs. |
| Weight (kg) | 0,040 | 0,460 | 5,040 | 143,960 |
| Width (m) | 0,056 | 0,135 | 0,300 | 0,800 |
| Length (m) | 0,036 | 0,060 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,200 | 0,400 | 1,200 |
