INTEGRO FLOW Socket with earthing "Switzerland" type 13 snow-white matt 962492502

Name: INTEGRO FLOW Socket with earthing \"Switzerland\" type 13 snow-white matt
Brand: BERKER
SKU: MEE237BERK
Price: 61.28 PLN

Lokaler Index:

MEE237BERK

Katalognummer:

962492502

EAN-Code:

4011334240754

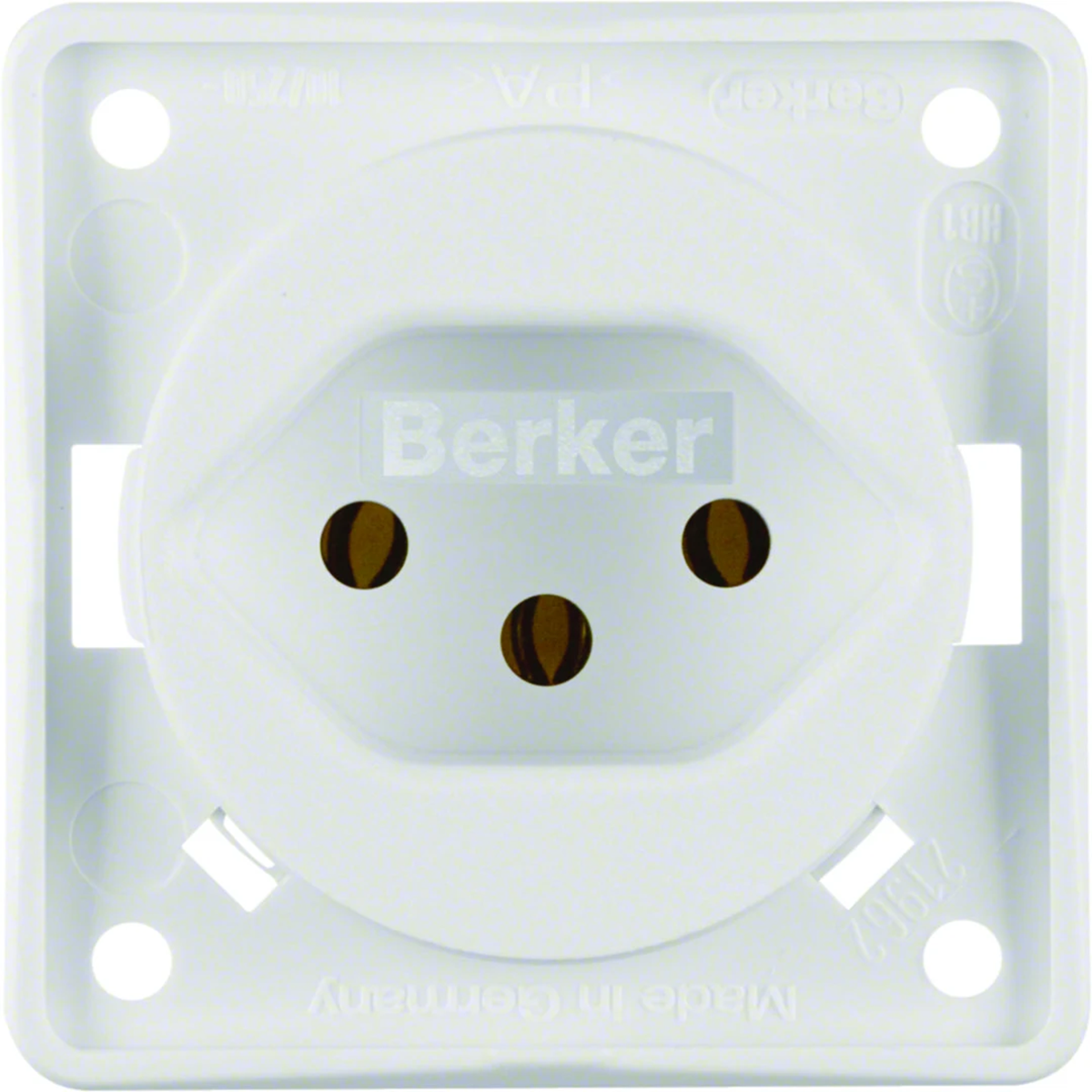

INTEGRO FLOW Socket with earthing "Switzerland" type 13 snow-white matt

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: BERKER

Number of sockets: 1

Color: White

Shape: Round

Siehe vollständige Beschreibung

Preis:

61,28 zł

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 4 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Socket with grounding, "Switzerland" type 13 standard, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connection:

with screw terminals,

Design:

2-pole,

Technische Daten

Number of sockets

1
Shape

Round
Installation

Flush-mounted
Rated current [A]

10
Family

INTEGRA FLOW
Type

Flush-mounted
Degree of mechanical protection

IK05
Accurate color

Snow white
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

Yes
PKWIU

27.33.13.0

Color

White
Material

Plastic
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Ground

Hurt
Surface finish

matte
Backlight

NO
Standard

Swiss
On the DATA key

NO
Exact material

Thermoplastic

Weitere technische Daten

Model

Swiss norm type 13
Number of active contacts (round)

2
With signal lamp

No
Number of units

1
Number of phases

1
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

9010
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with screw
Halogen free

Yes
Surface finishing

Matt
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20
Device width

55.5 mm
Device depth

36.4 mm

Protective contact

Yes
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Connection type

Screwed terminal
With enhanced contact protection

No
Colour

White
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Built-in installation
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

10 A
Frequency

50 ... 50 Hz
Impact strength

IK05
Device height

55.5 mm
Min. depth of built-in installation box

28 mm

Hersteller-Details

Hersteller

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta
Menge	10 stk.	100 stk.	3200 stk.
Gewicht (kg)	0,410	4,090	131,190
Breite (m)	0,140	0,300	0,800
Länge (m)	0,060	0,220	1,050
Tiefe (m)	0,200	0,400	1,200
