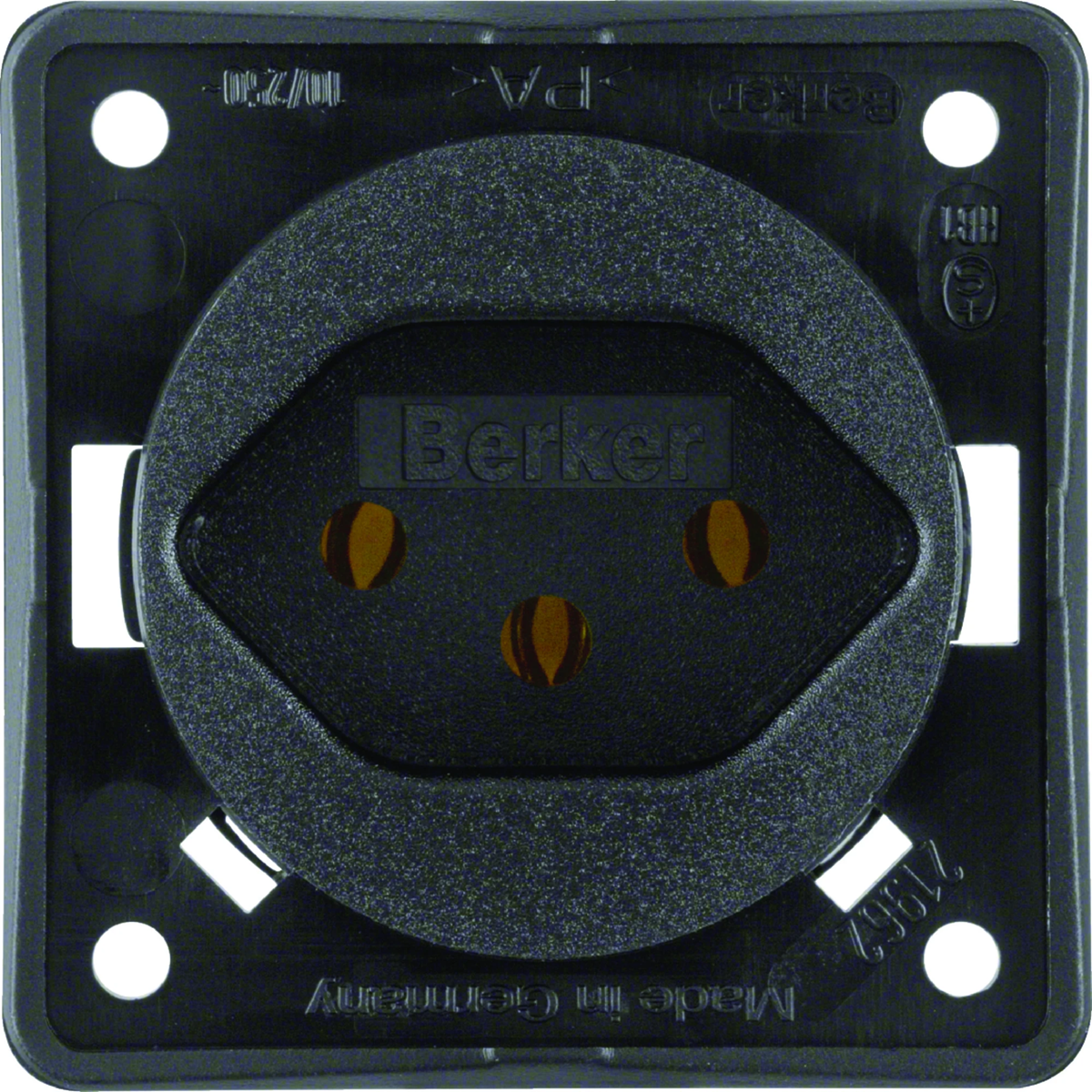

INTEGRO FLOW Socket with earthing "Switzerland" type 13, matt black 9624905

Indice locale:
MEE235BERK
Numero di catalogo:
9624905
Codice EAN:
4011334056379
Produttore: BERKER
Number of sockets: 1
Color: Black
Shape: Round
Prezzo:
14,45 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Socket with grounding, "Switzerland" type 13 standard, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connection:

  • with screw terminals,

Design:

  • 2-pole,

Dati tecnici

  • Number of sockets
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Backlight
    NO
  • Standard
    Swiss
  • On the DATA key
    NO
  • Exact material
    Thermoplastic
  • Color
    Black
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Surface finish
    matte
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Model
    Swiss norm type 13
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9011
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    55.5 mm
  • Device depth
    36.4 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    10 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK05
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    28 mm

Dettagli del produttore

  • Produttore
    HAGER POLO Sp. z o. o.
  • Indirizzo
    43-100 Tychy Fabryczna 10
  • NIP
    6460015532

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 10 pezzi 100 pezzi 2400 pezzi
Peso (kg) 0,469 5,130 148,120
Larghezza (m) 0,140 0,310 0,800
Lunghezza (m) 0,060 0,220 1,050
Profondità (m) 0,205 0,360 1,200
