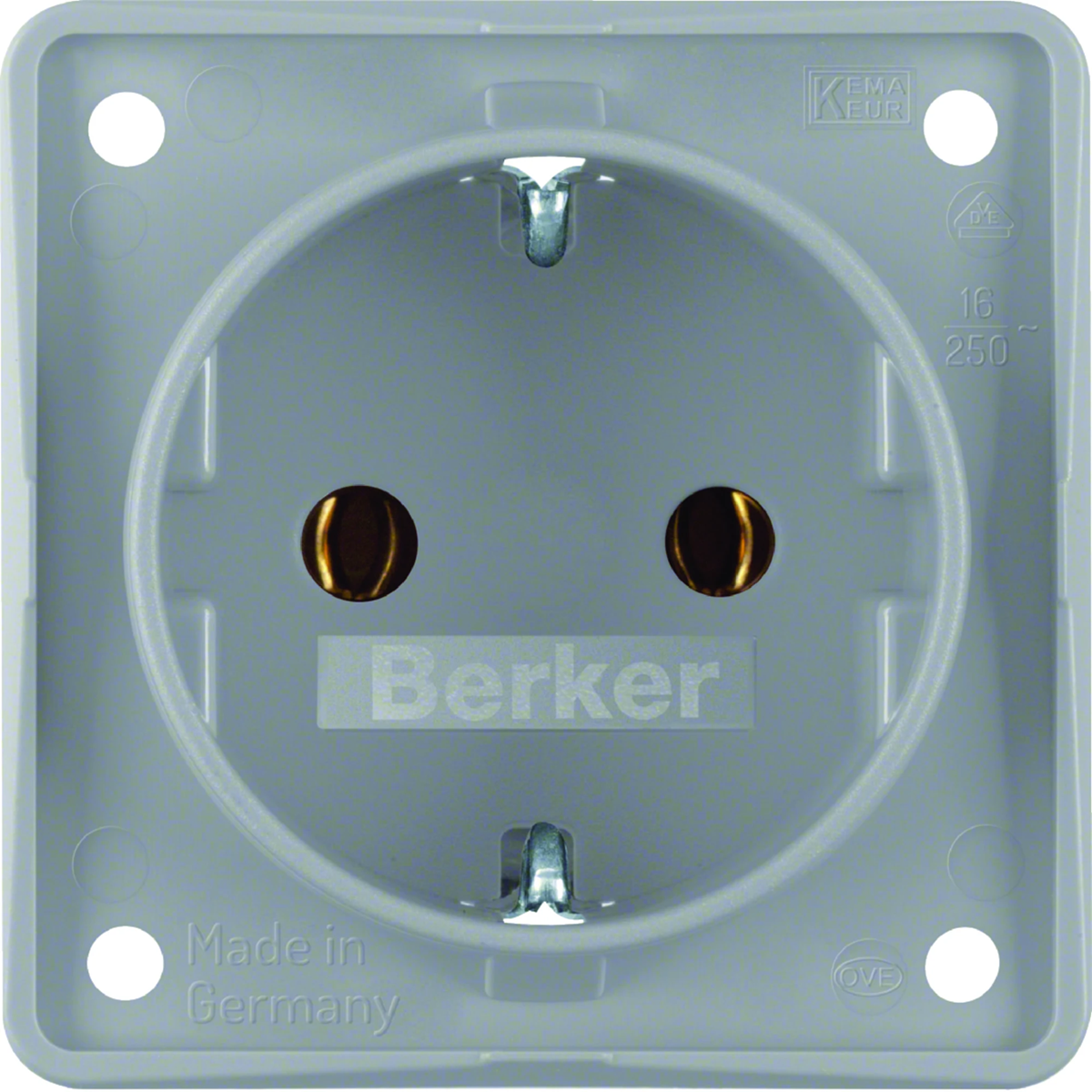

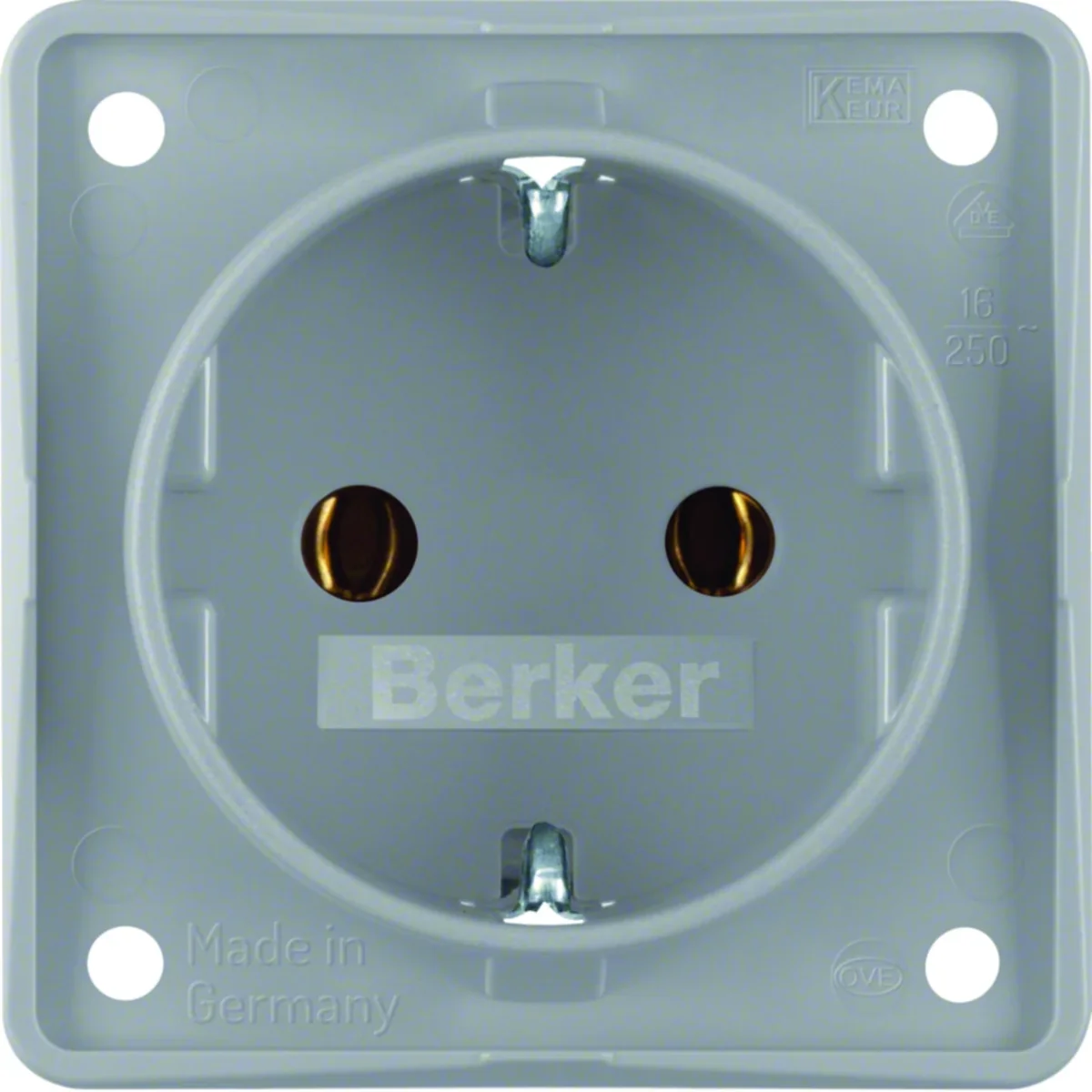

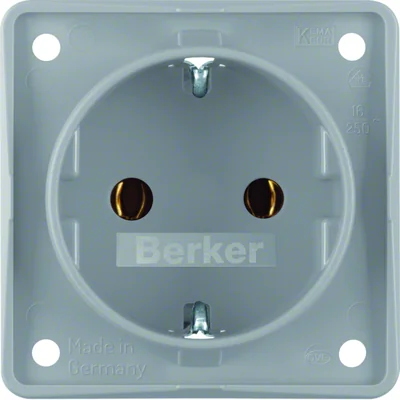

INTEGRO FLOW SCHUKO socket gray matt 947782506

Místní index:
MEE215BERK
Katalogové číslo.:
947782506
EAN kód:
4011334051497
Výrobce: BERKER
Number of sockets: 1
Color: Gray
Shape: Round
Cena:
28,18 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Socket with grounding SCHUKO, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever compact design and comprehensive functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Material:

  • central element made of thermoplastic, damask,
  • plinth made of Duroplast.

Connection:

  • with plug-in terminals,
  • copper alloy contacts.

Technické údaje

  • Number of sockets
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    light gray
  • Mounting depth [mm]
    32.7
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Thermoplastic Duroplastic
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP44
  • Ground
    schuko
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Další technické údaje

  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With enhanced contact protection
    No
  • RAL-number (similar)
    7038
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Surface finishing
    Matt
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Device width
    55.5 mm
  • Min. depth of built-in installation box
    32 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • Number of active contacts (flat)
    0
  • Number of modules (module system)
    1
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Halogen free
    Yes
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Device height
    55.5 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • For heavy conditions according to VDE
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta
Množství 10 kusů. 70 kusů. 1680 kusů.
Hmotnost (kg) 0,365 2,990 62,160
Šířka (m) 0,140 0,310 -
Délka (m) 0,070 0,220 -
Hloubka (m) 0,260 0,360 -
