Manufacturer: BERKER
Number of sockets: 1
Color: Graphite
Shape: Round
Price:
6,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

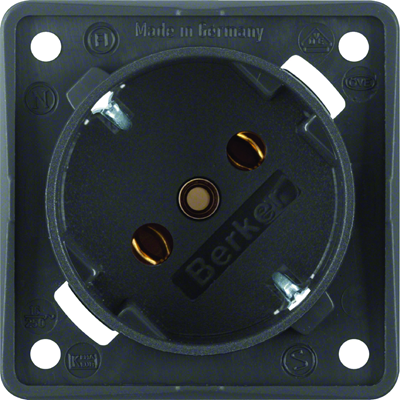

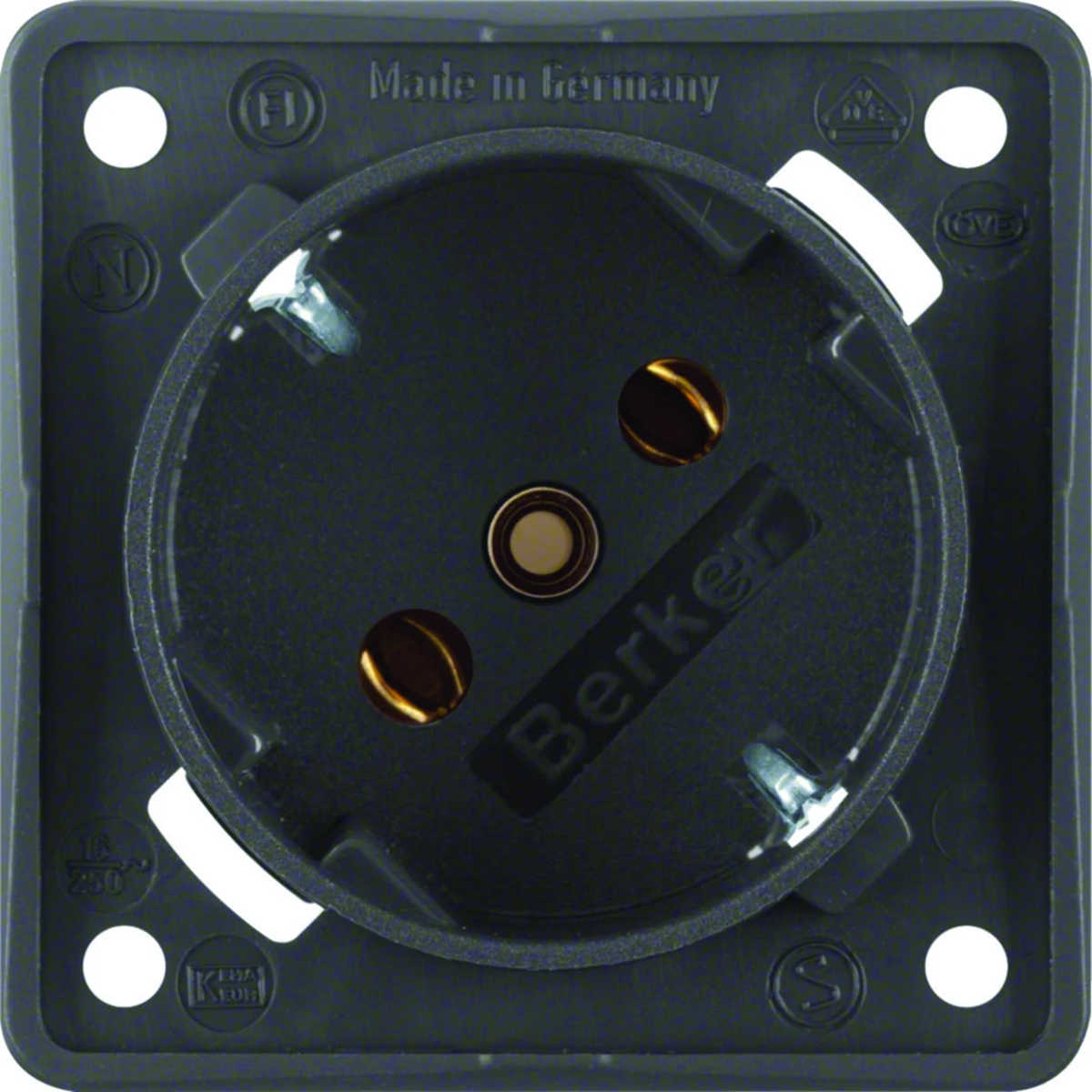

Socket with earthing SCHUKO 45°, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats.

Technical data

  • Number of sockets
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    Anthracite
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP44
  • Ground
    schuko
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    no
  • Colour
    Anthracite
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK05
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    32 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    7021
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    yes
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    55.5 mm
  • Device depth
    41.5 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 200 pcs. 200 pcs. 4800 pcs.
Weight (kg) 6,530 6,000 240,000
Width (m) 0,285 0,285 0,800
Length (m) 0,250 0,250 1,400
Depth (m) 0,330 0,330 1,200
