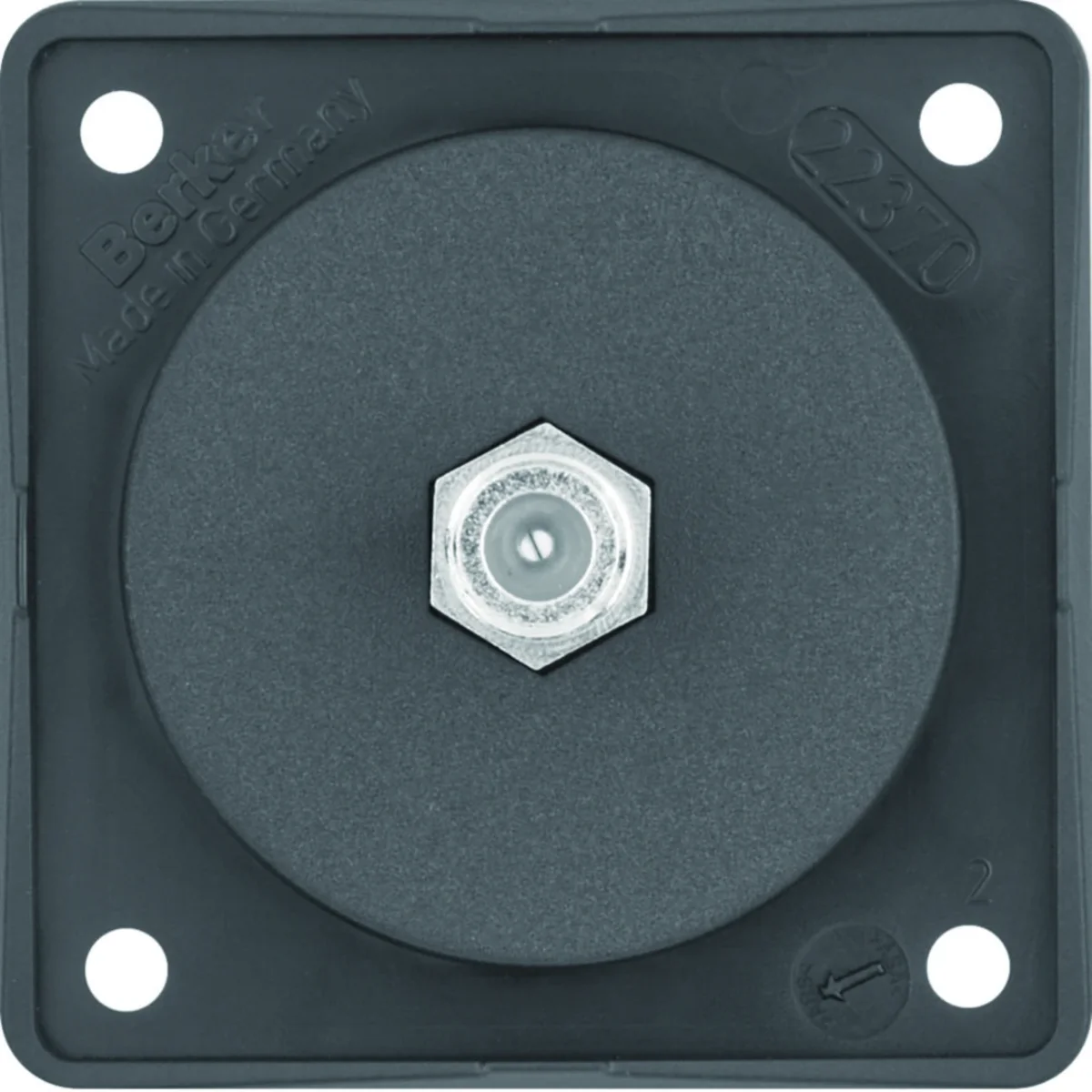

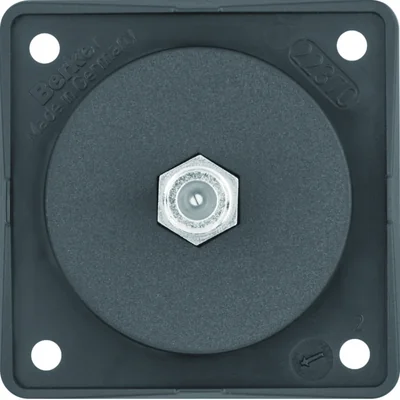

INTEGRO FLOW SAT antenna connection socket anthracite matt 945192505

Indeks lokalny:
MEA017BERK
Numer katalogowy:
945192505
Kod EAN:
4011334241140
Producent: BERKER
Number of sockets: 1
Color: Graphite
Shape: Round
Cena:
97,91 zł
gross / szt.
(w tym VAT 23%)
do 10 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

SAT antenna connection socket from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever a compact design and comprehensive functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connections:

  • with double F output.

Instructions:

  • use in combination with cover frames is not possible.

Dane techniczne

  • Number of sockets
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Version
    Final
  • Accurate color
    Anthracite
  • Variant
    sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Graphite
  • Material
    Plastic
  • Overprint
    NO
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • F-type input
    NO
  • Exact material
    Material Metal

Pozostałe dane techniczne

  • Model
    Loop-through socket
  • DAB+
    No
  • Tap loss at 2150 MHz
    5 dB
  • Suitable for cable modem
    Yes
  • Through loss at 2150 MHz
    5 dB
  • Shielding efficiency class
    Class A
  • Colour
    Anthracite
  • Surface protection
    Untreated
  • Material
    Other
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device width
    55.5 mm
  • Device depth
    27 mm
  • Type of socket outlet
    SAT
  • Tap loss at 860 MHz
    4 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    4 dB
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    7021
  • Surface finishing
    Matt
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Impact strength
    IK02
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    40 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Karton Pakiet Paleta
Ilość 10 szt. 120 szt. 3840 szt.
Waga (kg) 0,201 2,840 110,872
Szerokość (m) 0,130 0,300 0,800
Długość (m) 0,060 0,220 1,050
Głębokość (m) 0,200 0,400 1,200
