INTEGRO FLOW RCA module - video snow white/yellow 1992

local index:
MAM004BERK
Catalog No:
1992
EAN code:
4011334308812
Manufacturer: BERKER
Depth [mm]: 35
Material: Plastic | Metal
Surface: Matt
Price:
28,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Individual inquiry
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

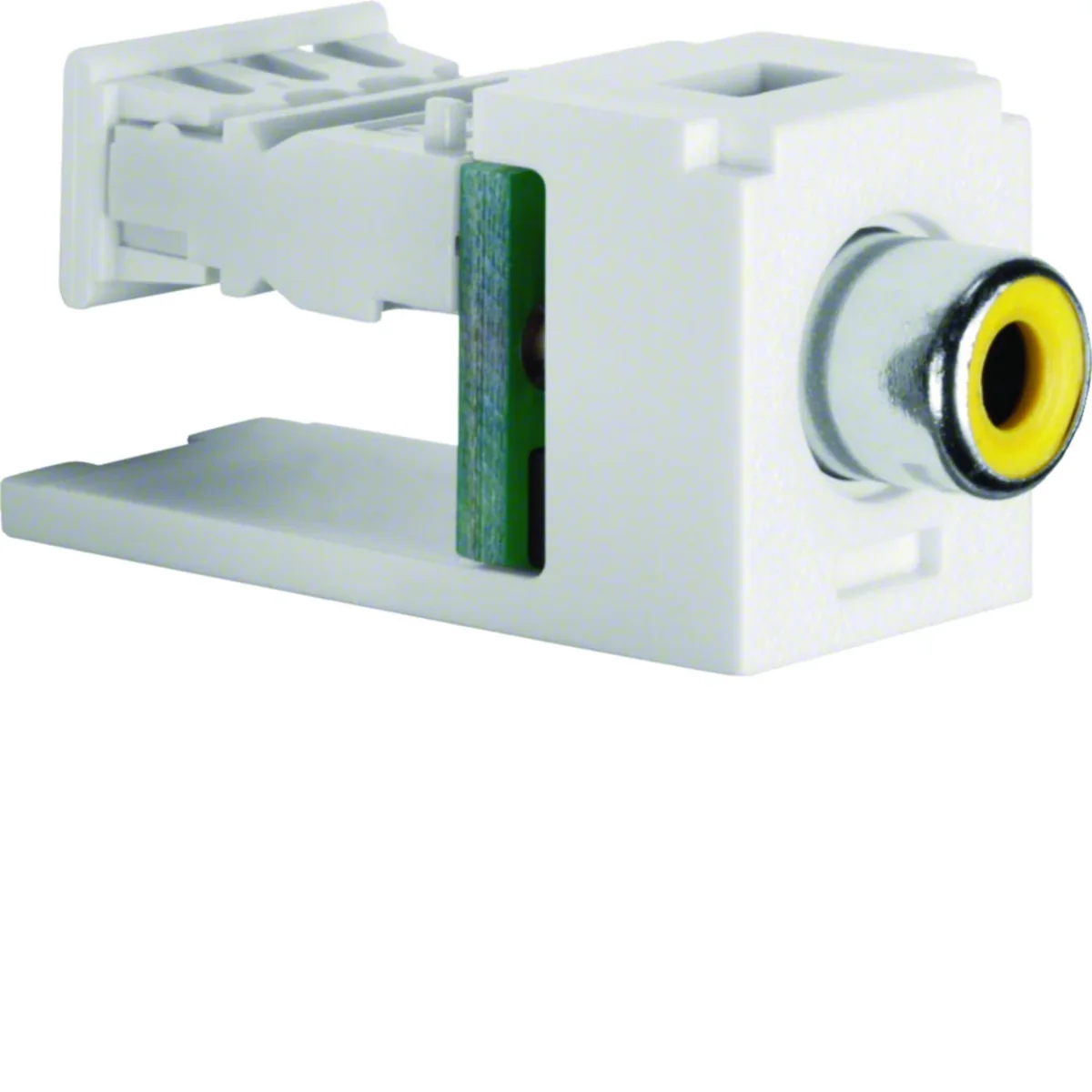

Cinch - video module, white/yellow, Integro Flow series.

  • with connector toolless
  • conductor cross-section: 0.2 … 0.325 mm²
  • conductor diameter: 0.5 … 0.65 mm (AWG 24-22)

Technical data

  • Depth [mm]
    35
  • Surface
    Matt
  • Width [mm]
    15
  • Height [mm]
    18
  • PKWIU
    27.33.13.0
  • Material
    Plastic Metal
  • Family
    INTEGRA FLOW
  • Socket type
    RCA
  • Wire cross-section [mm²]
    0.2 - 0.325

Other technical data

  • Assembly arrangement
    Basic element
  • Support ring
    No
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Other
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    18 mm
  • Min. depth of built-in installation box
    30 mm
  • Utilization
    RCA
  • With dust cover
    No
  • Outlet direction
    Straight
  • Mounting method
    Other
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    1
  • Suitable for number of connectors
    1
  • Shielded buses
    Yes
  • Luster terminal
    No
  • Device width
    15 mm
  • Device depth
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 200 pcs. 6400 pcs.
Weight (kg) 0,010 0,011 2,642 104,544
Width (m) 0,018 0,120 0,300 0,800
Length (m) 0,035 0,020 0,225 1,050
Depth (m) 0,015 0,170 0,400 1,200
