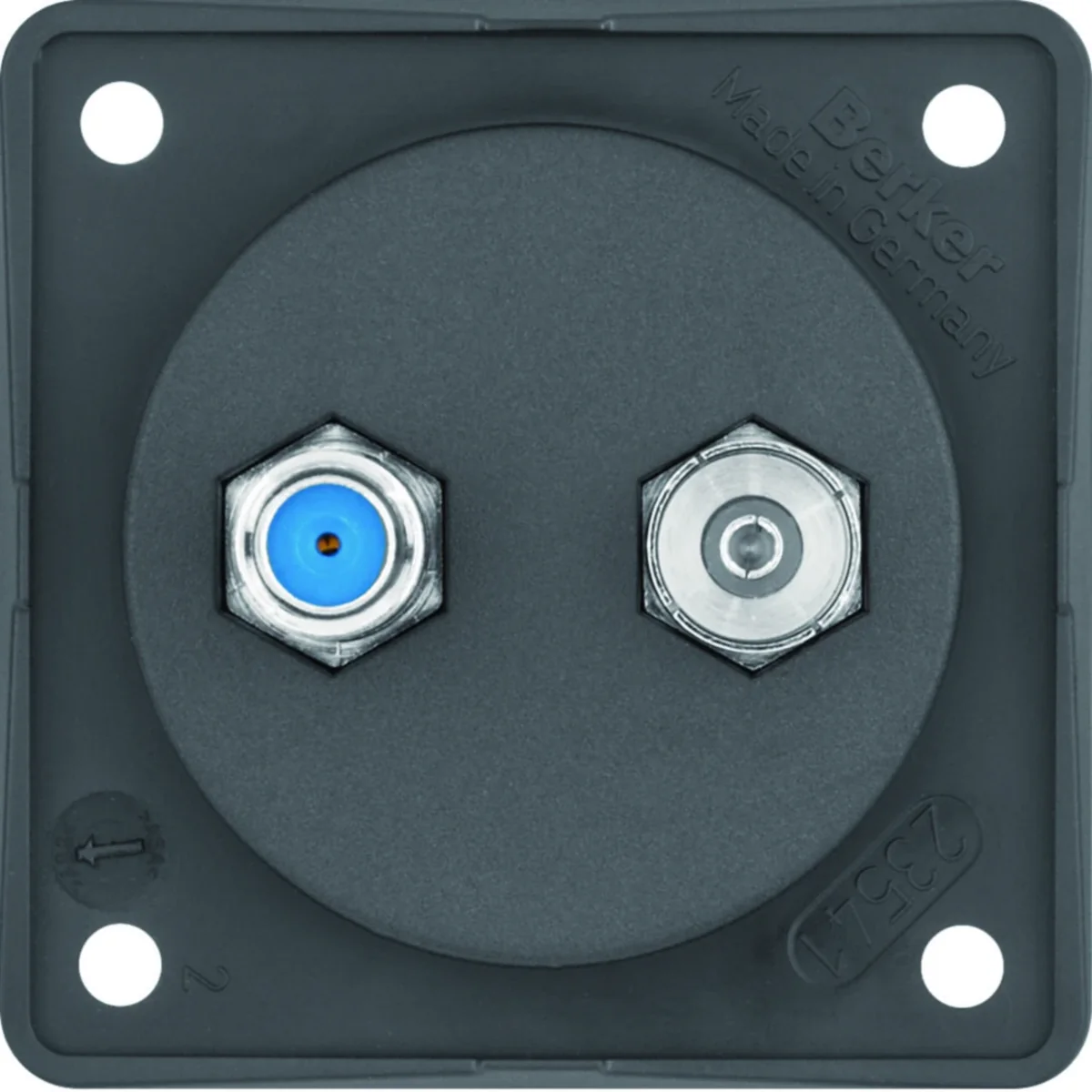

INTEGRO FLOW Radio/SAT antenna socket with unshielded housing anthracite matt 945602505

Índice local:
MEA022BERK
Número de catálogo:
945602505
Código EAN:
4011334241218
Fabricante: BERKER
Number of sockets: 2
Color: Graphite
Shape: Round
Precio:
108,31 zł
gross / uds.
(IVA incluido 23%)
hasta 10 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Antenna socket Radio/SAT with an unshielded housing, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connections:

  • with IEC and F output.

Instructions:

  • use in combination with cover frames is not possible.

Datos técnicos

  • Number of sockets
    2
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Version
    Final
  • Accurate color
    Anthracite
  • Mounting depth [mm]
    16.5
  • F-type input
    NO
  • Exact material
    Material Metal
  • PKWIU
    27.33.13.0
  • Color
    Graphite
  • Material
    Plastic
  • Overprint
    NO
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    R sat
  • For the frame system
    Yes
  • Unshielded housing
    Yes

Otros datos técnicos

  • Model
    Loop-through socket
  • DAB+
    No
  • Tap loss at 2150 MHz
    5 dB
  • Suitable for cable modem
    Yes
  • Through loss at 2150 MHz
    5 dB
  • Shielding efficiency class
    Class A
  • Colour
    Anthracite
  • Surface protection
    Untreated
  • Material
    Other
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device width
    55.5 mm
  • Device depth
    31.5 mm
  • Type of socket outlet
    SAT/RD
  • Tap loss at 860 MHz
    4 dB
  • Number of outlets
    2
  • Through loss at 860 MHz
    4 dB
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    7021
  • Surface finishing
    Matt
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Impact strength
    IK02
  • Device height
    55.5 mm
  • Min. depth of built-in installation box
    16.5 mm

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 10 uds. 120 uds. 3840 uds.
Peso (kg) 0,300 3,960 149,720
Ancho (m) 0,140 0,300 0,800
Longitud (m) 0,060 0,220 1,050
Profundidad (m) 0,200 0,400 1,200
