INTEGRO FLOW Grounding socket "Italy" anthracite 962512505

Name: INTEGRO FLOW Grounding socket \"Italy\" anthracite
Brand: BERKER
SKU: MEE242BERK
Price: 19.88 PLN

local index:

MEE242BERK

Catalog No:

962512505

EAN code:

4011334386636

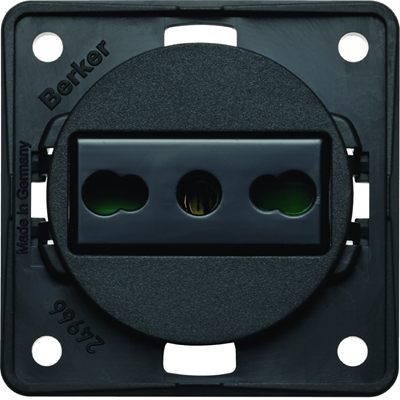

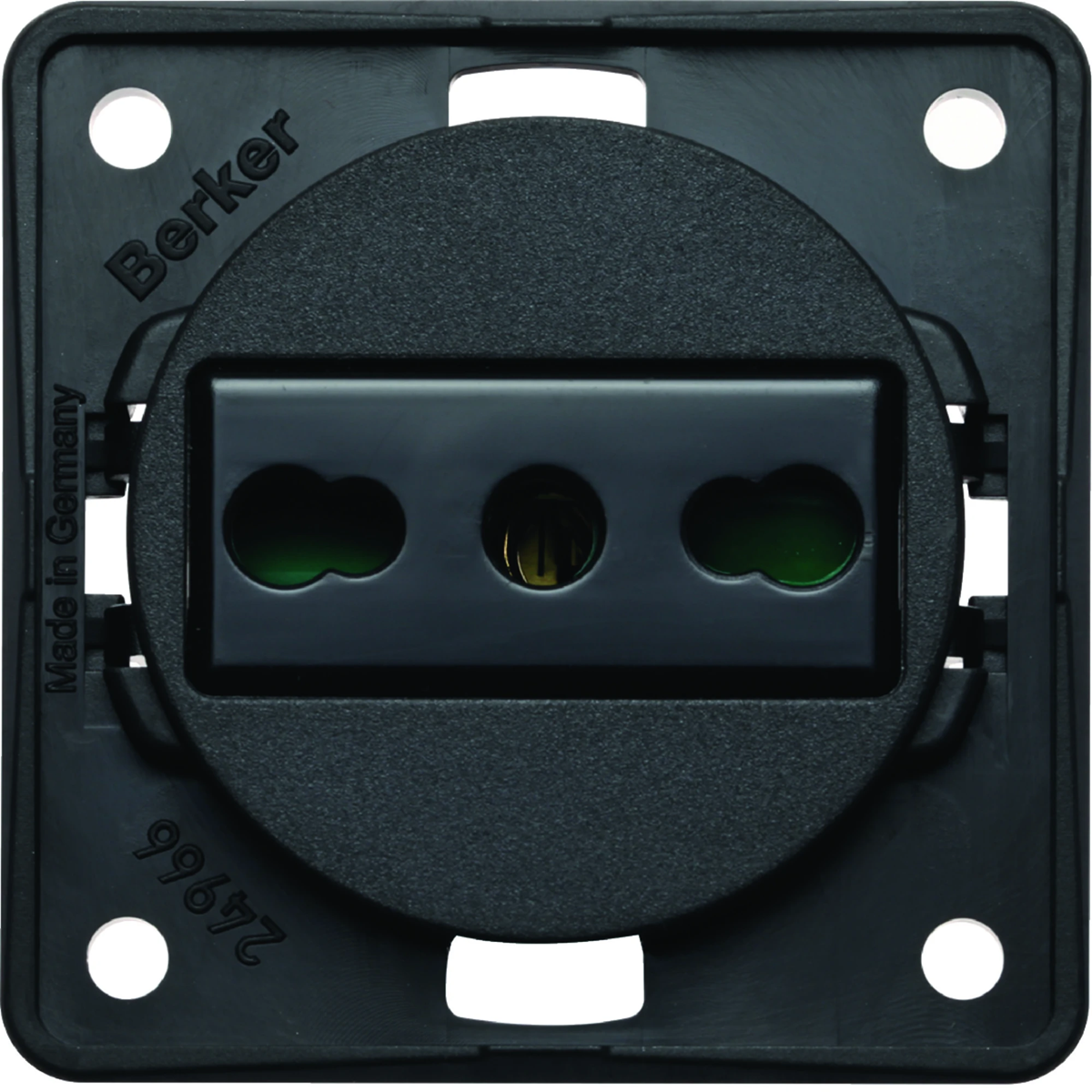

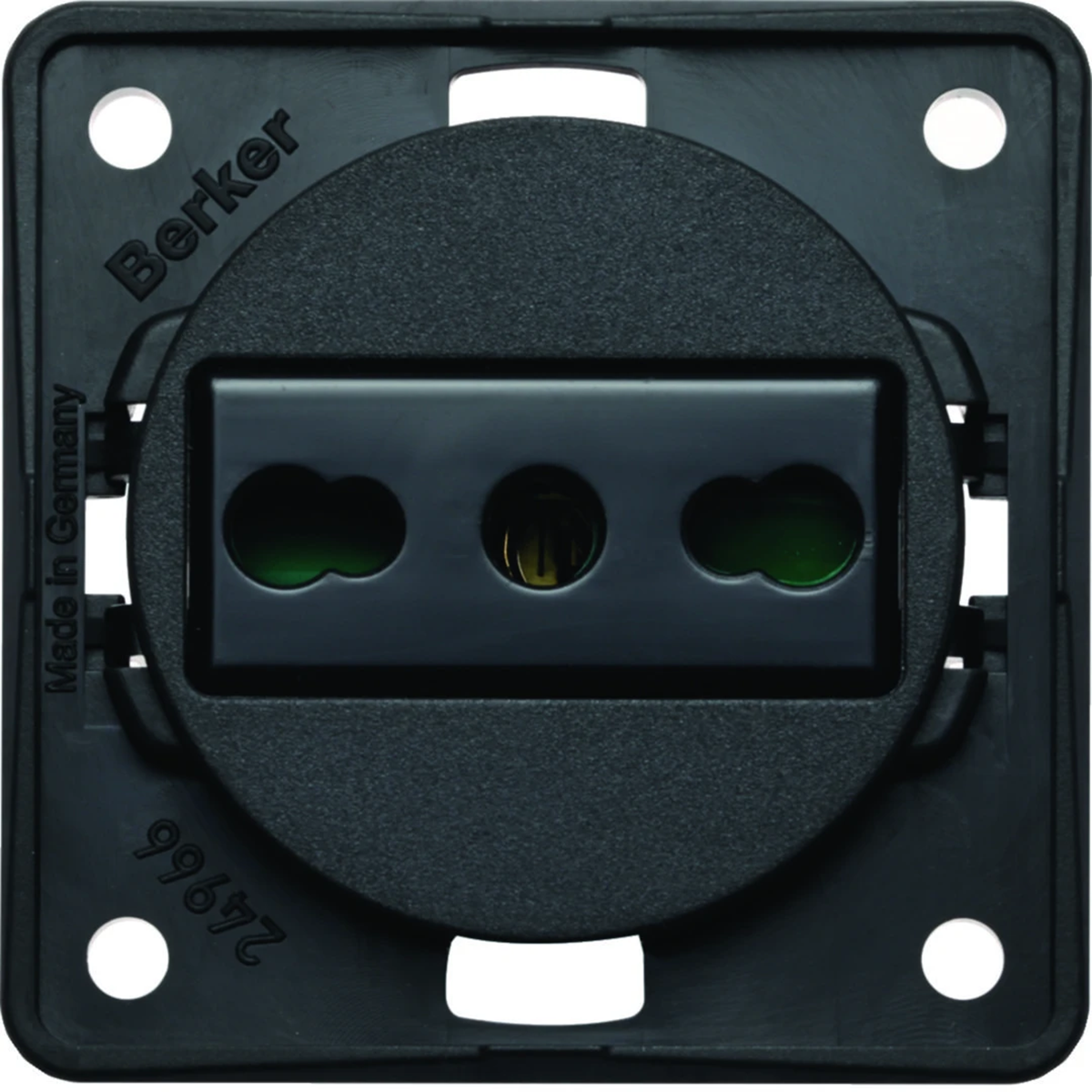

INTEGRO FLOW Grounding socket "Italy" anthracite

Click on the photo to enlarge

Manufacturer: BERKER

Number of sockets: 1

Color: Graphite

Shape: Round

See full description

Price:

19,88 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Socket with grounding, "Italy" standard, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connection:

with screw terminals,

Design:

2-pole,

Technical data

Number of sockets

1
Shape

Round
Installation

Flush-mounted
Rated current [A]

16
Family

INTEGRA FLOW
Type

Flush-mounted
Surface finish

matte
Backlight

NO
Standard

Italian
On the DATA key

NO
Exact material

Thermoplastic

Color

Graphite
Material

Plastic
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Ground

Hurt
Accurate color

Anthracite
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Number of active contacts (round)

2
With signal lamp

No
Connection type

Screwed terminal
Label space/information surface

No
RAL-number (similar)

7021
Eject-mechanism

No
With miniature fuse

No
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
Rotated central insert

No
Suitable for degree of protection (IP)

IP20
Device height

55 mm

Number of active contacts (flat)

0
Number of socket outlets switchable

0
With enhanced contact protection

Yes
Colour

Anthracite
Transparent

No
Over voltage protection

No
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Matt
With loop through function

No
Nominal voltage

250 V
Device width

55 mm
Device depth

30 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	120 pcs.	3840 pcs.
Weight (kg)	0,031	0,371	4,880	176,152
Width (m)	0,055	0,130	0,300	0,800
Length (m)	0,030	0,060	0,225	1,050
Depth (m)	0,055	0,200	0,400	1,200
