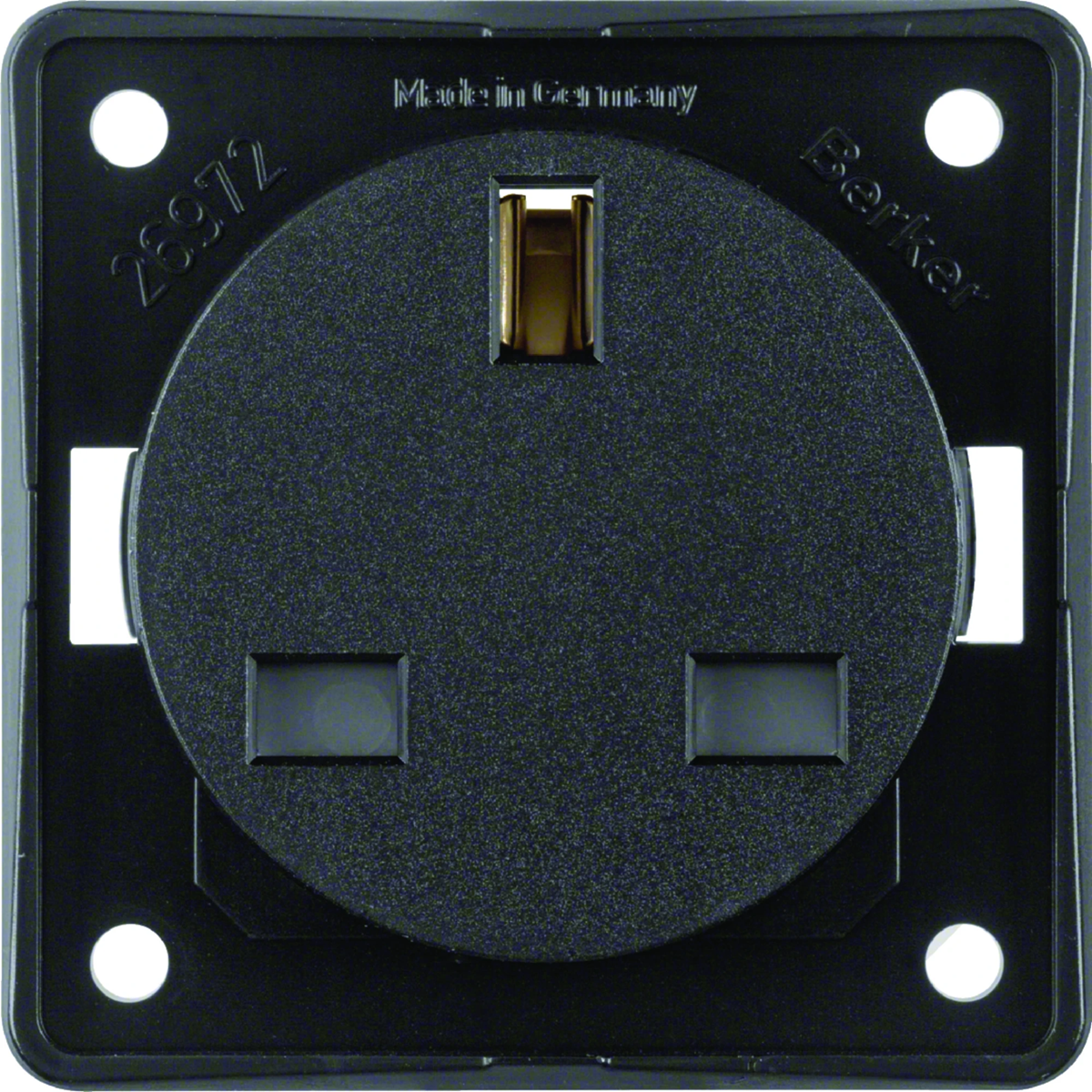

INTEGRO FLOW Earthed socket "British Standard" with increased contact protection matt black 9626205

Index local:
MEE258BERK
Numéro de catalogue:
9626205
Code EAN:
4011334146261
Producteur: BERKER
Number of sockets: 1
Color: Black
Shape: Round
Prix:
53,39 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Socket with grounding, "British Standard", with increased contact protection, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is the ideal solution for use in kitchen furniture, in the sanitary industry and wherever compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.

Connection:

  • with screw terminals,

Design:

  • 2-pole.

Données techniques

  • Number of sockets
    1
  • Shape
    Round
  • Fixing
    screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Surface finish
    matte
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    13
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Backlight
    NO
  • Standard
    British
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Autres données techniques

  • Model
    British Standard
  • Number of active contacts (flat)
    2
  • Number of modules (module system)
    1
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Black
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Mounting method
    Other
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    55.5 mm
  • Min. depth of built-in installation box
    20 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9005
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with screw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    13 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK05
  • Device height
    55.5 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • For heavy conditions according to VDE
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 10 pcs. 100 pcs. 2400 pcs.
poids (kg) 0,540 5,860 163,640
Largeur (m) 0,140 0,310 0,800
Longueur (m) 0,060 0,210 1,050
Profondeur (m) 0,200 0,360 1,200
