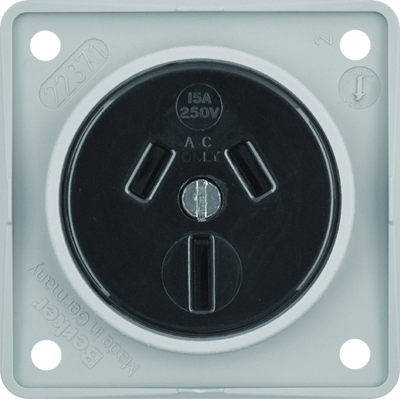

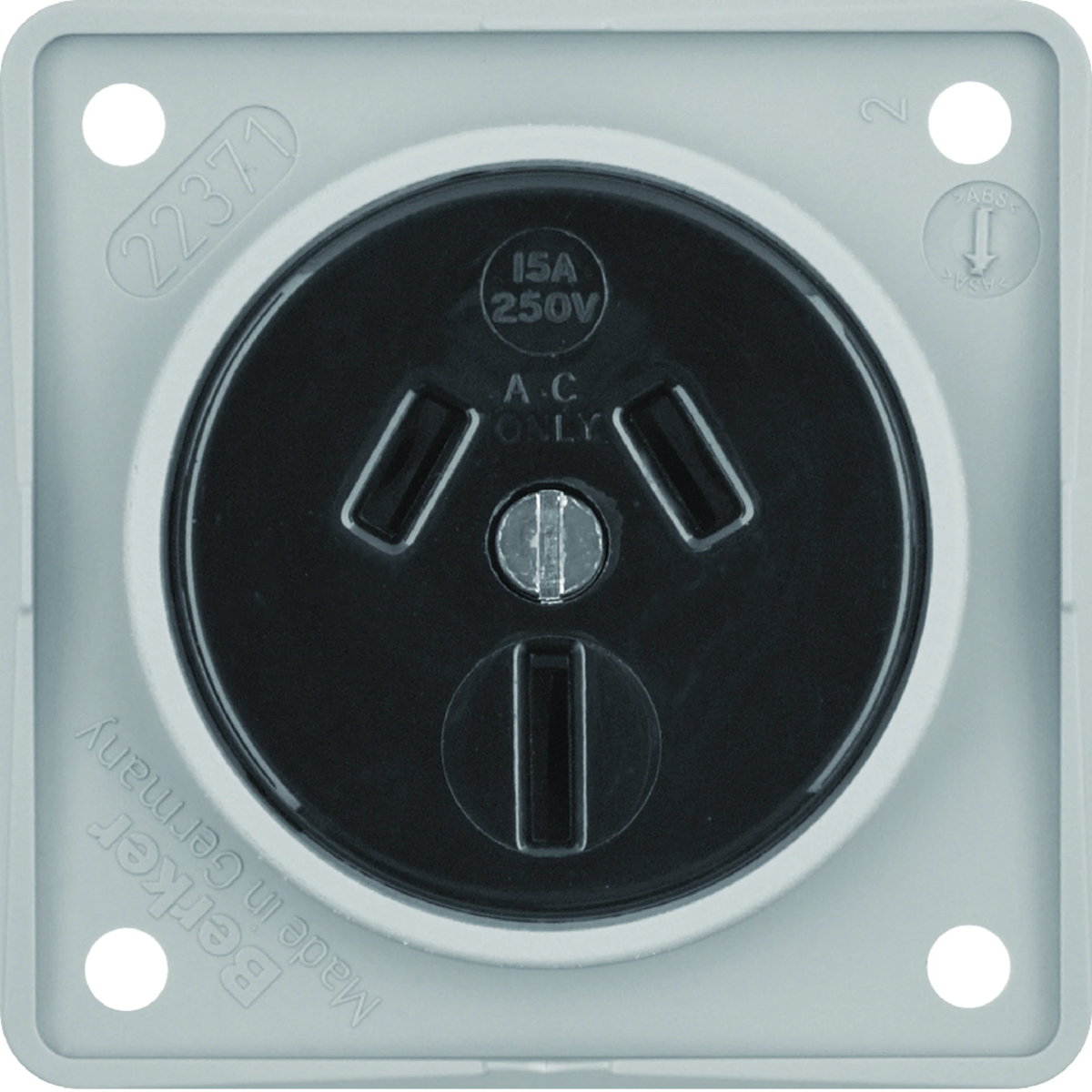

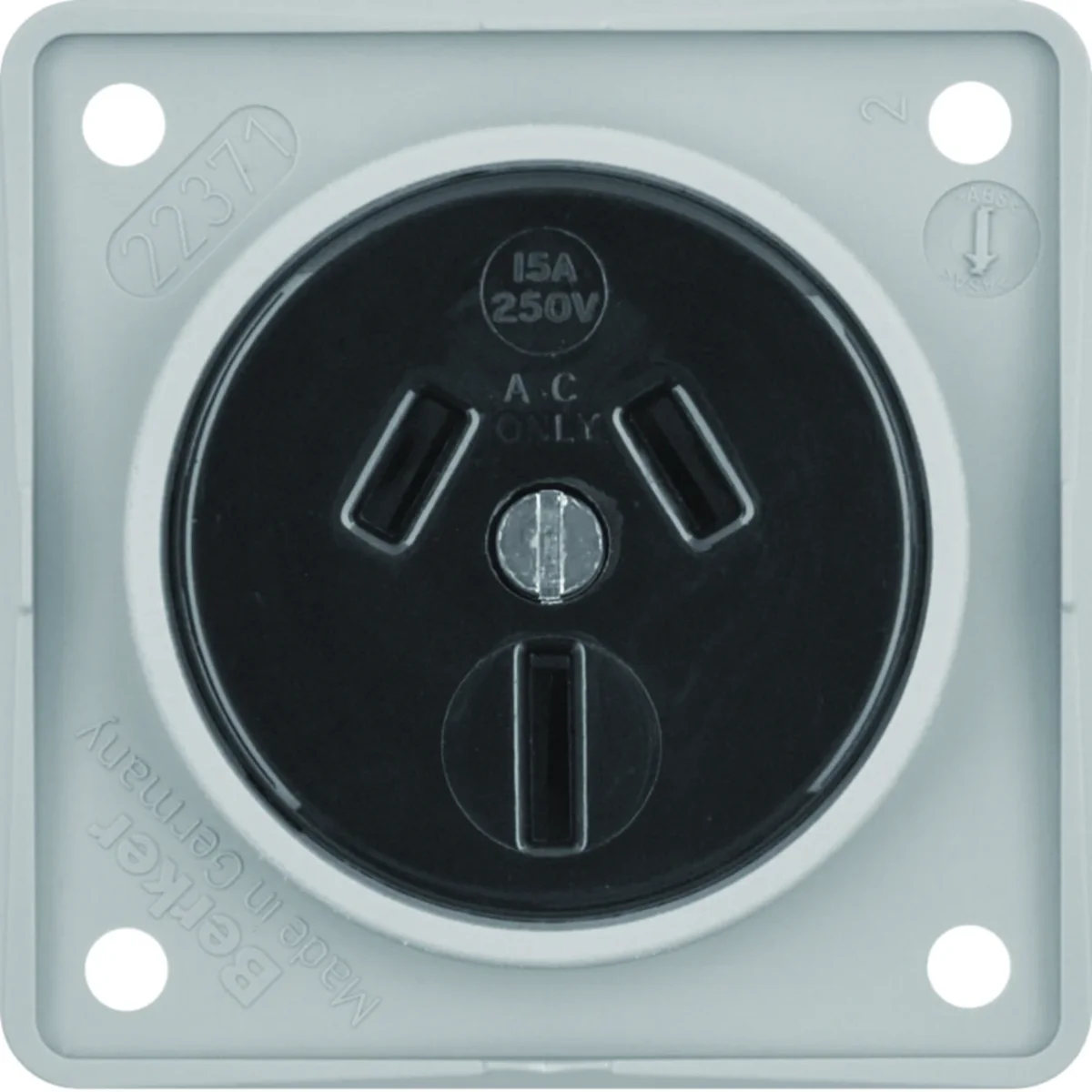

INTEGRO FLOW Earthed socket "Australia" grey 962562506
local index:
MEE247BERK
Catalog No:
962562506
EAN code:
4011334240952
Price:
36,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket with grounding, "Australia" standard, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.
Connection:
- with screw terminals,
Design:
- 2-pole,
Installation / Mounting:
- contact screws, cross cut, size PH2 .
Technical data
-
Number of sockets1
-
ShapeRound
-
InstallationFlush-mounted
-
Rated current [A]15
-
FamilyINTEGRA FLOW
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
Accurate colorlight gray
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorGray
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Surface finishmatte
-
BacklightNO
-
StandardAustralian
-
On the DATA keyNO
-
Exact materialThermoplastic
Other technical data
-
ModelAustralian standard AS/NZS 3112 (type I)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)2
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourGrey
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodBuilt-in installation
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current15 A
-
Frequency50 ... 50 Hz
-
Impact strengthIK05
-
Device height55.5 mm
-
Min. depth of built-in installation box16 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)7038
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width55.5 mm
-
Device depth27.8 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 120 pcs. | 3840 pcs. |
| Weight (kg) | 0,036 | 0,430 | 5,490 | 195,672 |
| Width (m) | 0,056 | 0,130 | 0,300 | 0,800 |
| Length (m) | 0,028 | 0,060 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,200 | 0,400 | 1,200 |
