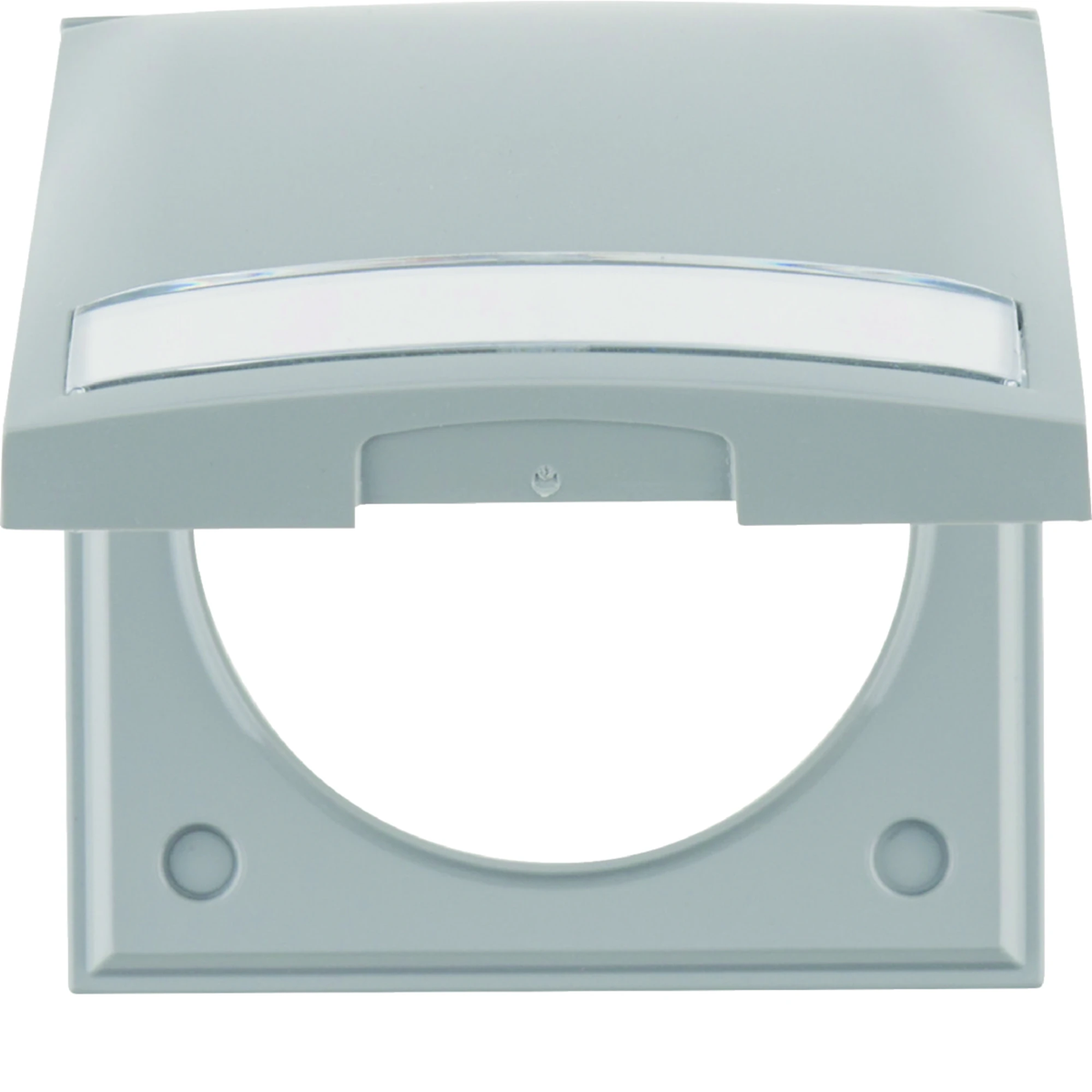

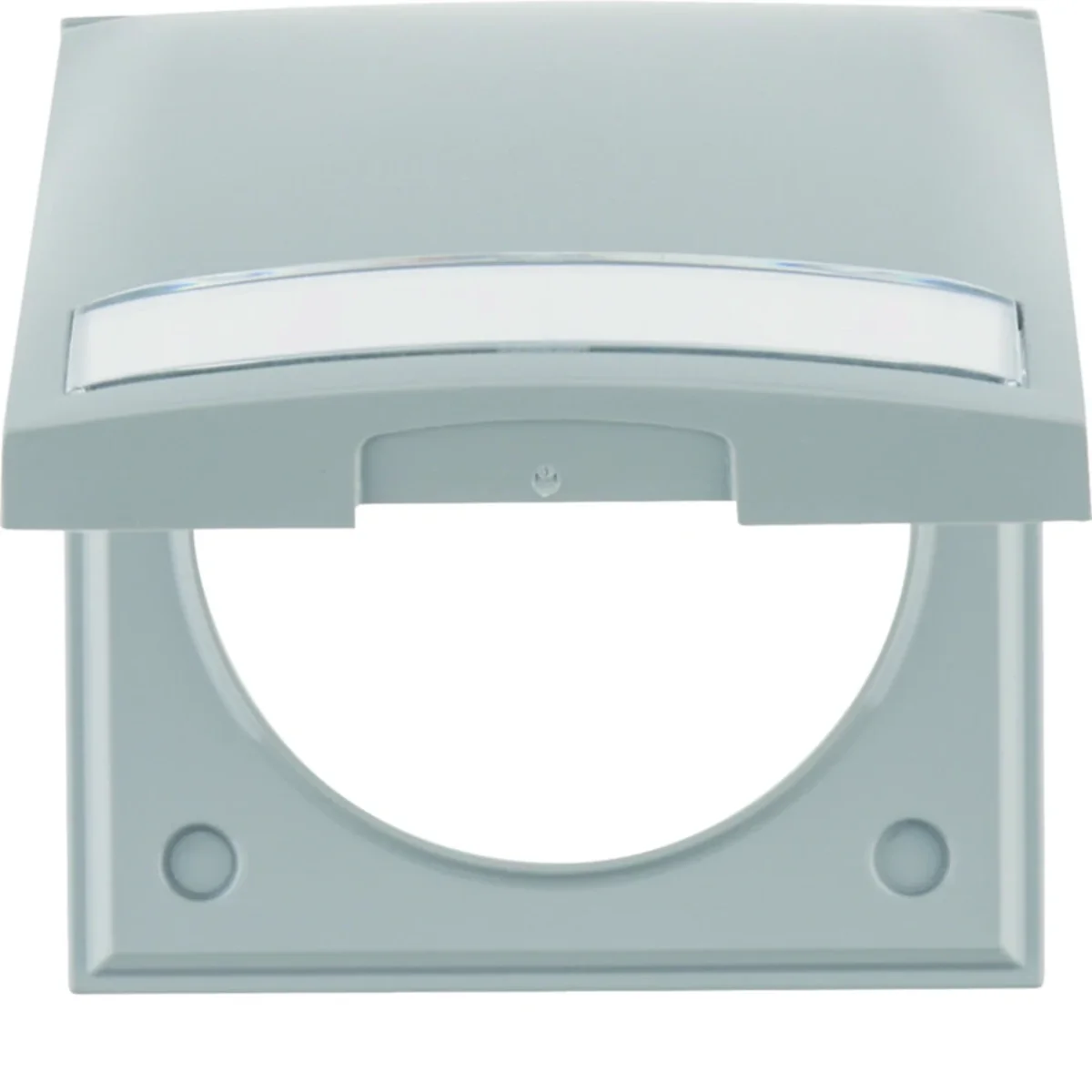

INTEGRO FLOW 1-gang frame with a cover and a descriptive field, glossy grey 919882506
local index:
MAR519BERK
Catalog No:
919882506
EAN code:
4011334155508
Price:
8,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single frame with a description fieldfrom the Integro Flow series from Berker. The product catalog number is 919882506.
- For the cover of plug sockets.
- The height of the description field is adapted to the 9 mm P-touch strip.
SERIES DESCRIPTION
Berker Integro Flow perfectly suited to places where compact construction is necessary and comprehensive functionality.
Technical data
-
Depth [mm]17.9
-
ColorGray
-
MaterialPlastic
-
TypeWith cover
-
Level of securityIP20
-
Height [mm]59.5
-
Surface finishShiny
-
Mounting directionVertical
-
Exact materialThermoplastic
-
PKWIU27.12.40.0
-
Number of modules1
-
ShapeSquare
-
Descriptive fieldYes
-
FamilyINTEGRA FLOW
-
Width [mm]59.5
-
Surface protectionNatural
-
Accurate colorlight gray
-
For modular equipmentNot applicable
-
The shape of the matching accessoryRound
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)0
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)7038
-
With hinged lidYes
-
Impact strengthIK02
-
Width59.5 mm
-
Depth17.9 mm
-
Mounting directionVertical
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceYes
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourGrey
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height59.5 mm
-
Diameter bore hole (opening)42.5 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 190 pcs. | 4560 pcs. |
| Weight (kg) | 0,009 | 0,235 | 4,895 | 140,480 |
| Width (m) | 0,059 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,018 | 0,070 | 0,220 | 1,050 |
| Depth (m) | 0,059 | 0,180 | 0,365 | 1,200 |
