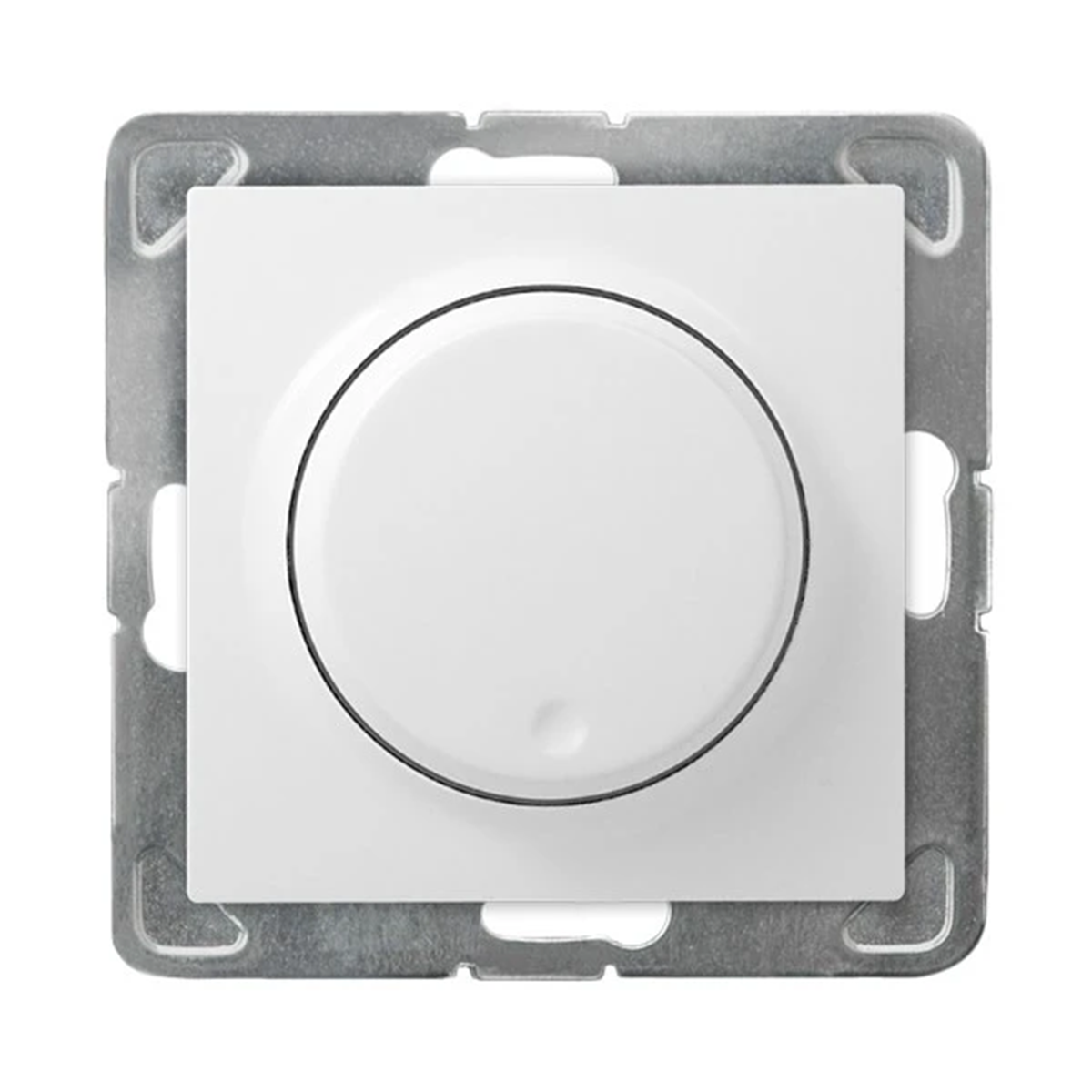

IMPRESJA Universal dimmer for incandescent, incandescent and LED loads, white ŁP-8YL2/M/00
local index:
MMC060OSPE
Catalog No:
ŁP-8YL2/M/00
EAN code:
5907577478445
Manufacturer:
OSPEL
Additional features: With the function of a stair switch
Depth [mm]: 43
Number of keys: Knob
Price:
44,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Universal dimmer from Impression series, from Ospel. The product catalog number is ŁP-8YL2/M/00.
FEATURES
- Adjusted to incandescent load , halogen and LED.
- "Time to bed" function.
- Working in a stair system.
SERIES DESCRIPTION
A wide range of available colors is the main advantage of the elegant Impression collection. Dimmercharacterize the features of this unique series.
Technical data
-
Additional featuresWith the function of a stair switch
-
Number of keysKnob
-
ShapeSquare
-
Fixingclaws screws
-
Typedimmers
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
BacklightNO
-
load power [W]GLS: 10-250 CFL: 5-75 LED: 0-100
-
For the frame systemYes
-
Depth [mm]43
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
FamilyIMPRESSION
-
Width [mm]71
-
VersionFor incandescent lighting For halogen lighting For LED
-
Surface protectionNatural
-
Mounting depth [mm]31
-
Terminal typeThreaded
-
PKWIU27.33.11.0
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Number of modules (module system)1
-
Serial dimmerYes
-
Substation inputNo
-
Applicable with buttonYes
-
Applicable with presence indicatorNo
-
Applicable with transmission buttonNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 ... 230 V
-
Control voltage230 ... 230 V
-
Device width71 mm
-
Device depth50 mm
-
Method of operationTurn/push button
-
App control via BluetoothNo
-
Type of loadUniversal and LED Retrofit
-
Light value memoryYes
-
Applicable with movement sensorNo
-
Applicable with time switch/timerNo
-
Applicable with infrared buttonNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Impact strengthIK03
-
Frequency50 ... 50 Hz
-
Core cross section1 ... 1.5 mm²
-
Device height71 mm
-
Min. depth of built-in installation box60 mm
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,093 | - |
| Width (m) | 0,071 | 0,162 |
| Length (m) | 0,071 | 0,237 |
| Depth (m) | 0,043 | 0,090 |
