IMPRESJA Universal dimmer for incandescent, incandescent and LED loads, golden metallic ŁP-8YL2/M/28

Name: IMPRESJA Universal dimmer for incandescent, incandescent and LED loads, golden metallic
Brand: OSPEL
SKU: MMC064OSPE
Price: 225.31 PLN
Availability: BackOrder

Índice local:

MMC064OSPE

Número de catálogo:

ŁP-8YL2/M/28

Código EAN:

5907577478483

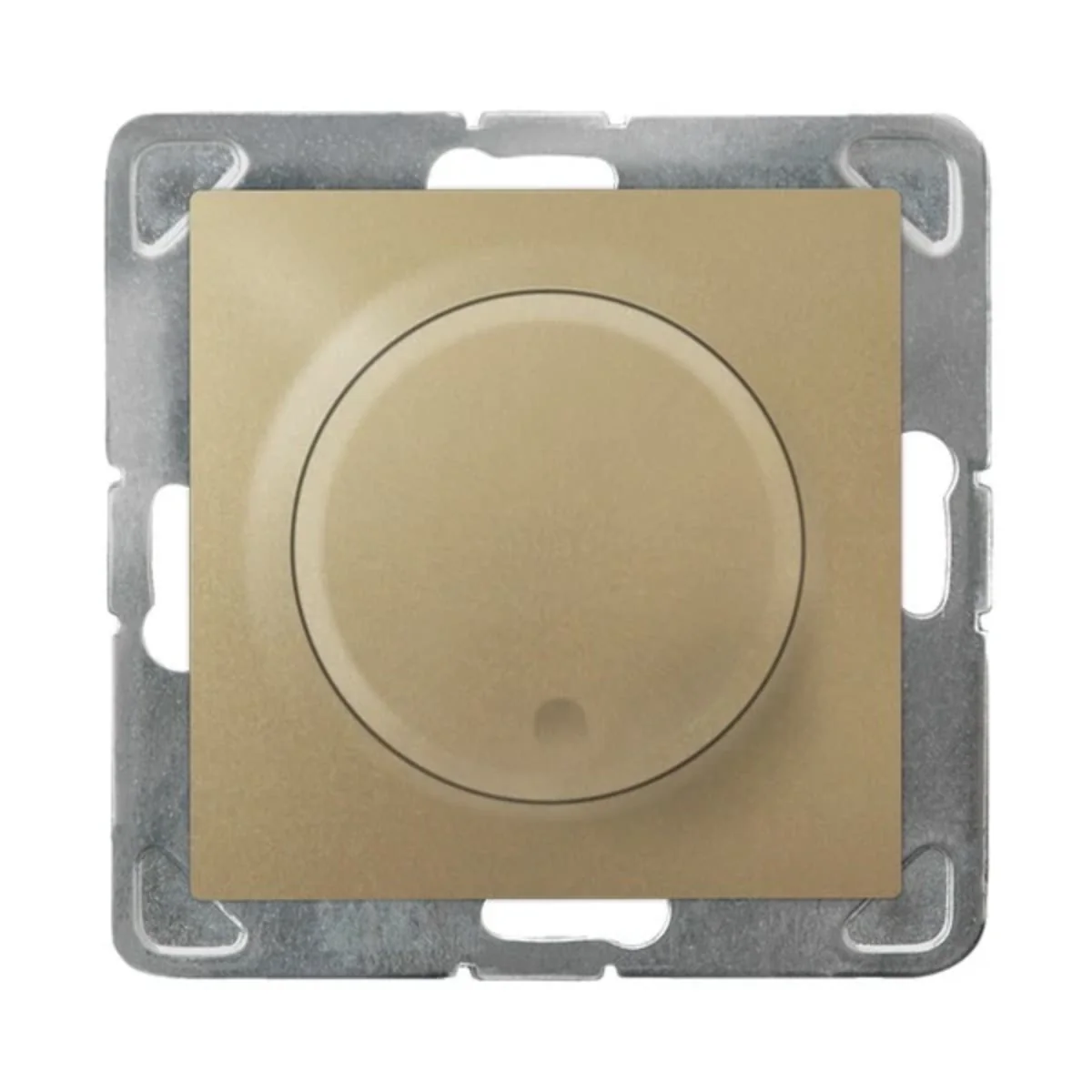

IMPRESJA Universal dimmer for incandescent, incandescent and LED loads, golden metallic

Haga clic en la foto para ampliar

Fabricante: OSPEL

Additional features: With the function of a stair switch

Depth [mm]: 43

Number of keys: Knob

Ver descripción completa

Precio:

225,31 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Universal dimmer from Impression series, from Ospel. The product catalog number is ŁP-8YL2/M/28.

FEATURES

Adjusted to incandescent load , halogen and LED.
"Time to bed" function.
Working in a stair system.

SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impression collection. Dimmercharacterize the features of this unique series.

Datos técnicos

Additional features

With the function of a stair switch
Number of keys

Knob
Shape

Square
Fixing

claws screws
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Accurate color

Golden metallic
Mounting depth [mm]

31
Terminal type

Threaded
PKWIU

27.33.11.0

Depth [mm]

43
Color

Golden
Material

Plastic
Rated voltage [V]

230
Family

IMPRESSION
Width [mm]

71
Version

For incandescent lighting For halogen lighting For LED
Surface protection

varnishing
Backlight

NO
load power [W]

GLS: 10-250 CFL: 5-75 LED: 0-100
For the frame system

Yes

Otros datos técnicos

Assembly arrangement

Basic element with complete housing
Number of modules (module system)

1
Serial dimmer

Yes
Substation input

No
Applicable with button

Yes
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

1036
Suitable for degree of protection (IP)

IP20
Nominal voltage

230 ... 230 V
Control voltage

230 ... 230 V
Device width

71 mm
Device depth

50 mm

Method of operation

Turn/push button
App control via Bluetooth

No
Type of load

Universal and LED Retrofit
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Gold
Transparent

No
Impact strength

IK03
Frequency

50 ... 50 Hz
Core cross section

1 ... 1.5 mm²
Device height

71 mm
Min. depth of built-in installation box

60 mm

Detalles del fabricante

Fabricante

OSPEL S.A.
Dirección

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Empaquetado a granel

una especie de paquete	Pudełko
Cantidad	5 uds.
Ancho (m)	0,710
Longitud (m)	0,710
Profundidad (m)	0,310

Archivos para descargar

pl.pdf
