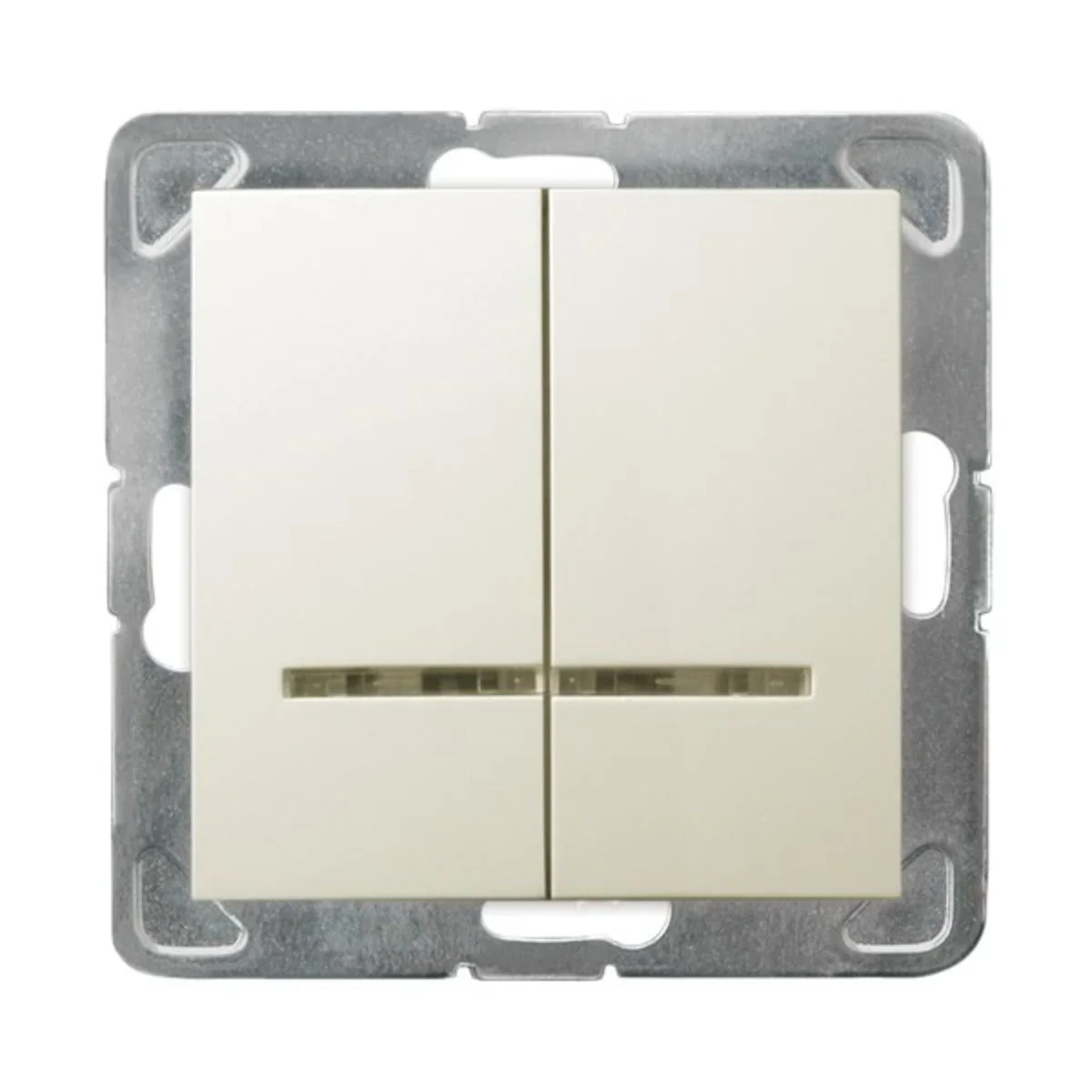

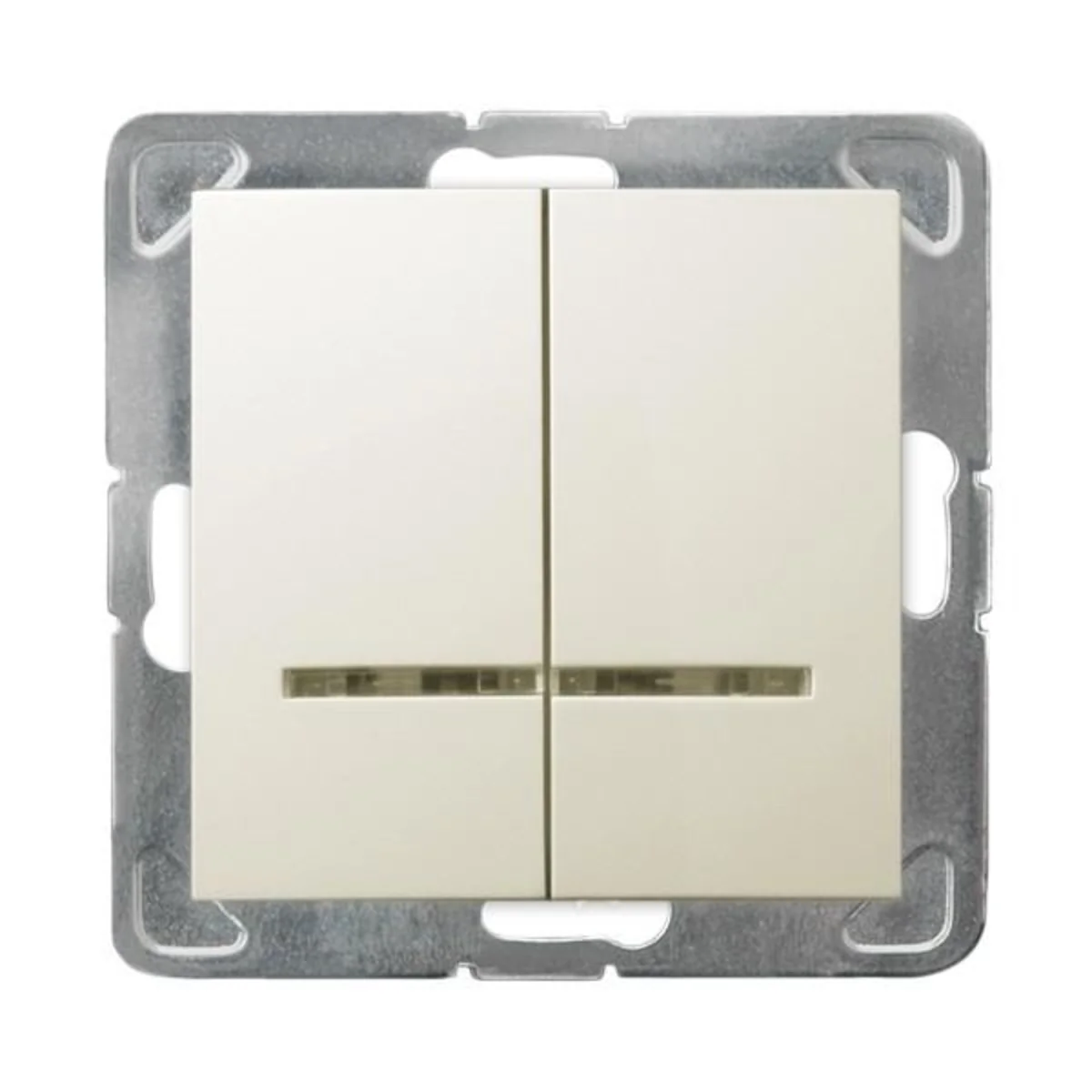

IMPRESJA Two-group switch, candlestick, with ecru base, without frame ŁP-2YS/M/27
Index local:
MMT069OSPE
Numéro de catalogue:
ŁP-2YS/M/27
Code EAN:
5907577438180
Prix:
6,96 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Candlestick connector from the Impression series, from Ospel. The product catalog number is ŁP-2YS/M/27.
FEATURES
- Two-group.
- With backlightin orange (LTS lamp).
- Module without frame.
- Threadless terminals.
- Colour ecru.
- Rated current 16AX .
- Rated voltage 230V.
- Mounting flush mounting.
- Ingress protection IP20< /strong>.
- Dimensions: 71 x 71 mm (height x width).
SERIES DESCRIPTION
The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.
The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.
Données techniques
-
Depth [mm]40
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyIMPRESSION
-
Width [mm]71
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]23
-
For the frame systemYes
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeCandlestick
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightYes
-
Terminal typeThreadless
-
Exact materialPlastic Metal
-
Backlight colorOrange
Autres données techniques
-
Wiring systemOff switch 2x1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth23 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth40 mm
Détails du fabricant
-
ProducteurOSPEL S.A.
-
Adresse42-436 PILICA Wierbka, ul. Główna 128
-
Numéro de téléphone
-
E-mail
-
Numéro identifiant TVA6490010864
-
GLN5909002028034
Emballage en vrac
| Une sorte de paquet | Pudełko |
| Quantité | 10 pcs. |
| Largeur (m) | 0,162 |
| Longueur (m) | 0,237 |
| Profondeur (m) | 0,090 |
