IMPRESJA Triple frame gray glass + black frame R-3YGC/41/25
local index:
MAR228OSPE
Catalog No:
R-3YGC/41/25
EAN code:
5907577478193
Price:
39,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

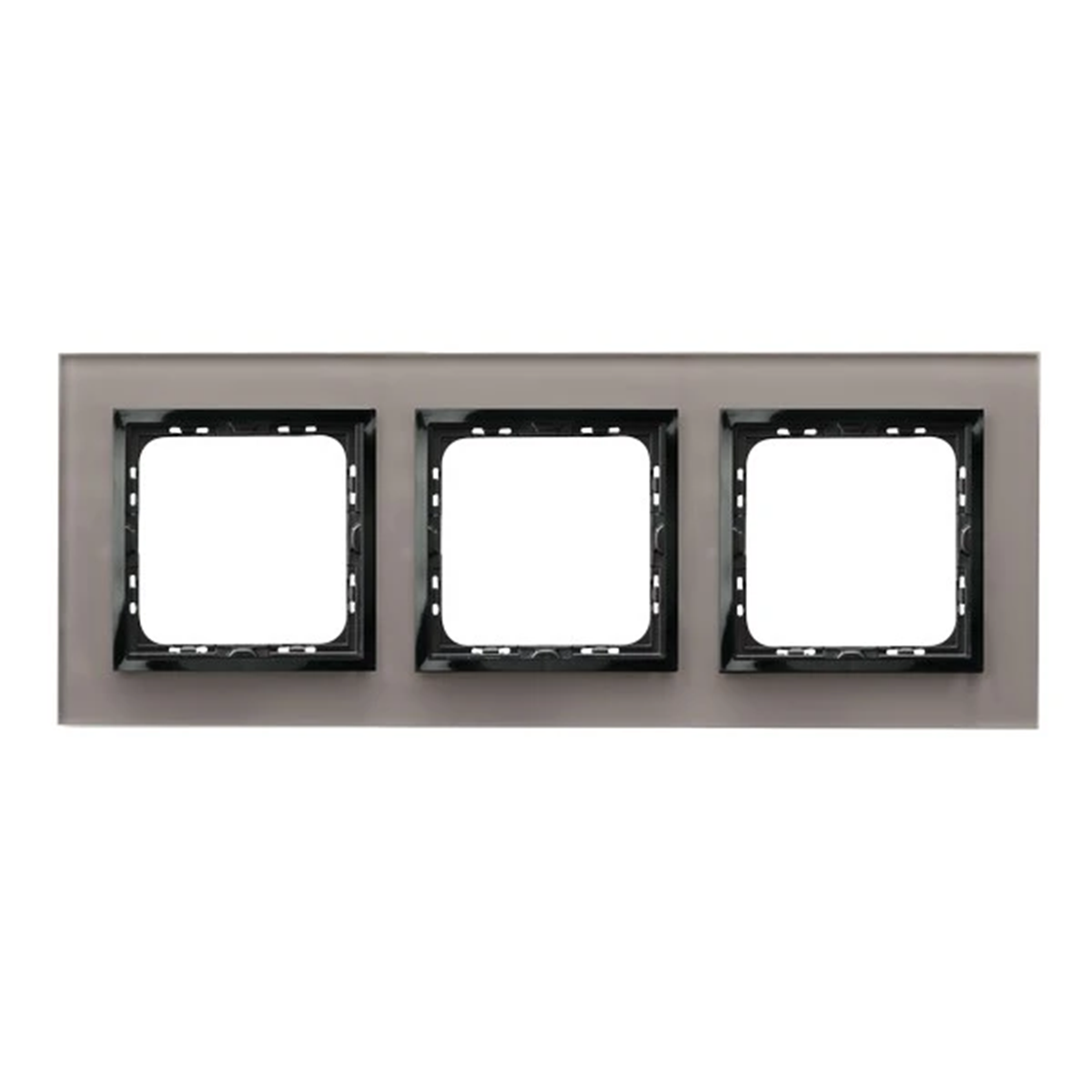

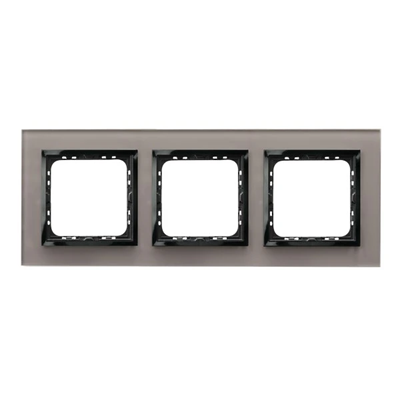

Triple frame from the Impression series, from Ospel. The product catalog number is R-3YGC/41/25.
- Glass+PC 4mm thick.
- Prestige series frame.
- Only in IP-20 version.
SERIES DESCRIPTION
The wide range of available frame colors is mainly An important advantage of the elegant series Impression.
Technical data
-
Depth [mm]11.5
-
ColorGray
-
MaterialPlastic Glass
-
FamilyIMPRESSION
-
Width [mm]234
-
Accurate colorGray glass
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
-
Number of modules3
-
ShapeRectangular
-
TypeStandard + Intermediate
-
Level of securityIP20
-
Height [mm]92
-
Mounting directionUniversal
-
Exact materialPC
-
PKWIU27.33.13.0
Other technical data
-
Number of units3
-
Number of units horizontal3
-
Number of modules horizontal (module system)3
-
With mounting gridYes
-
Suitable for wall ductNo
-
Label space/information surfaceNo
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)7036
-
With hinged lidNo
-
Impact strengthIK03
-
Width226 mm
-
Depth12 mm
-
Built-in height58 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical3
-
Number of modules vertical (module system)3
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationNo
-
MaterialGlass
-
Surface protectionUntreated
-
ColourGrey
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningOther
-
Height84 mm
-
Built-in width58 mm
-
Diameter bore hole (opening)60 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,134 | - |
| Width (m) | 0,092 | 0,110 |
| Length (m) | 0,234 | 0,285 |
| Depth (m) | 0,004 | 0,105 |
