IMPRESJA Triple EURO socket golden metallic GP-3Y/M/28

local index:
MEE439OSPE
Catalog No:
GP-3Y/M/28
EAN code:
5907577440367
Manufacturer: OSPEL
Depth [mm]: 44
Number of sockets: 3
Color: Golden
Price:
6,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

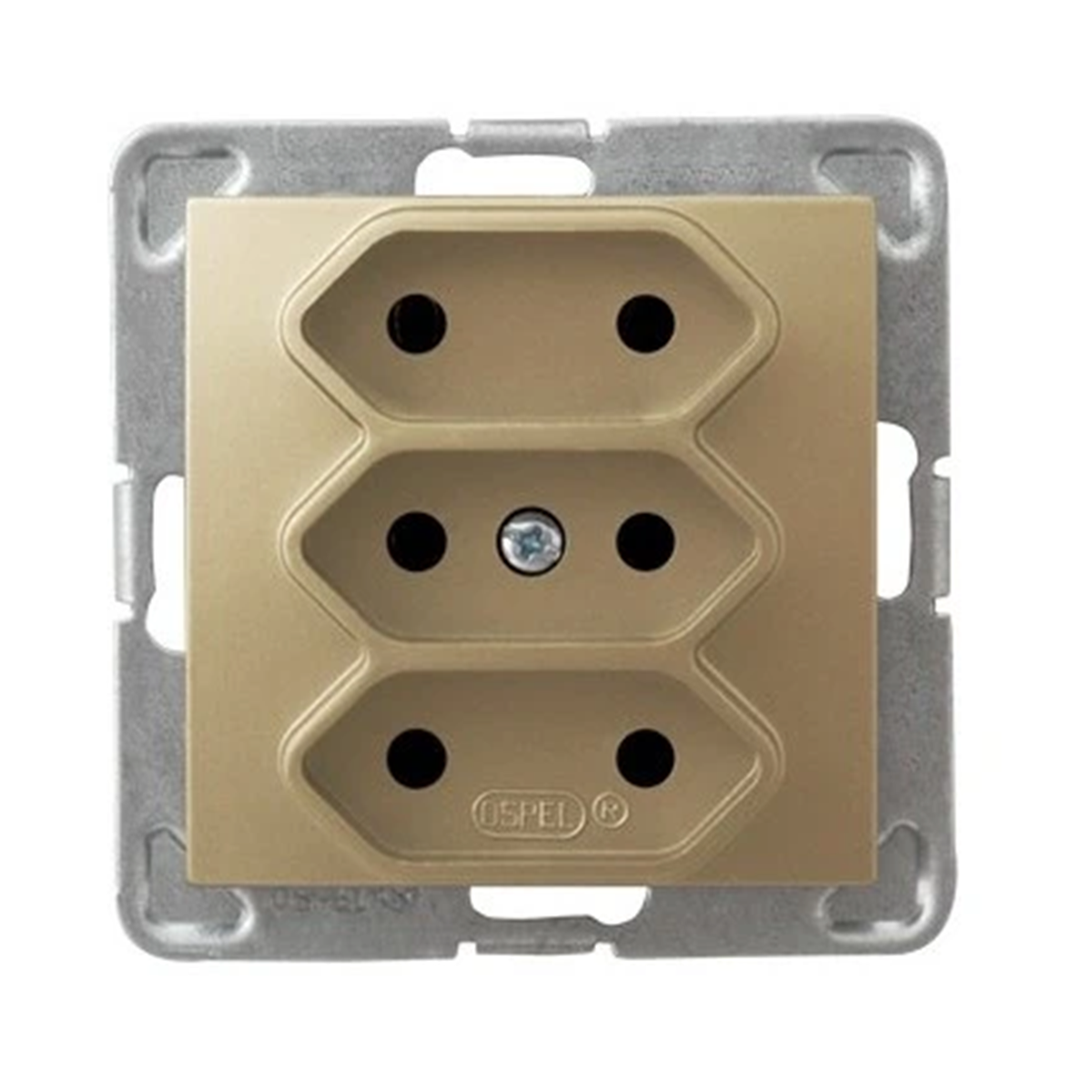

Electric socket for three flat plugs. To be equipped with a frame.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design . It gives many arrangement possibilities due to the rich colors.

The Impresja collection combines functionality, important for electrical equipment, with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    44
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    2.5
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    varnishing
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Golden metallic
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Gold
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    No
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    3
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    1036
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    45 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
