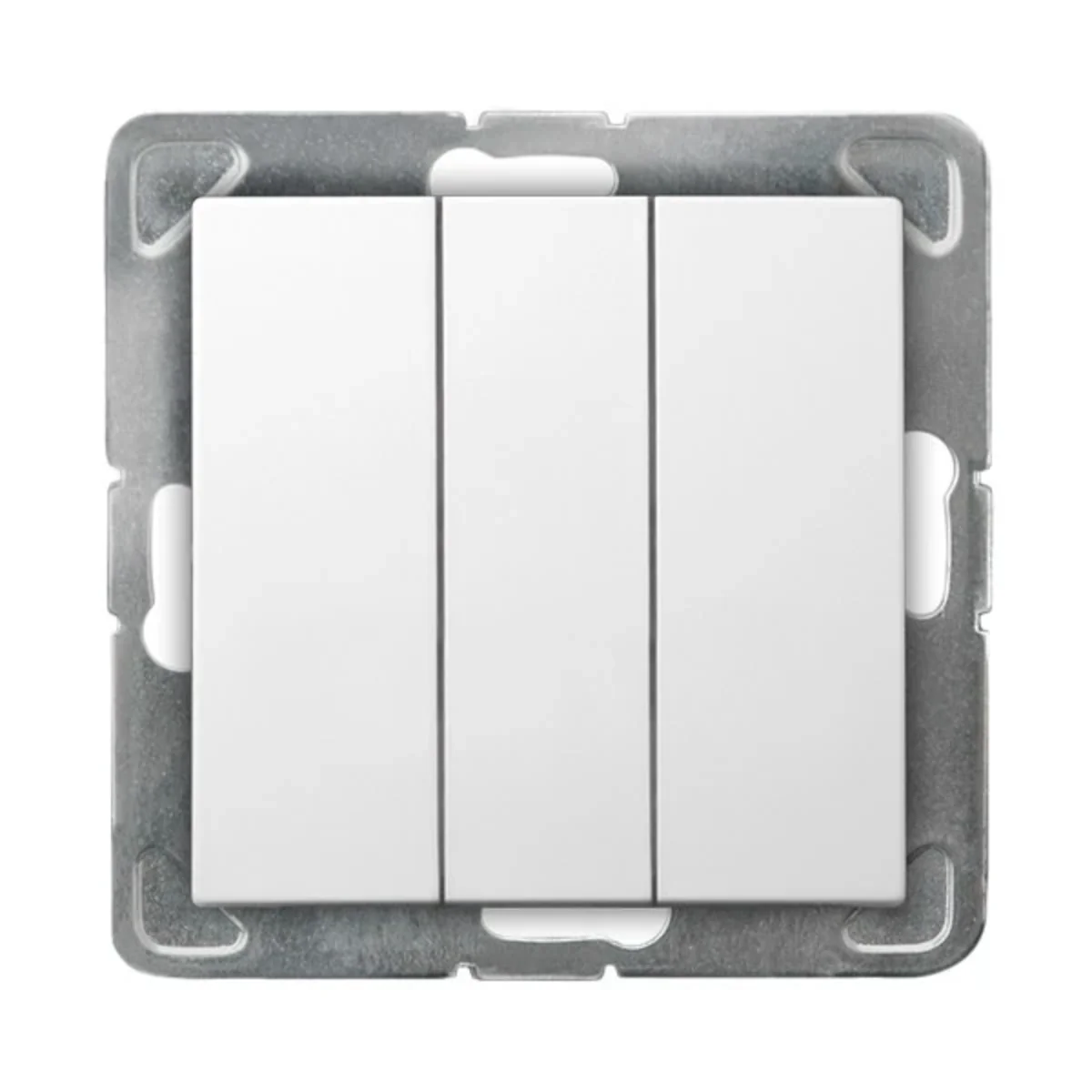

IMPRESJA Triple connector, without a white frame ŁP-13Y/M/00

Name: IMPRESJA Triple connector, without a white frame
Brand: OSPEL
SKU: MMW039OSPE
Price: 36.75 PLN
Availability: BackOrder

Indice locale:

MMW039OSPE

Numero di catalogo:

ŁP-13Y/M/00

Codice EAN:

5907577443368

IMPRESJA Triple connector, without a white frame

Clicca sulla foto per ingrandire

Produttore: OSPEL

Depth [mm]: 40

Number of keys: 3

Color: White

Vedi la descrizione completa

Prezzo:

36,75 zł

gross / pezzi

(inclusa IVA 23%)

fino a 2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

Triple connectorfrom the Impression series, from Ospel. The product catalog number is ŁP-13Y/M/00.

SERIES DESCRIPTION

Wide range of available colorsó ;w is the main advantage of the elegant Impression series. The triple connector characterizes the features of this unique collection.

Dati tecnici

Depth [mm]

40
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

IMPRESSION
Width [mm]

71
Height [mm]

71
Backlight

NO
Terminal type

Threadless
Exact material

Plastic Metal

Number of keys

3
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Multi-key
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

23
For the frame system

Yes
PKWIU

27.33.11.0

Altri dati tecnici

Wiring system

Off switch 3x1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

10 A
Feedback-signal contact

No
Washing machine switch

No
Device height

71 mm
Built-in depth

23 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

3
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

No
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device width

71 mm
Device depth

40 mm

Dettagli del produttore

Produttore

OSPEL S.A.
Indirizzo

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Imballaggio sfuso

Una specie di pacchetto	Pudełko
Quantità	10 pezzi
Larghezza (m)	0,162
Lunghezza (m)	0,237
Profondità (m)	0,090
