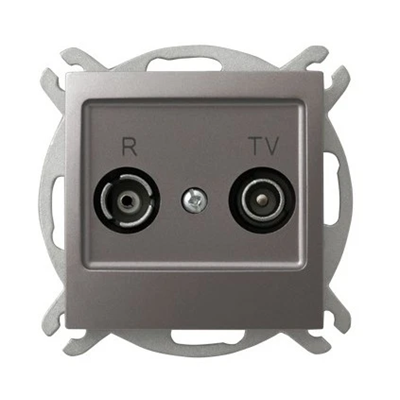

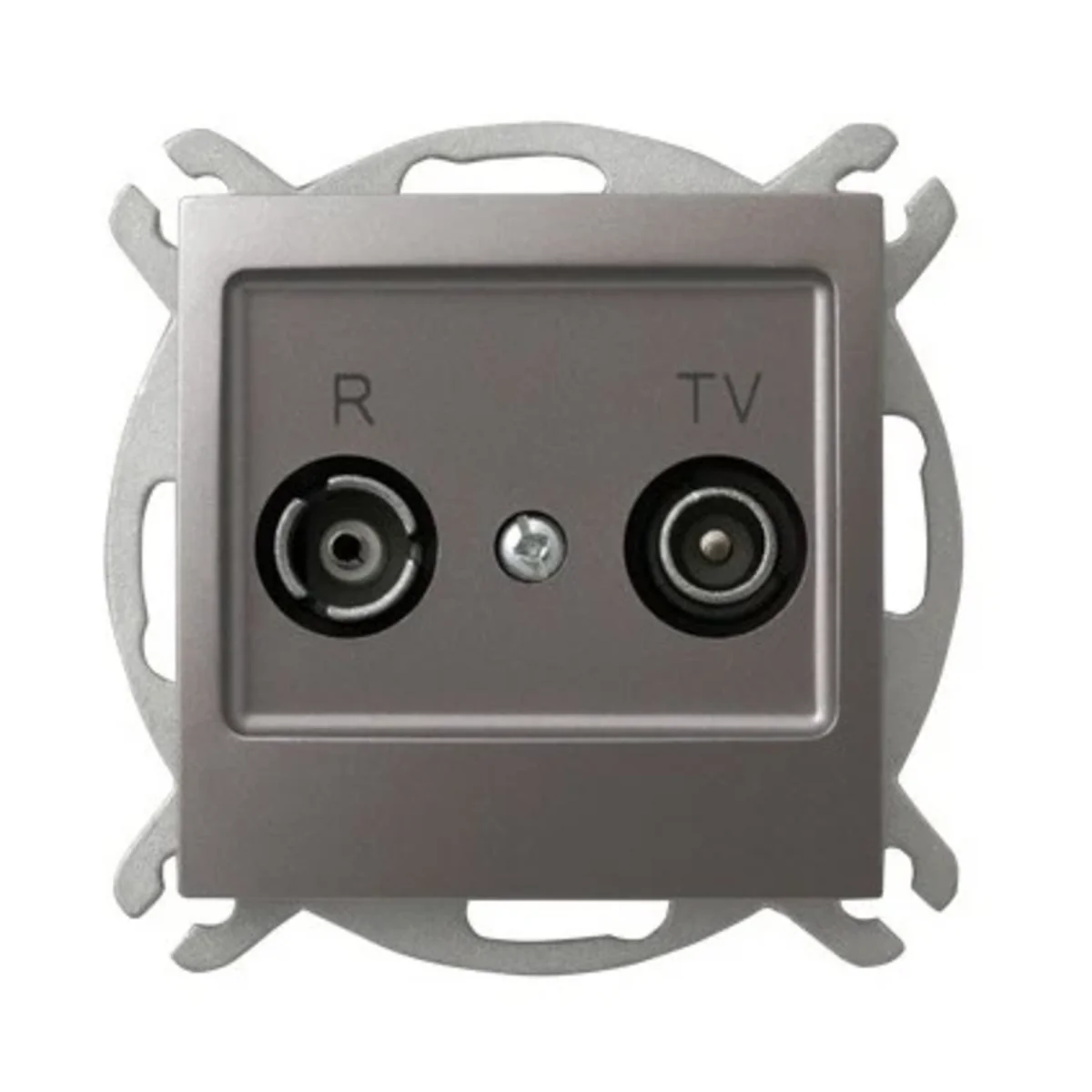

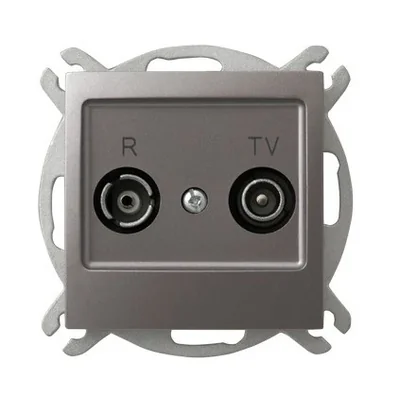

IMPRESJA Terminal RTV socket ZAR titanium GPA-YK/M/23

local index:
MEA360OSPE
Catalog No:
GPA-YK/M/23
EAN code:
5907577439095
Manufacturer: OSPEL

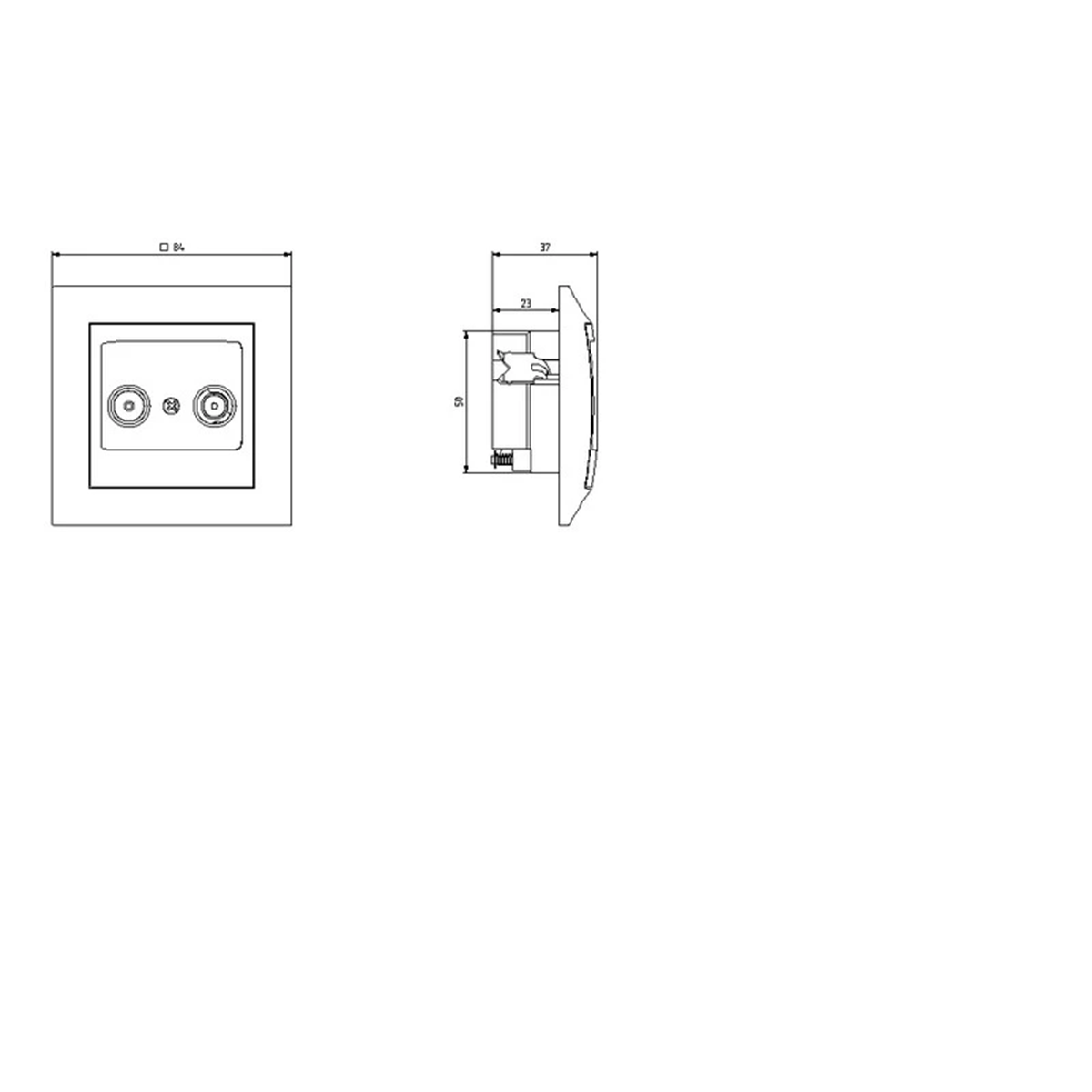

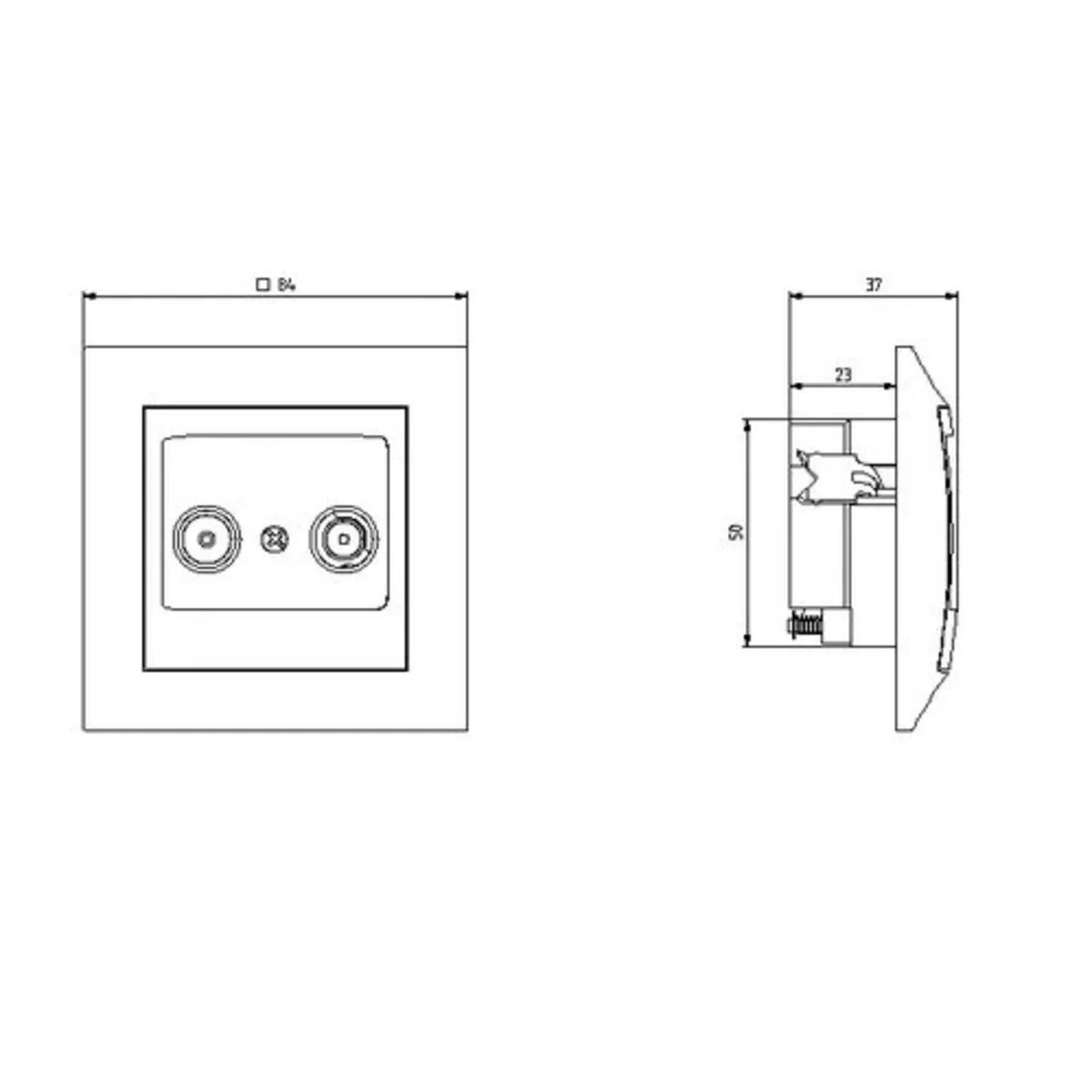

Depth [mm]: 37
Number of sockets: 2
Color: Silver
Price:
13,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

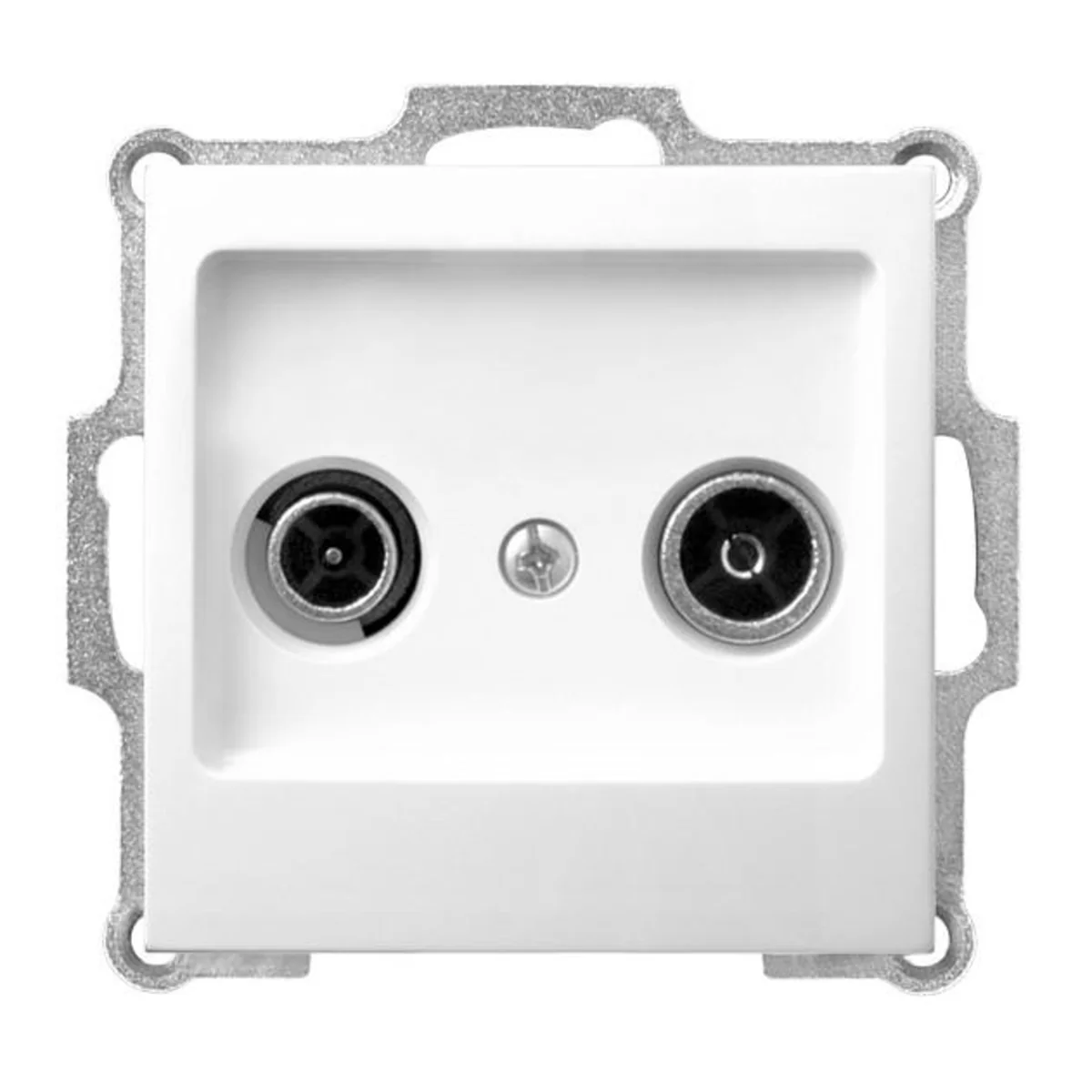

RTV antenna socket end. It is designed for parallel installation, in which an independent cable from the antenna runs to each receiver. To be equipped with a frame.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design . It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    37
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1-1.5 TV: 1-1.5
  • Version
    Final
  • Surface protection
    varnishing
  • Accurate color
    Titanium
  • Mounting depth [mm]
    23
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For output R: 88-108 For entry: 5-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    2.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    7048
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Titanium
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
