OSPEL

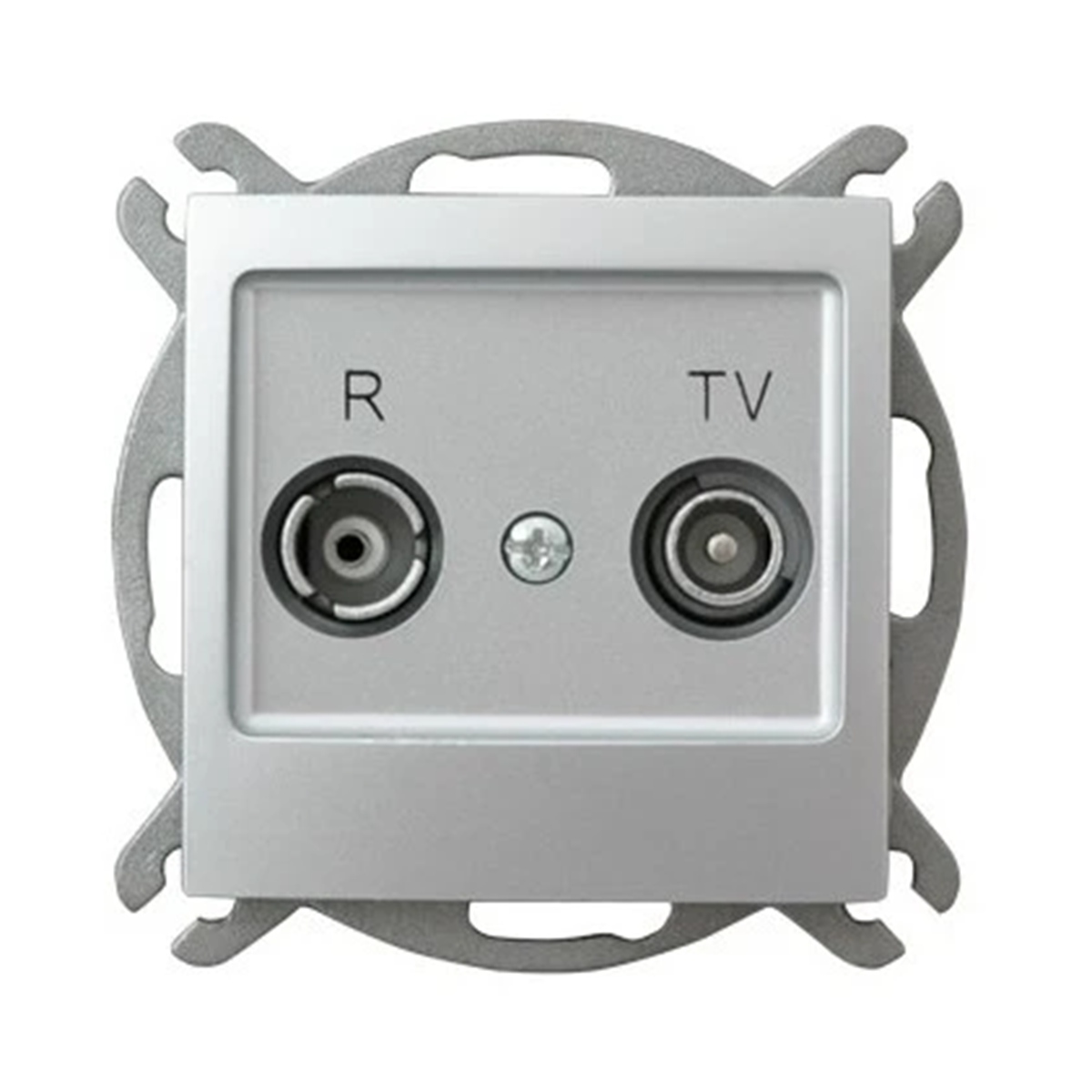

IMPRESJA Terminal RTV socket ZAK-10 silver GPA-10YPZ/M/18

local index:
MEA072OSPE
Catalog No:
GPA-10YPZ/M/18
EAN code:
5907577439859
Price:
16,45 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

RTV antenna terminal socket. It is intended to complete a serial installation. To be equipped with a frame.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design . It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

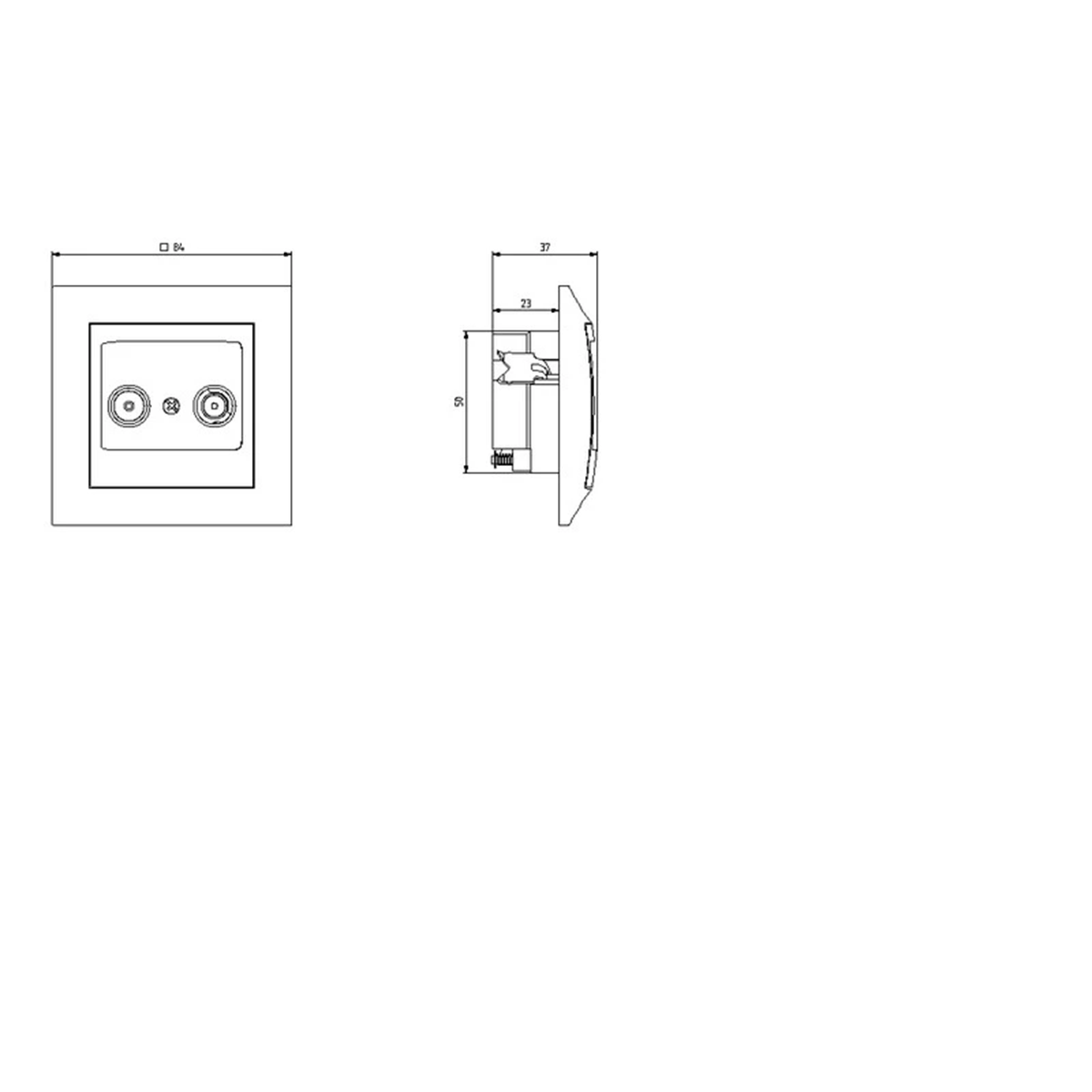

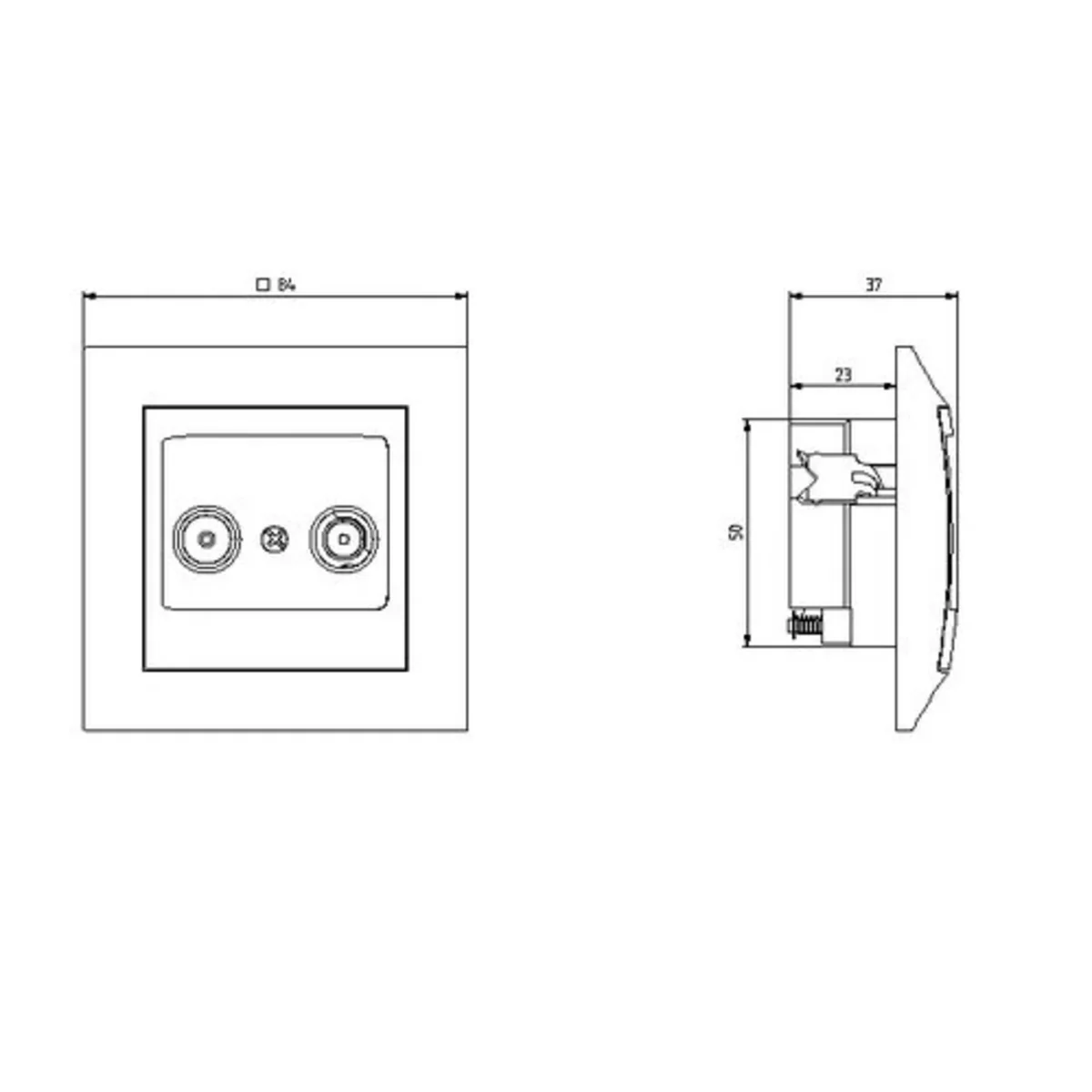

Technical data

  • Depth [mm]
    38
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 10 TV: 10
  • Version
    Final
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes

Other technical data

  • Model
    Multimedia end box
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    10 dB
  • Suitable for remote power supply
    no
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9006
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    no
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Silver
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    yes
