IMPRESJA Telephone socket, single white GPT-1Y/M/00

local index:
MET029OSPE
Catalog No:
GPT-1Y/M/00
EAN code:
5907577437480
Manufacturer: OSPEL
Depth [mm]: 34
Number of sockets: 1
Color: White
Price:
8,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

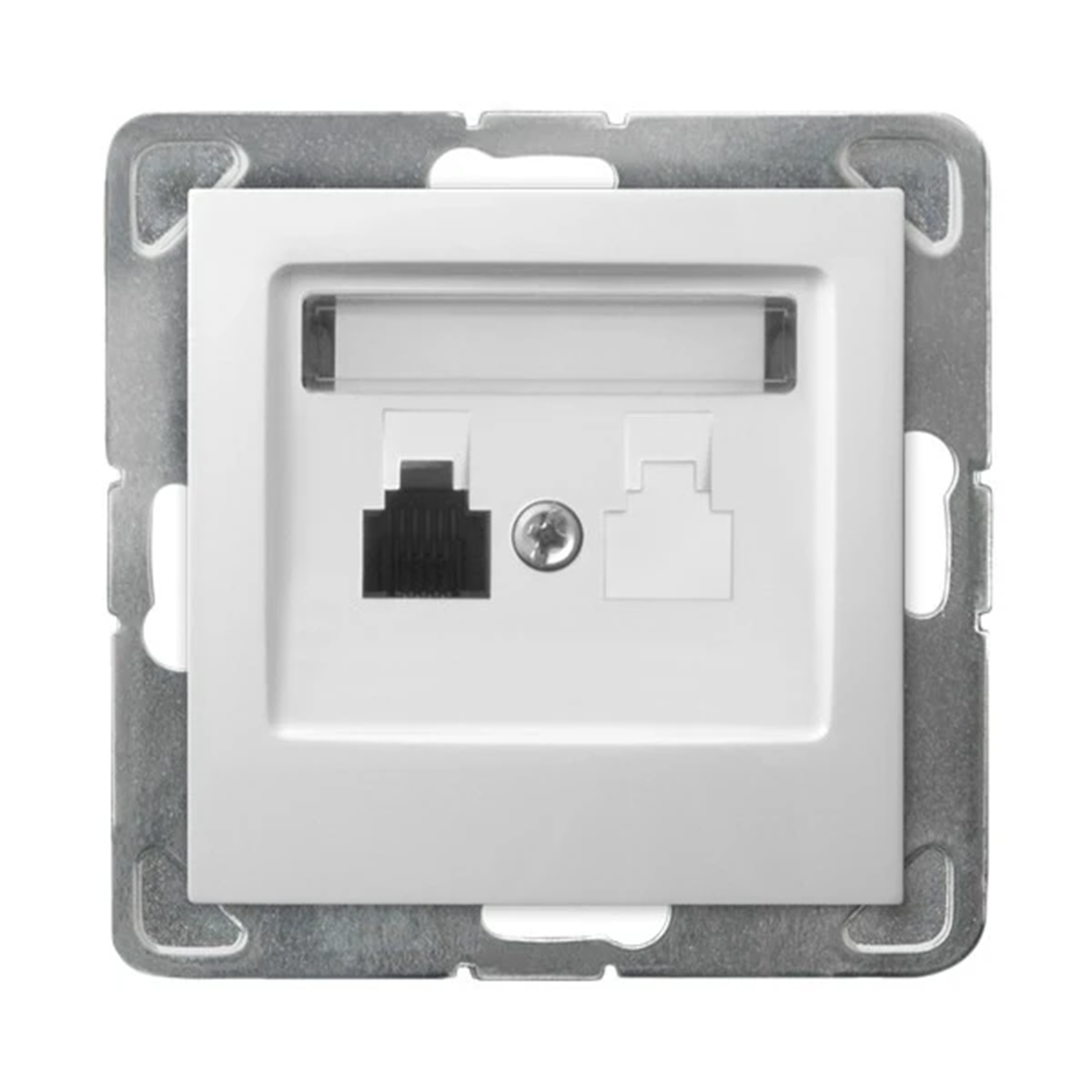

Telephone socket from the Impression series, from Ospel. The product part number is GPT-1Y/M/00.



FEATURES

  • Single.
  • RJ11.
  • Frameless module.
  • Screw terminals.
  • Color white.
  • Ingress protection IP20.
  • Mounting flush.

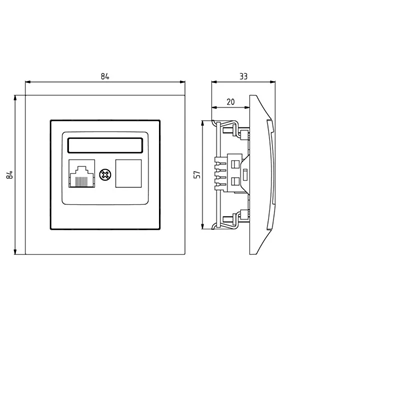

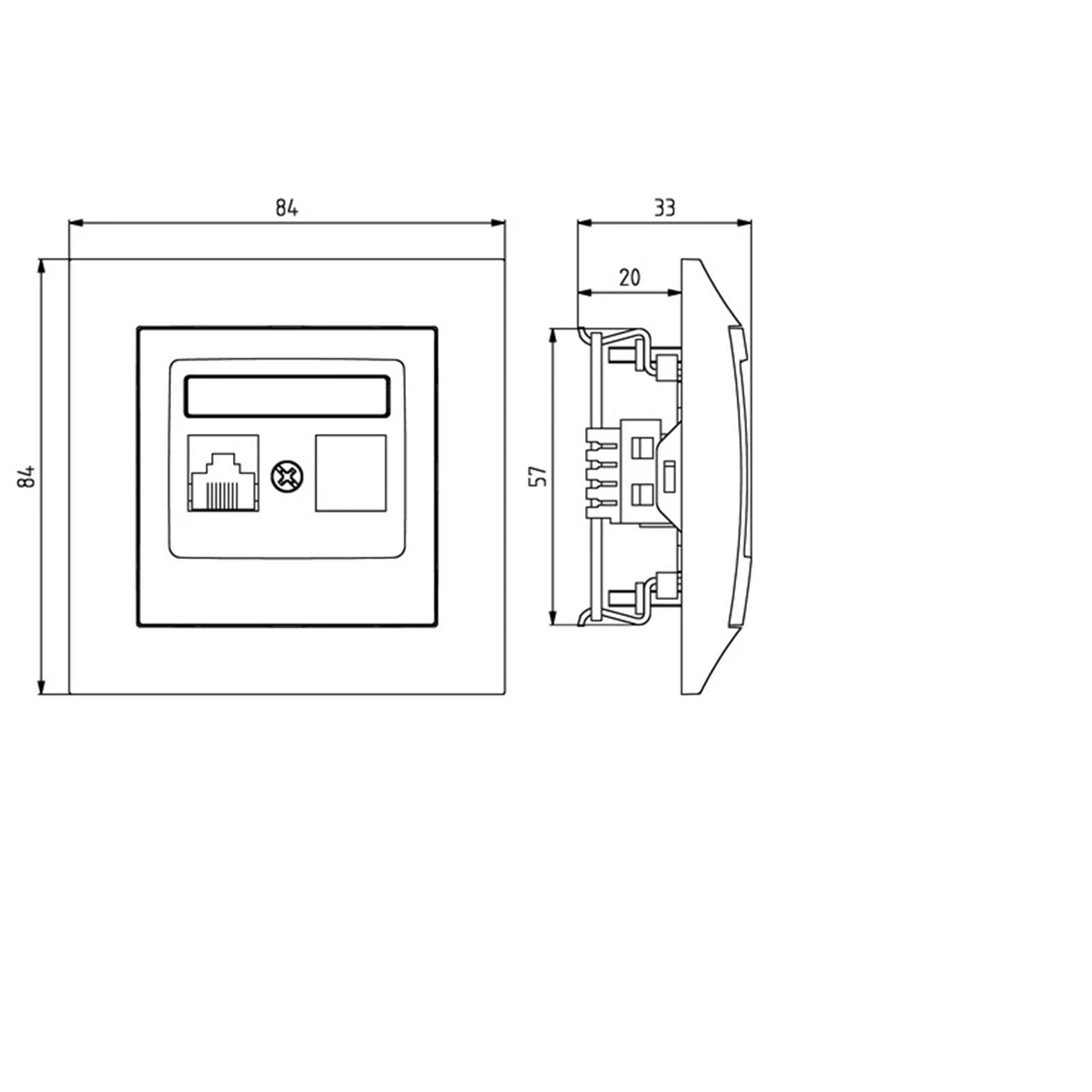

  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Impresja series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the equipment a neutral element of the interior, and on the other hand makes it a strong, arrangement detail. The telephone socket has all the features of this unique series.< /p>

Technical data

  • Depth [mm]
    34
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Mounting depth [mm]
    20
  • Variant
    RJ11
  • Extra socket
    Blank space
  • PKWIU
    26.30.30.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Model
    RJ11 6(4)
  • RAL-number
    9003
  • Centre plate
    No
  • Compatible with third-party covers
    No
  • Height
    75 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Colour
    White
  • Connection type
    Screw
  • With label space
    Yes
  • Width
    75 mm
  • Depth
    38 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
