IMPRESJA Telephone socket, double parallel silver GPT-2YR/M/18

Lokaler Index:
MET099OSPE
Katalognummer:
GPT-2YR/M/18
EAN-Code:
5907577439927
Hersteller: OSPEL
Depth [mm]: 34
Number of sockets: 2
Color: Silver
Preis:
59,77 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 2 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

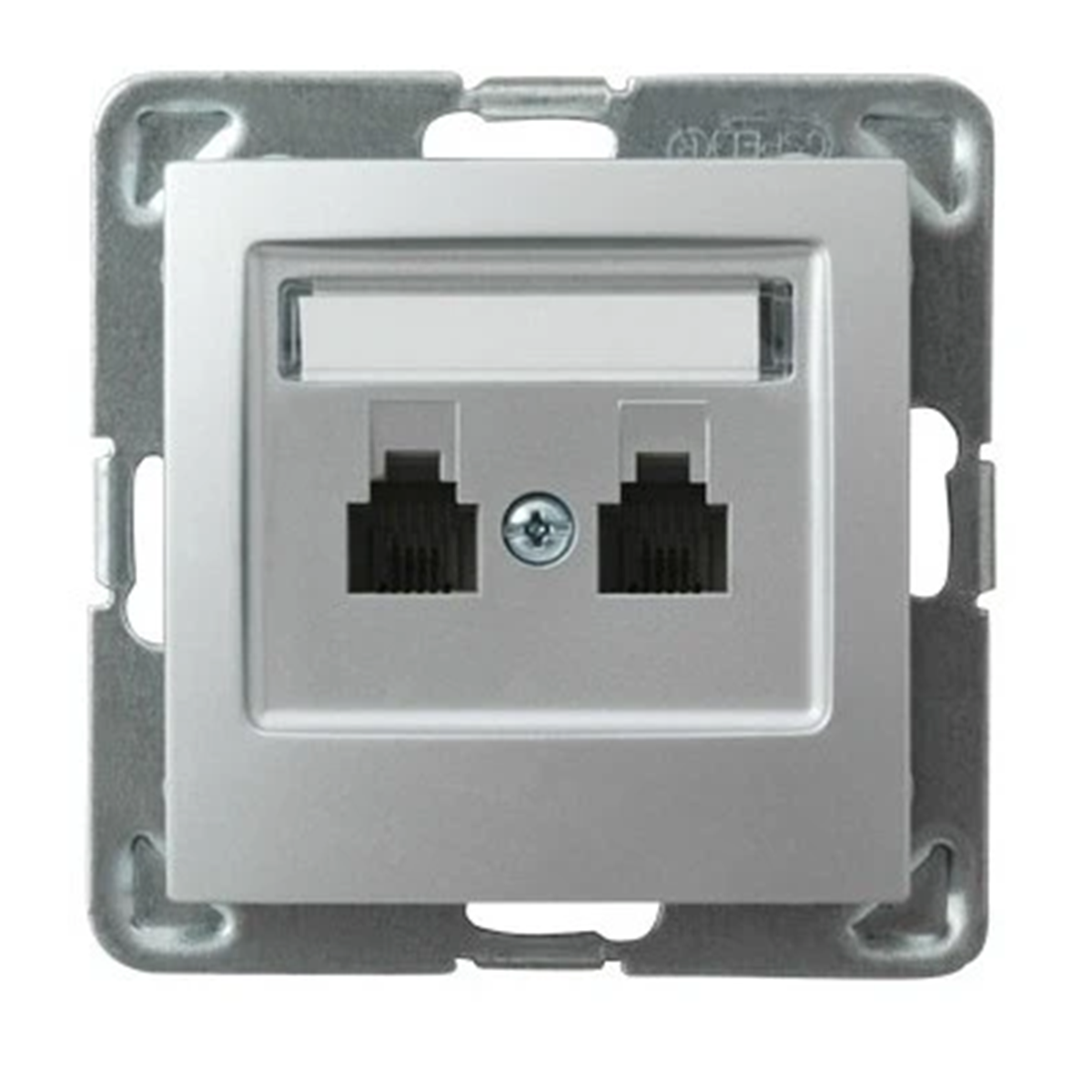

Telephone socket from the Impression series, from Ospel. The product part number is GPT-2YR/M/18.



FEATURES

  • Double.
  • RJ11.
  • Róparallel, i.e. one connected telephone line is split into two entrances.
  • Module without frame.
  • Thread terminals.
  • Color silver .
  • Ingress protection IP20.
  • flush mounting.

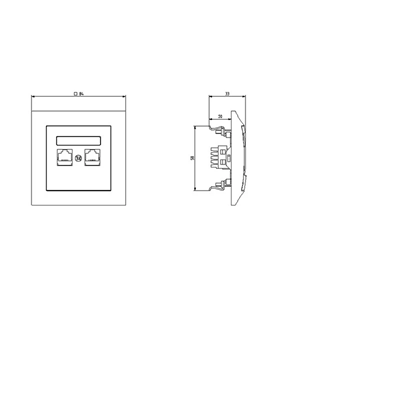

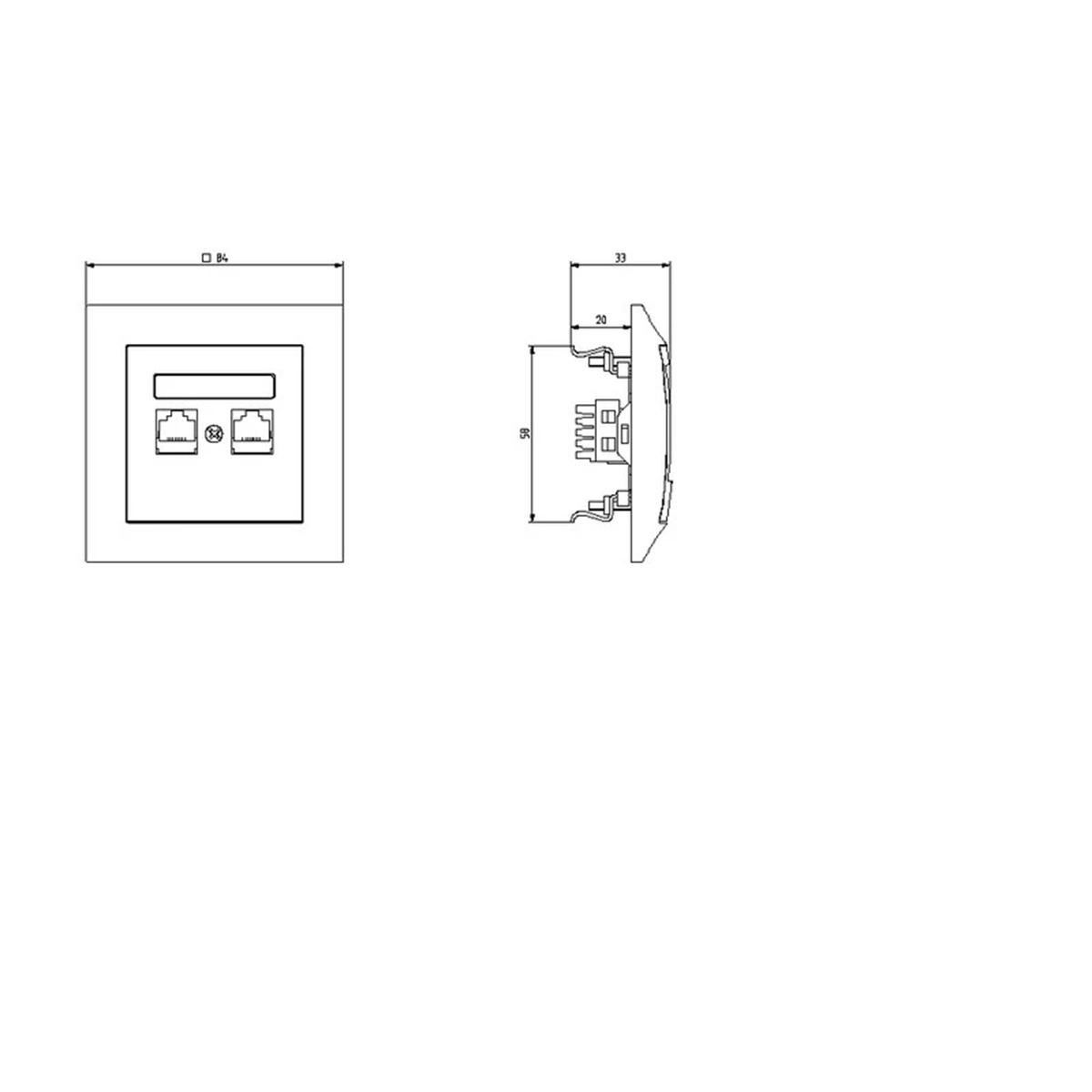

  • Dimensions: 71  ;x 71 mm (height x width).



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors. The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the equipment a neutral element of the interior, and on the other hand makes it a strong, arrangement detail. The telephone socket has all the features of this unique series.< /p>

Technische Daten

  • Depth [mm]
    34
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Mounting depth [mm]
    20
  • Variant
    RJ11
  • Additional information
    In parallel
  • PKWIU
    26.30.30.0

Weitere technische Daten

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Model
    RJ11 6(4)
  • RAL-number
    9006
  • Centre plate
    No
  • Compatible with third-party covers
    No
  • Height
    75 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Colour
    Silver
  • Connection type
    Screw
  • With label space
    Yes
  • Width
    75 mm
  • Depth
    38 mm

Hersteller-Details

  • Hersteller
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Großpackungen

Eine Art Paket Pudełko
Menge 4 stk.
Breite (m) 0,140
Länge (m) 0,162
Tiefe (m) 0,090
