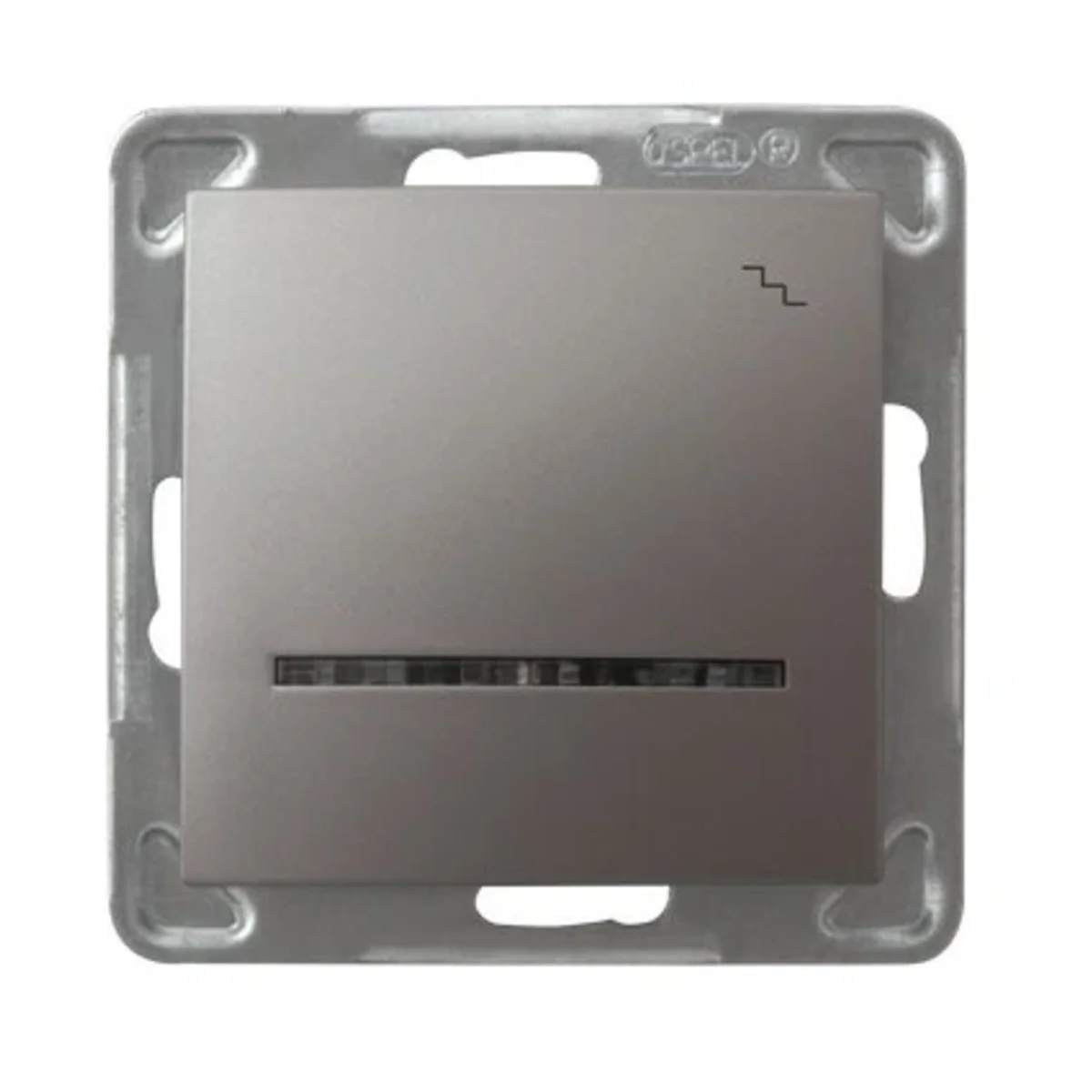

IMPRESJA Stair switch with backlight, titanium, without frame ŁP-3YS/M/23

local index:
MMS106OSPE
Catalog No:
ŁP-3YS/M/23
EAN code:
5907577437954
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Silver
Price:
8,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Impression series, from Ospel. The product catalog number is ŁP-3YS/M/23.



FEATURES

  • Single.< /li>
  • Backlit in blue (LTS lamp).
  • Symbol "stairs" on
  • Module without frame.
  • Threadless terminals.
  • Color titanium< /strong>.
  • Rated current 16AX.
  • Rated voltage 230V.
  • Mounting < strong>flush-mounted.
  • Rating of protection IP20.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    40
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal
  • Backlight color
    Blue
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Titanium
  • Mounting depth [mm]
    23
  • For the frame system
    Yes
  • Backlight type
    LTS lamp
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Titanium
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    23 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7048
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
