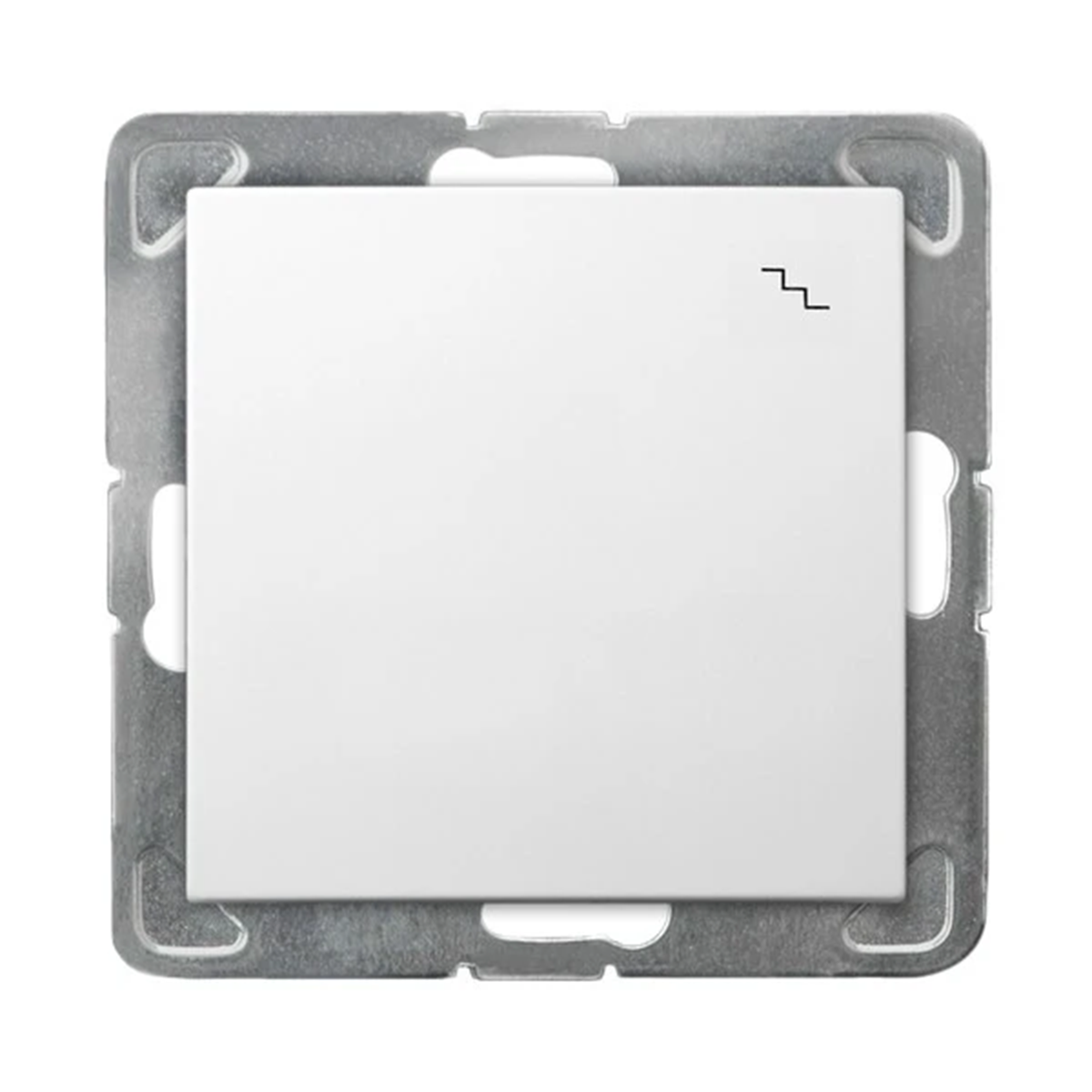

IMPRESJA Stair switch white, without a frame ŁP-3Y/M/00

local index:
MMS150OSPE
Catalog No:
ŁP-3Y/M/00
EAN code:
5907577436483
Manufacturer: OSPEL
Color: White
Material: Plastic
Installation: Flush-mounted
Price:
5,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 22 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

A switch that, in tandem with the second stair switch, allows you to control the lighting from two different places. Switching one of the pair changes the state of the circuit (open/closed) to the opposite state. Used in stairwells or corridors, e.g. you can turn on the light on the ground floor and turn it off on the upper floor.

Technical data

  • Color
    White
  • Installation
    Flush-mounted
  • highlighting
    NO
  • Family
    IMPRESSION
  • Level of security
    IP20
  • Fastener type
    Stair
  • PKWIU
    27.33.11.0
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Mounting method
    Threadless terminals
  • Type
    Fasteners
  • Accurate color
    White

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No

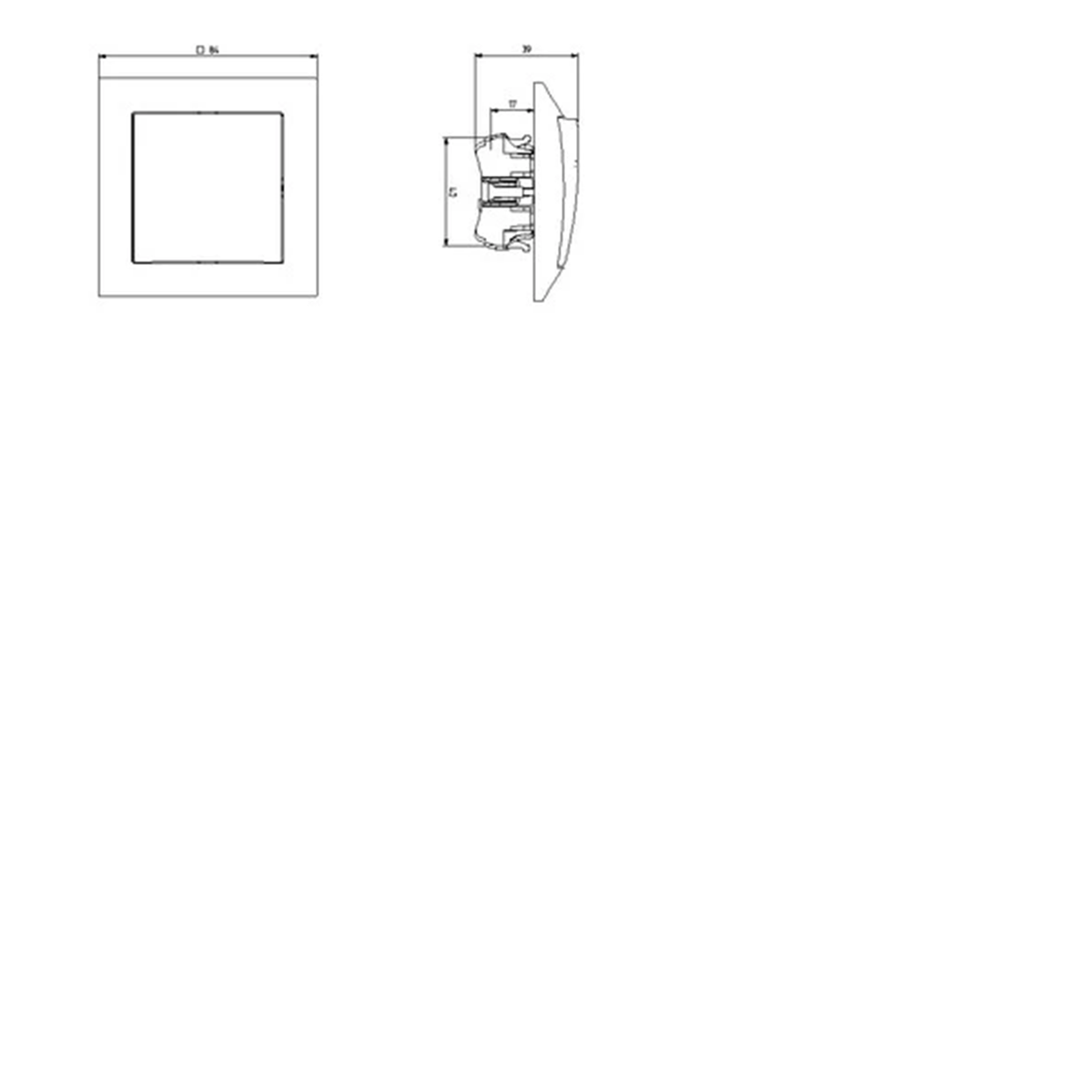

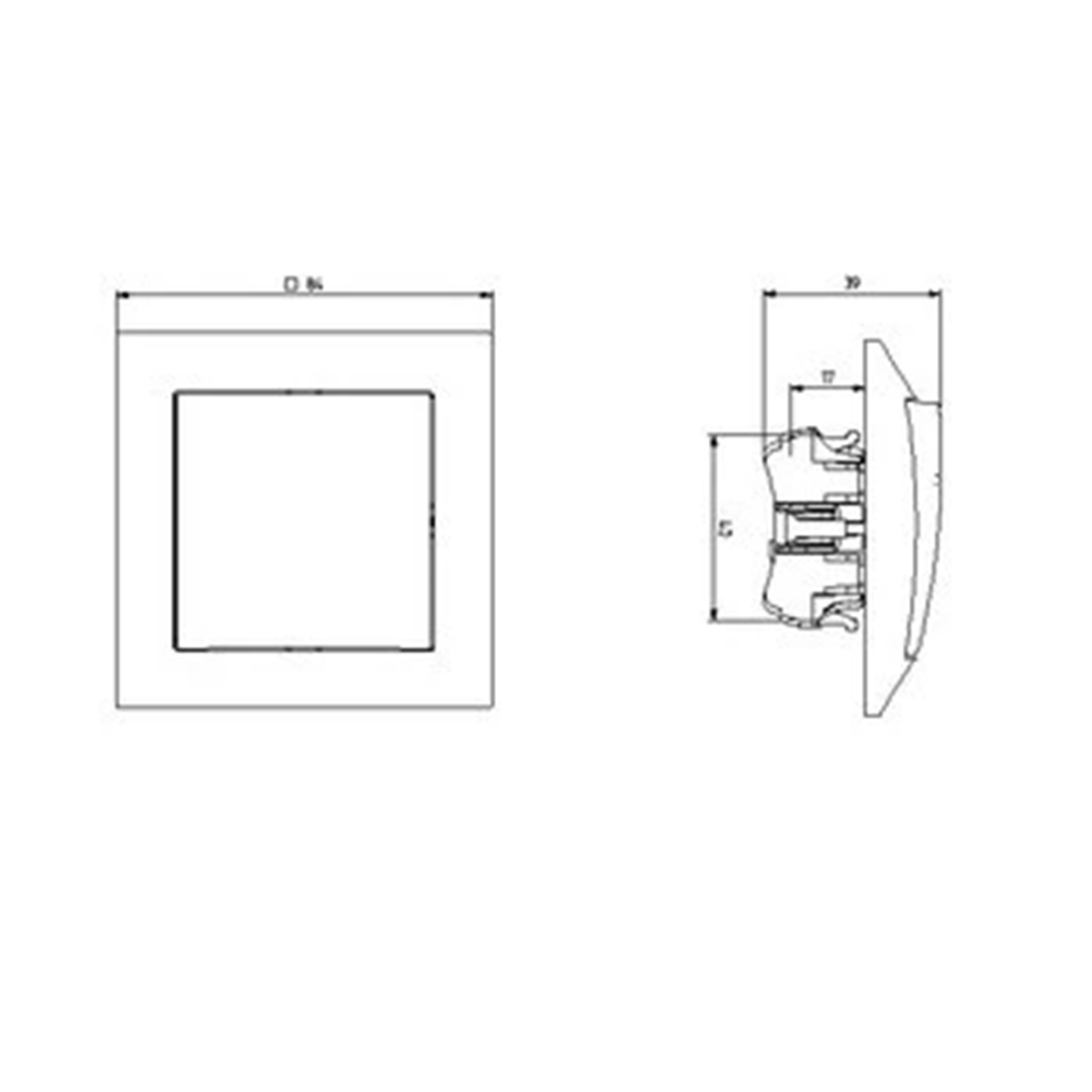

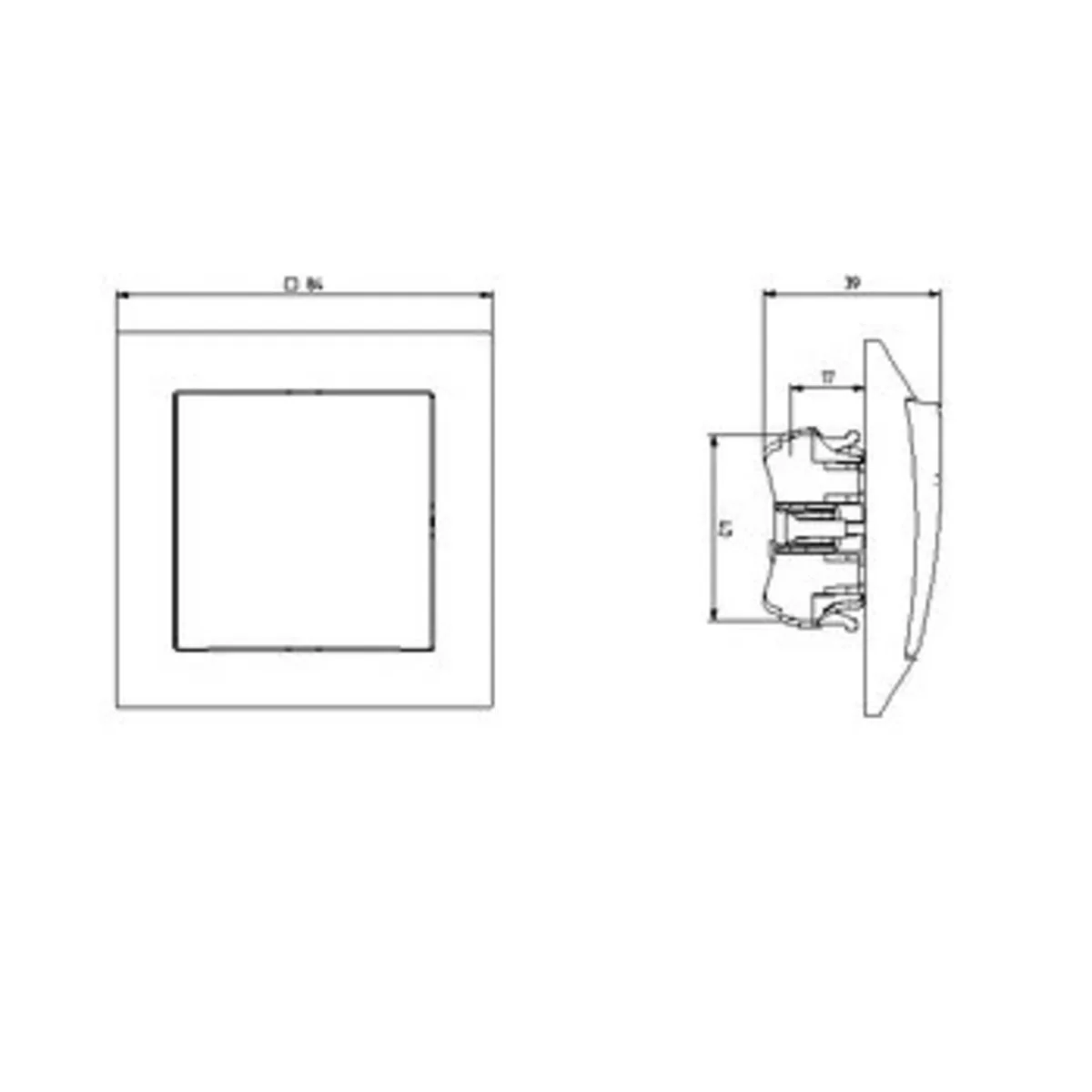

  • Device height
    71 mm
  • Built-in depth
    23 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
