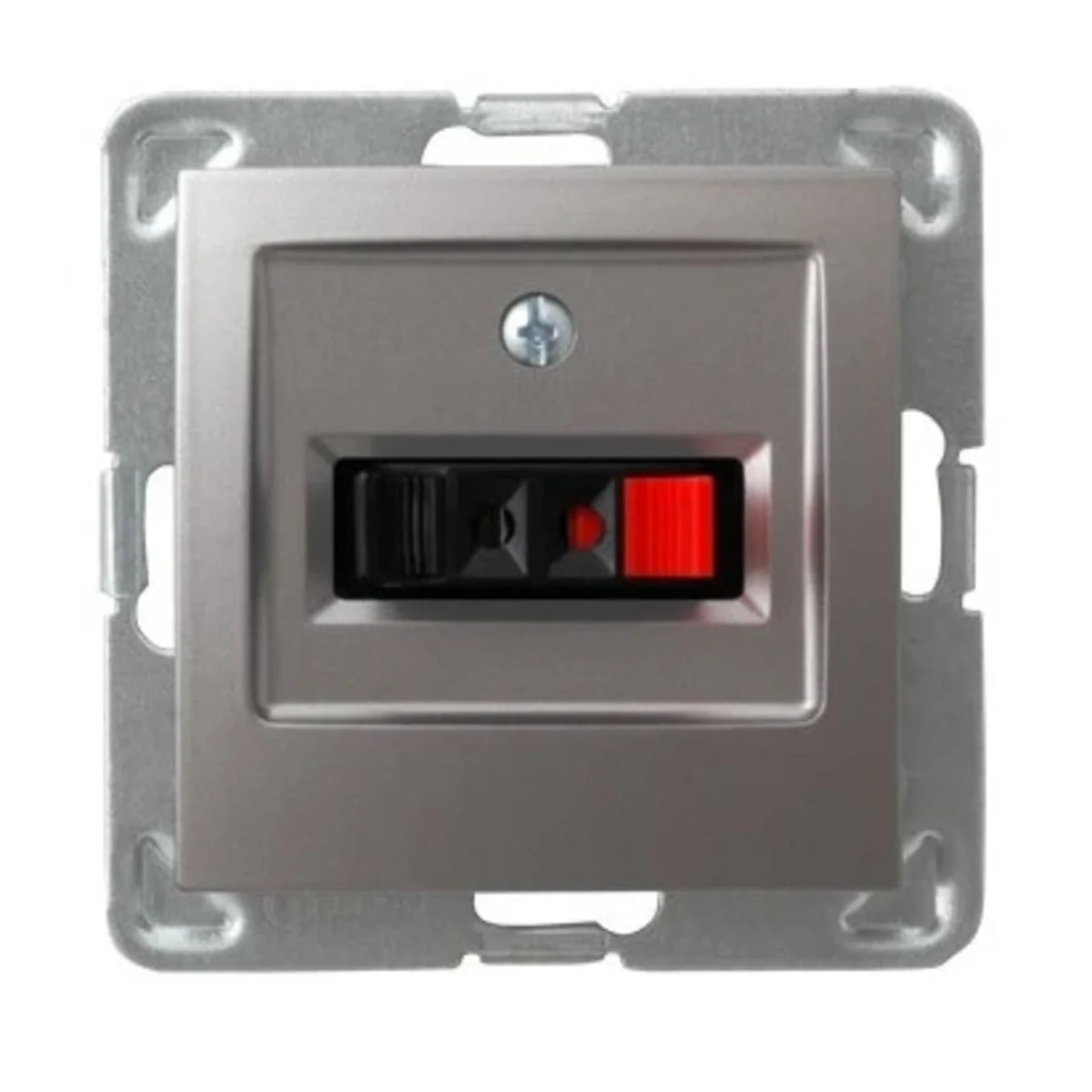

IMPRESJA Speaker terminal, single, titanium GG-1Y/M/23

local index:
MEG027OSPE
Catalog No:
GG-1Y/M/23
EAN code:
5907577439255
Manufacturer: OSPEL
Depth [mm]: 41
Number of sockets: 1
Color: Silver
Price:
9,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Speaker socket from the Impression series, from Ospel. The product part number is GG-1Y/M/23.



FEATURES

  • Single .
  • Borderless module.
  • Color titanium.
  • Mounting flushmount.
  • Wire connectivity 0.75 mm2.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. A wide selection of colors allows you to match the accessories to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The loudspeaker socket has all the features of this unique series.

Technical data

  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Titanium
  • Mounting depth [mm]
    21
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    For soldering
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with housing top
  • With buses/couplings
    Yes
  • Category
    Other
  • RAL-number
    7048
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    41 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    1
  • Colour
    Titanium
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    No
  • Device height
    71 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
