IMPRESJA Speaker socket, double gold metallic GG-2Y/M/28

Indice locale:
MEG054OSPE
Numero di catalogo:
GG-2Y/M/28
Codice EAN:
5907577440527
Produttore: OSPEL
Depth [mm]: 41
Number of sockets: 2
Color: Golden
Prezzo:
12,96 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

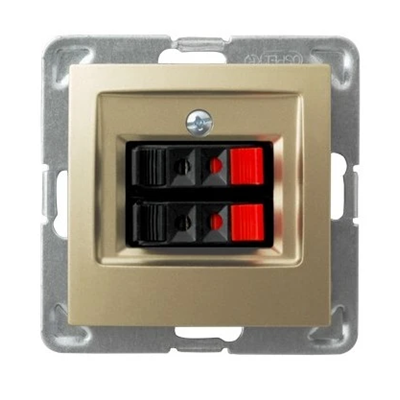

Speaker socket from the Impression series, from Ospel. The product catalog number is GG-2Y/M/28.



FEATURES

  • Double ;jne.
  • Module without frame.
  • Color gold metallic.
  • Installation flush.
  • Wire connectivity 0.75 mm2.

 < /p>

SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. A wide selection of colors allows you to match the accessories to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The loudspeaker socket has all the features of this unique series.

Dati tecnici

  • Depth [mm]
    41
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Golden metallic
  • Mounting depth [mm]
    21
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    For soldering
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Altri dati tecnici

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with housing top
  • With buses/couplings
    Yes
  • Category
    Other
  • RAL-number
    1036
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    41 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    2
  • Colour
    Gold
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    No
  • Device height
    71 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,140
Lunghezza (m) 0,162
Profondità (m) 0,090
