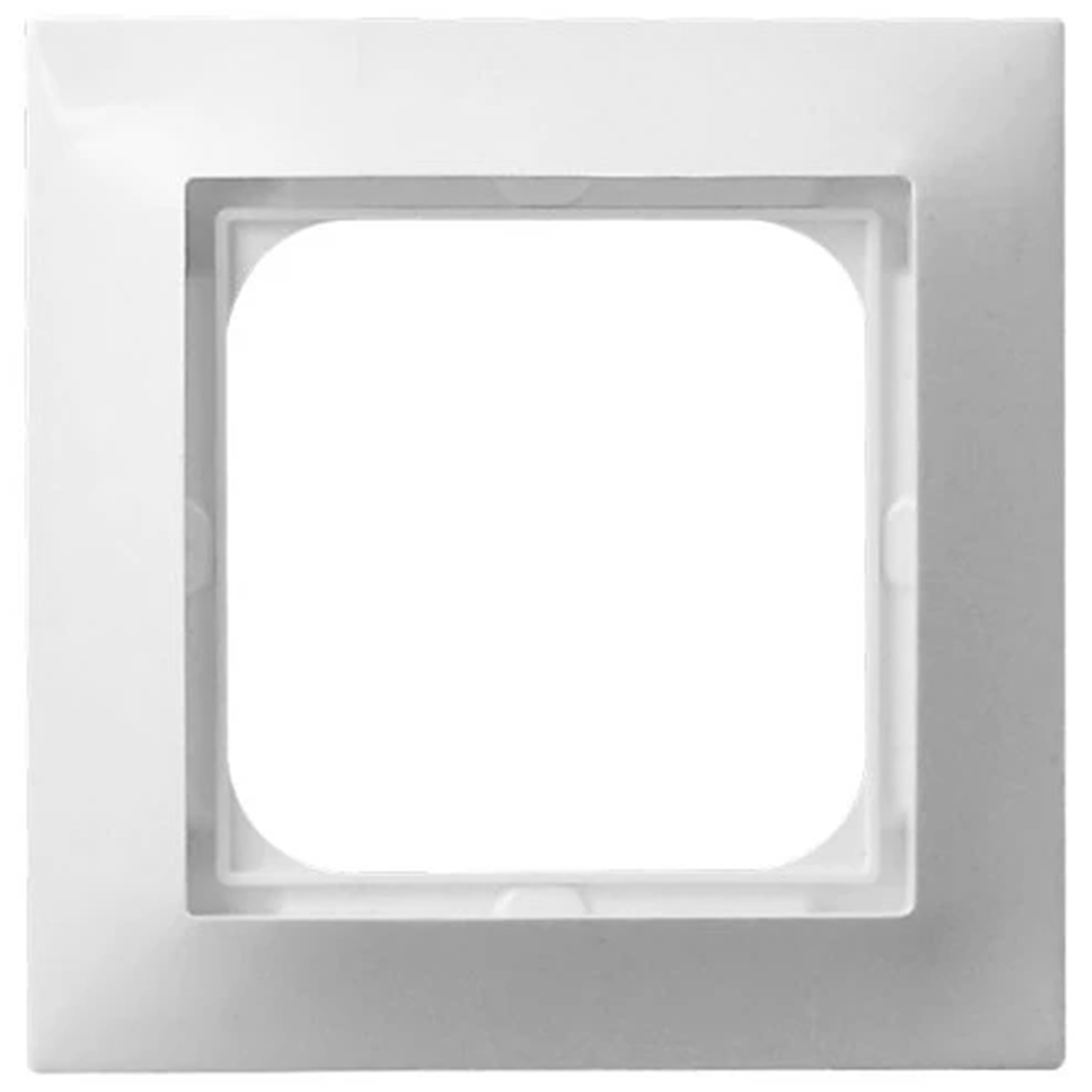

IMPRESJA Single white frame R-1Y/00

local index:
MAR006OSPE
Catalog No:
R-1Y/00
EAN code:
5907577437817
Manufacturer: OSPEL
Depth [mm]: 11.5
Number of modules: 1
Color: White
Price:
1,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single frame from the Impression series, from Ospel. The product catalog number is R-1Y/00.



SERIES DESCRIPTION

Wide range of frame colors available is the main asset of the elegant series Impression

Technical data

  • Depth [mm]
    11.5
  • Color
    White
  • Material
    Plastic
  • Family
    IMPRESSION
  • Width [mm]
    84
  • Surface protection
    Natural
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular
  • Number of modules
    1
  • Shape
    Square
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    84
  • Mounting direction
    Universal
  • Exact material
    ABS
  • PKWIU
    27.33.13.0

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    1
  • With mounting grid
    Yes
  • Suitable for wall duct
    No
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Other
  • Height
    84 mm
  • Built-in width
    58 mm
  • Diameter bore hole (opening)
    60 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • With hinged lid
    No
  • Impact strength
    IK03
  • Width
    84 mm
  • Depth
    12 mm
  • Built-in height
    58 mm

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,016 -
Width (m) 0,084 0,140
Length (m) 0,084 0,162
Depth (m) 0,004 0,090
