IMPRESJA Single socket with ecru grounding GP-1YZ/M/27

local index:
MEE442OSPE
Catalog No:
GP-1YZ/M/27
EAN code:
5907577438296
Manufacturer: OSPEL
Depth [mm]: 37
Number of sockets: 1
Color: Beige
Price:
4,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

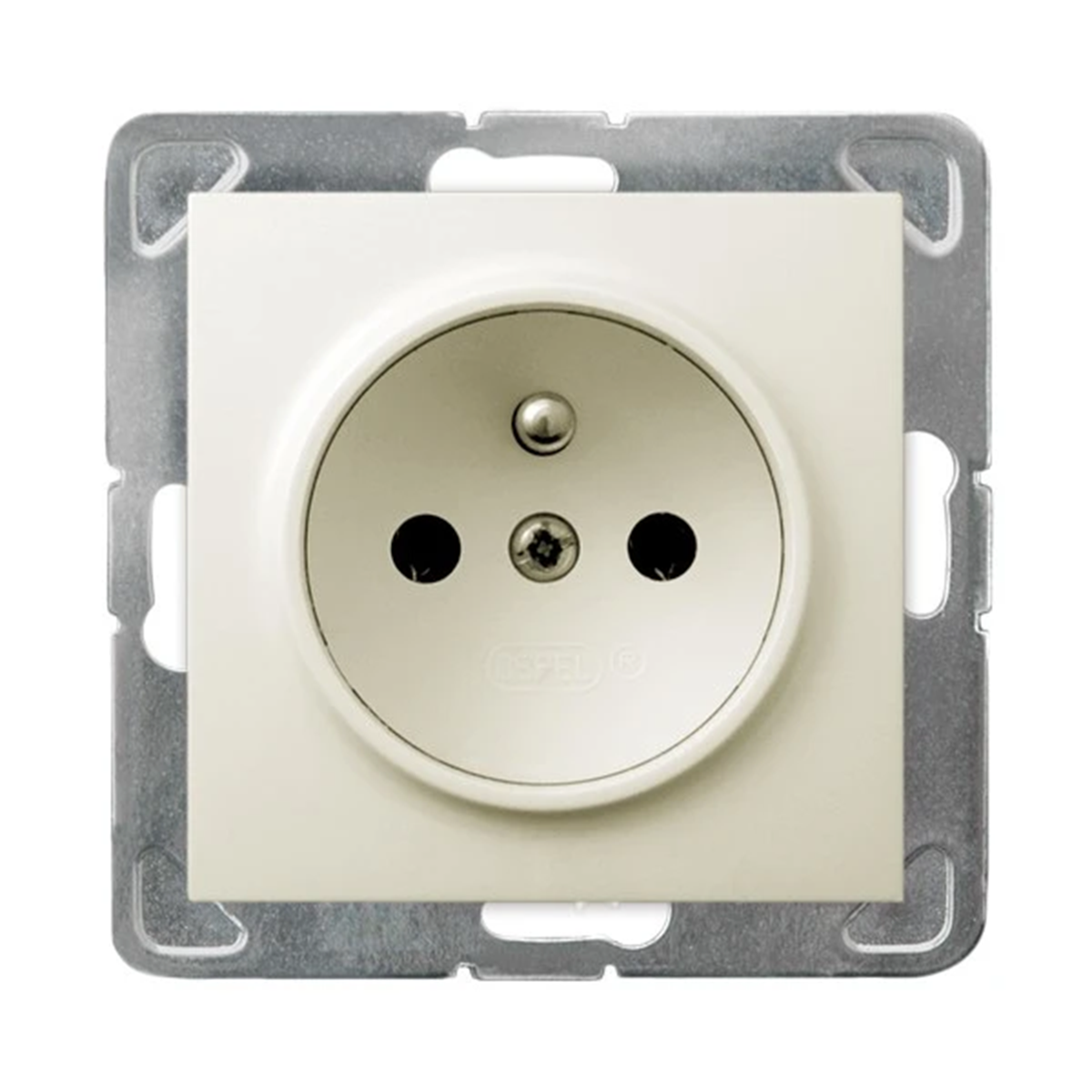

Electrical socket from the Impression series, from the manufacturer Ospel. The product part number is GP-1YZ/M/27.



FEATURES

  • Single.
  • Earth.
  • To be fitted with frame.
  • Thread terminals .
  • Colour ecru.
  • Rated current 16A.
  • Rated voltage 230V .
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71  ;x 71 mm (height x width).



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    37
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    23
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    1013
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    37 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
