IMPRESJA Single F-type antenna socket, white GPA-1YF/M/00
local index:
MEA378OSPE
Catalog No:
GPA-1YF/M/00
EAN code:
5907577458652
Price:
6,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

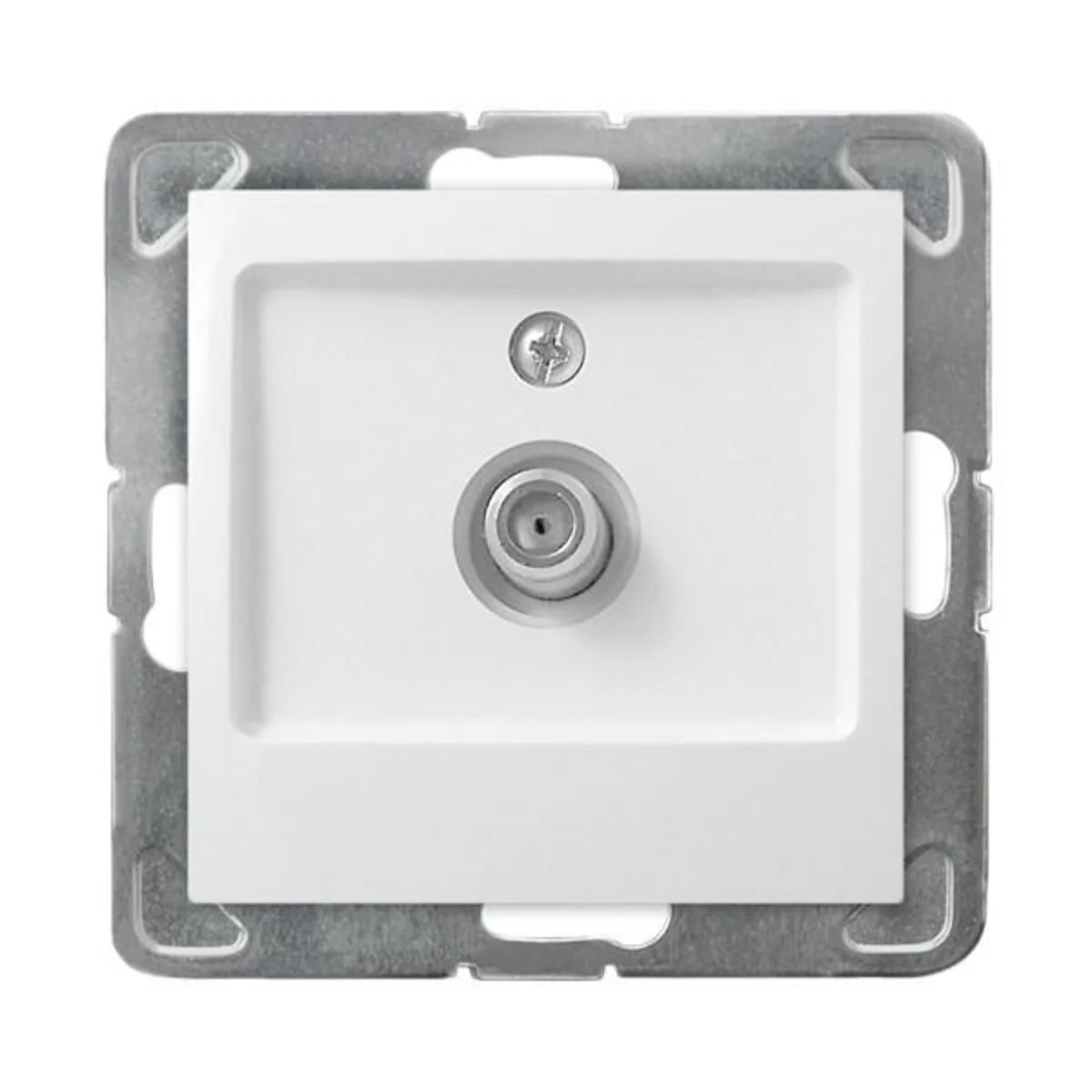

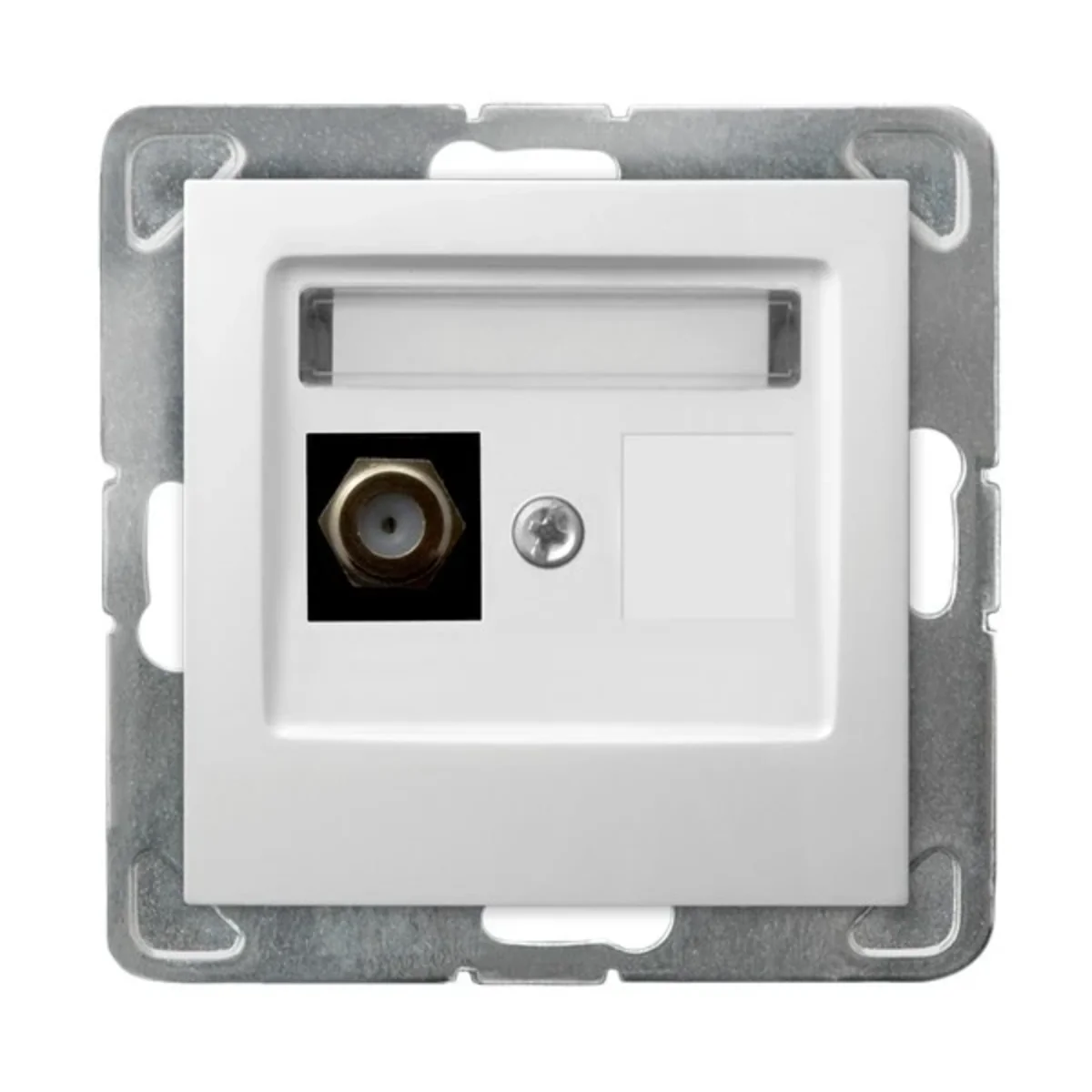

Antenna socket from the Impression series, from the manufacturer Ospel. The product part number is GPA-1YF/M/00.
FEATURES
- Single .
- Type F.
- Module without frame.
- Color white.

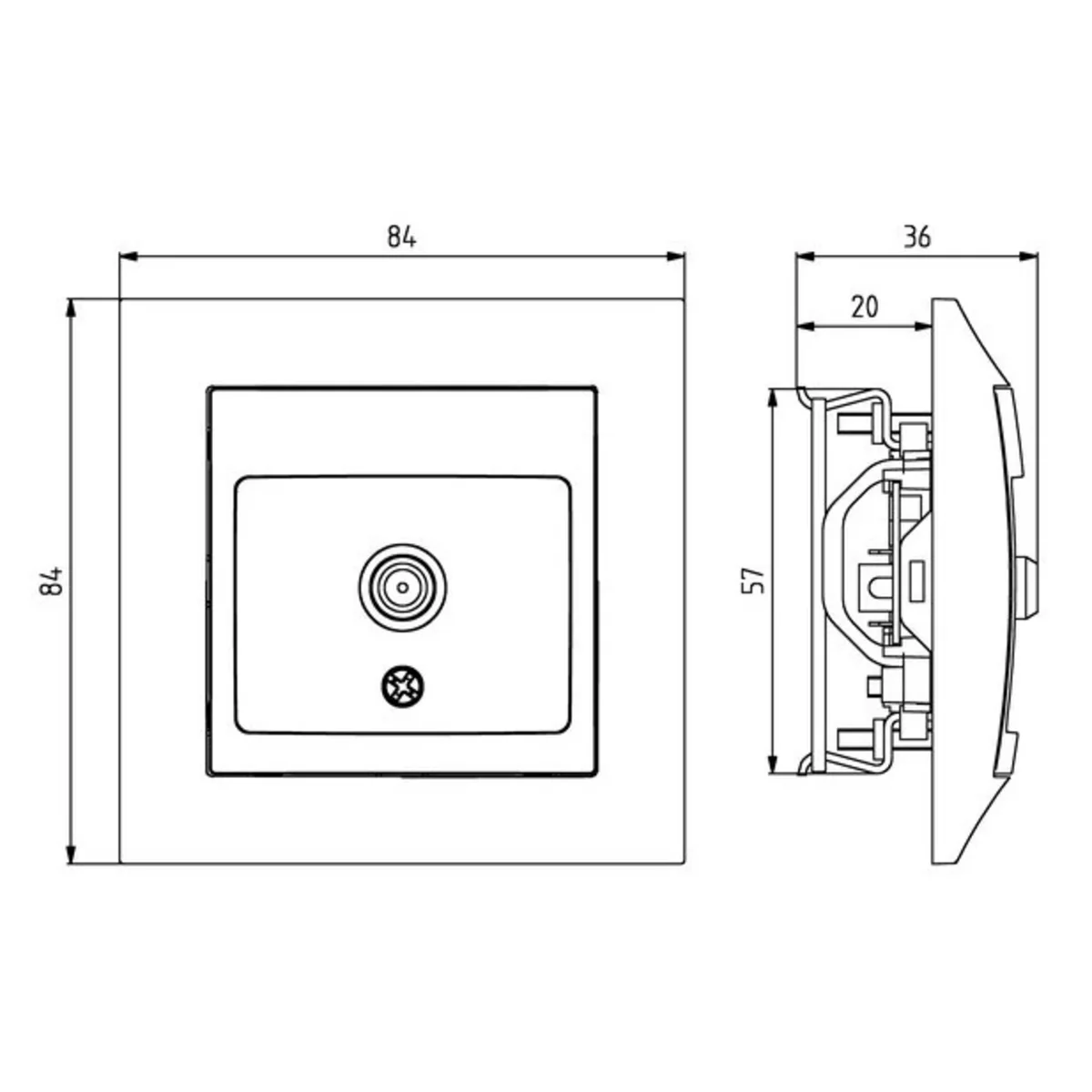

Technical data
-
Depth [mm]38
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Descriptive fieldYes
-
FamilyIMPRESSION
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputYes
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
OverprintNO
-
TypeAntenna
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Mounting depth [mm]24
-
Variantsat
-
For the frame systemYes
-
PKWIU26.40.52.0
Other technical data
-
ModelEnd socket
-
Number of modules (module system)1
-
Tap loss at 860 MHz0 dB
-
Number of outlets1
-
Through loss at 860 MHz0 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9003
-
Surface finishingGlossy
-
Material qualityThermoplastic
-
Mounting methodFlush-mounted
-
CoverComplete housing
-
Tap loss at 2150 MHz0 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz0 dB
-
Frequency5 ... 2400 MHz
-
ColourWhite
-
Surface protectionUntreated
-
MaterialPlastic
-
Halogen freeYes
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
