OSPEL

IMPRESJA Single ecru loudspeaker socket GG-1Y/M/27

local index:
MEG028OSPE
Catalog No:
GG-1Y/M/27
EAN code:
5907577438630
Price:
8,57 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

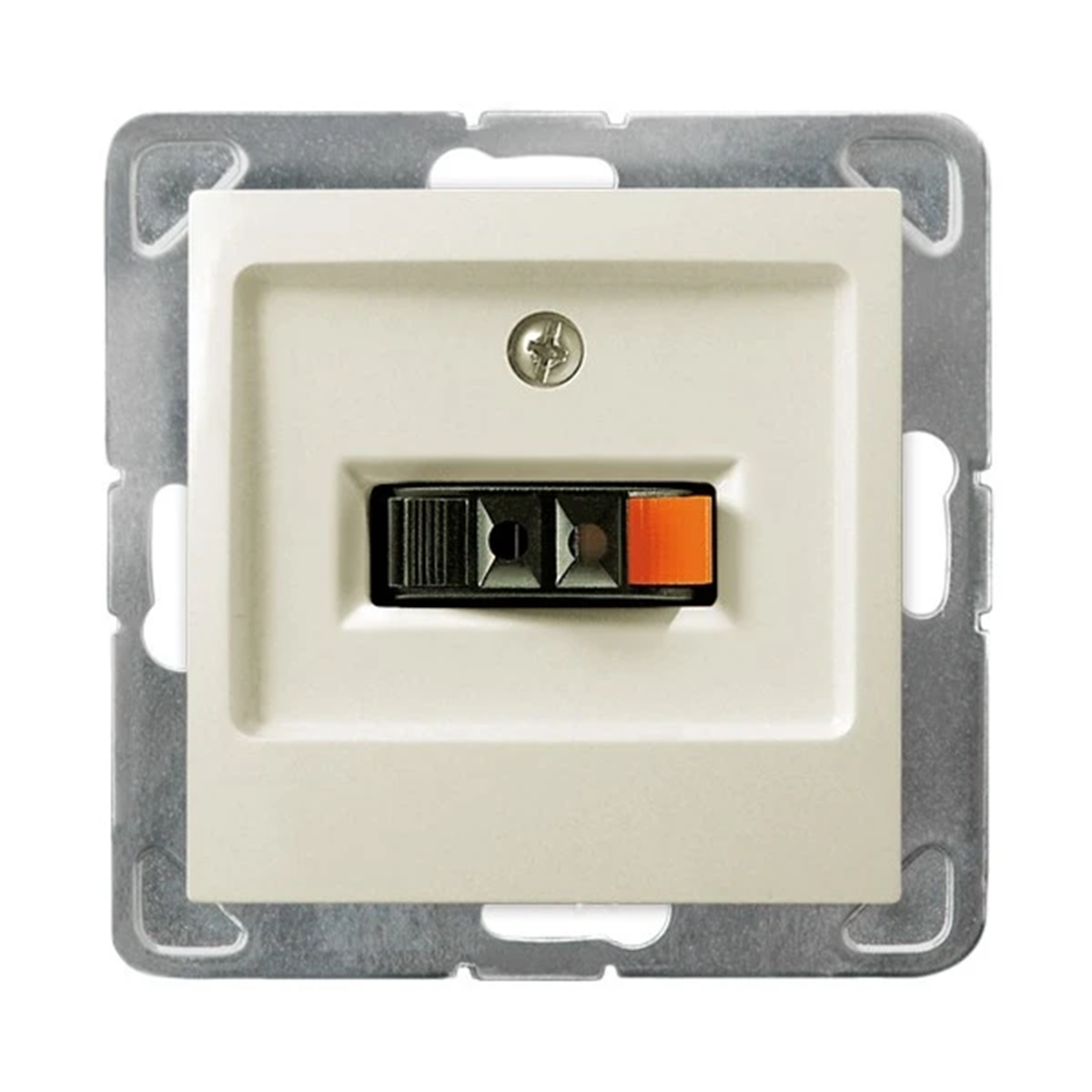

Speaker socket from the Impression series, from Ospel. The product part number is GG-1Y/M/27.



FEATURES

  • Single .
  • Module without frame.
  • Color ecru.
  • Mounting flushmount.
  • Wire connectivity 0.75 mm2.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. A wide selection of colors allows you to match the accessories to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. Speaker socket has all the features of this unique series.

Technical data

  • Depth [mm]
    41
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    21
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    For soldering
  • For the frame system
    Yes

Other technical data

  • Surface mounting
    no
  • Floor box/subfloor mounted
    no
  • Assembly arrangement
    Basic element with housing top
  • With buses/couplings
    yes
  • Category
    Other
  • RAL-number
    1013
  • Shielded buses
    no
  • Separate earthing connection
    no
  • Compatible with third-party covers
    no
  • Mounting method shielding connection
    None
  • With dust cover
    no
  • Mechanical coding
    no
  • Device width
    71 mm
  • Device depth
    41 mm
  • Duct installation
    no
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    1
  • Colour
    White
  • Connection type
    Other
  • Shielded housing
    no
  • With label space
    yes
  • Separate strain relief
    no
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    no
  • Device height
    71 mm
