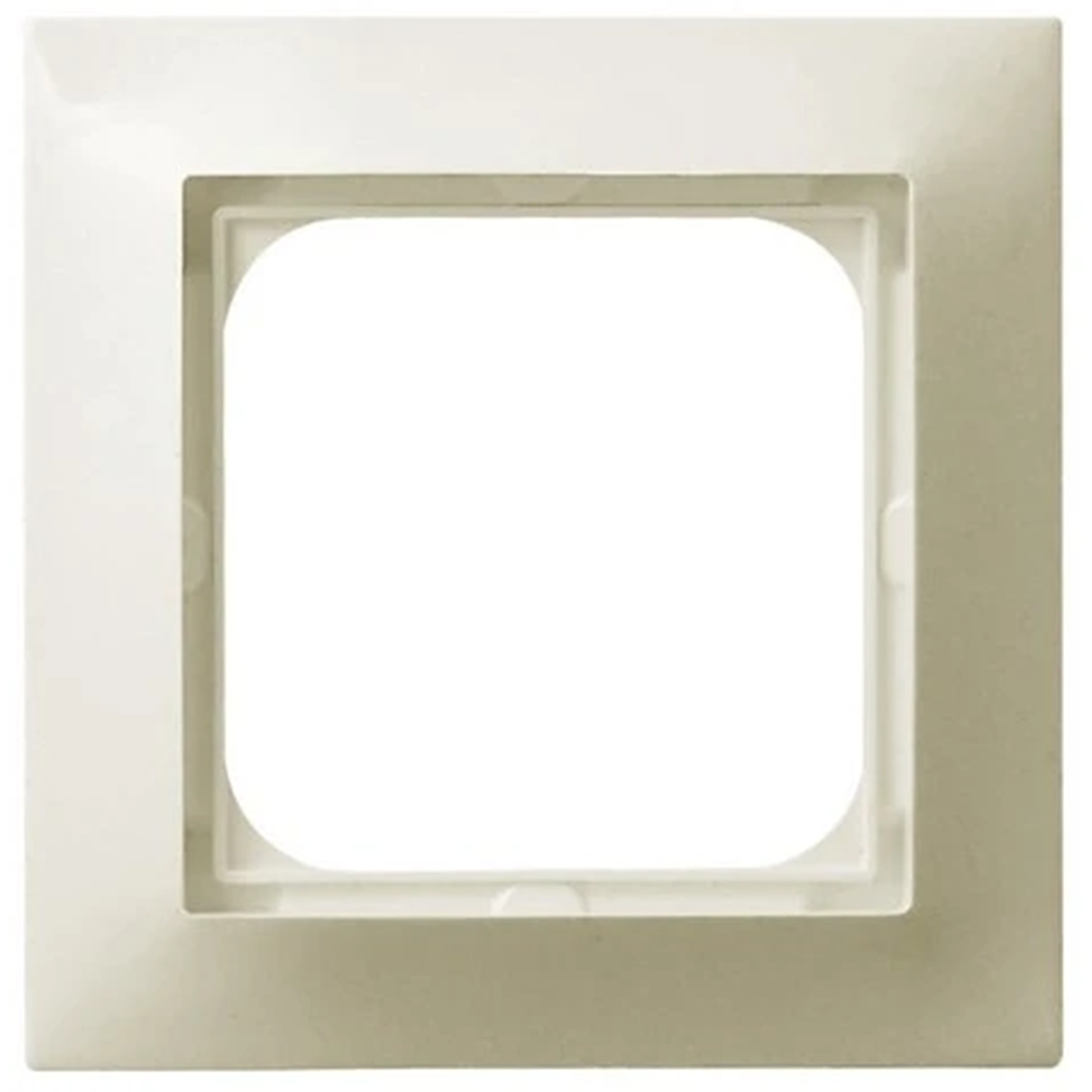

IMPRESJA Single ecru frame R-1Y/27
local index:
MAR007OSPE
Catalog No:
R-1Y/27
EAN code:
5907577438685
Price:
1,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single frame from the Impression series, from Ospel. The product catalog number is R-1Y/27.
SERIES DESCRIPTION
Wide range of frame colors available is the main asset of the elegant series Impression.
Technical data
-
Depth [mm]11.5
-
ColorBeige
-
MaterialPlastic
-
FamilyIMPRESSION
-
Width [mm]84
-
Surface protectionNatural
-
Mounting directionUniversal
-
Exact materialABS
-
PKWIU27.33.13.0
-
Number of modules1
-
ShapeSquare
-
TypeStandard
-
Level of securityIP20
-
Height [mm]84
-
Accurate colorEcru
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)1
-
With mounting gridYes
-
Suitable for wall ductNo
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningOther
-
Height84 mm
-
Built-in width58 mm
-
Diameter bore hole (opening)60 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical1
-
Number of modules vertical (module system)1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
With hinged lidNo
-
Impact strengthIK03
-
Width84 mm
-
Depth12 mm
-
Built-in height58 mm
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,016 | - |
| Width (m) | 0,084 | 0,140 |
| Length (m) | 0,084 | 0,162 |
| Depth (m) | 0,004 | 0,090 |
