IMPRESJA Single computer socket, cat. 5e white GPK-1Y/K/M/00

local index:
MEI148OSPE
Catalog No:
GPK-1Y/K/M/00
EAN code:
5907577437541
Manufacturer: OSPEL
Depth [mm]: 34
Category: 5e
Color: White
Price:
12,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 14 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

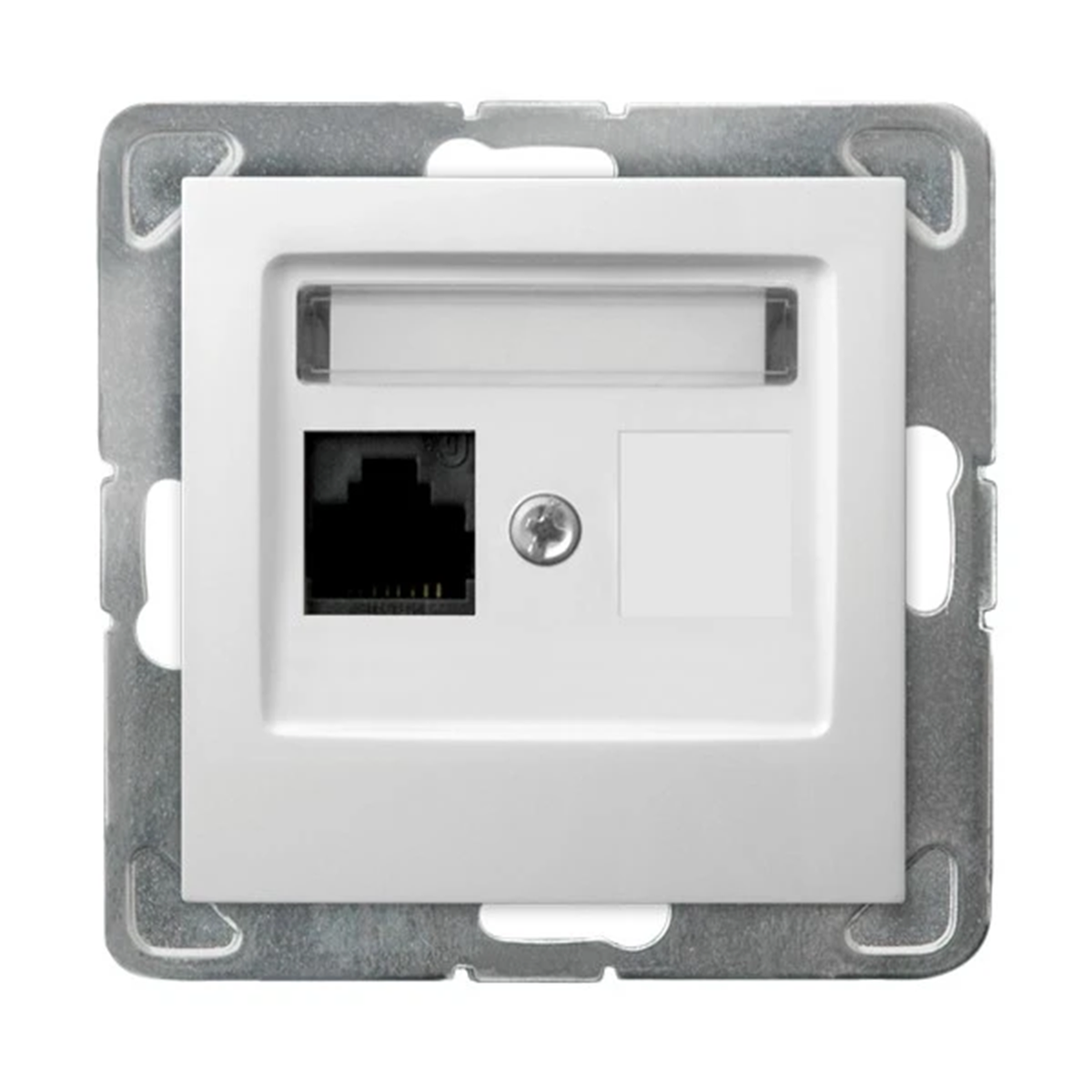

Single RJ-45 computer socket, category 5e MMC. It is used to connect a twisted pair signal cable, unshielded category 5e. Data transfer speed is 1Gb/s. The product catalog number is GPK-1Y/K/M/00.

  • Type of connection - tool-less.



SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impression collection. Computer socket characterize the features of this unique collection.

Technical data

  • Depth [mm]
    34
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Version
    UTP
  • Surface protection
    Natural
  • Mounting depth [mm]
    20
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    26.30.30.0
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Socket type
    RJ45
  • Height [mm]
    71
  • Accurate color
    White
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with housing top
  • With buses/couplings
    Yes
  • Category
    5E
  • RAL-number
    9003
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    75 mm
  • Device depth
    32 mm
  • Duct installation
    No
  • Type of fastening
    Engage (snap)
  • Type of connector
    RJ45 8(4)
  • Suitable for number of connectors
    1
  • Colour
    White
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    Yes
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    75 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
