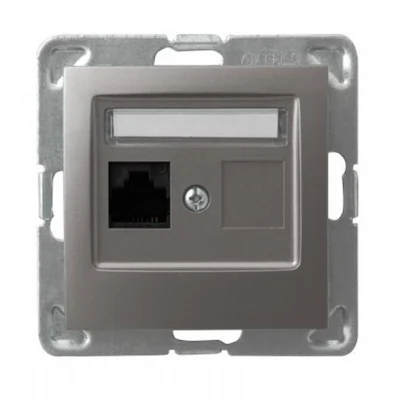

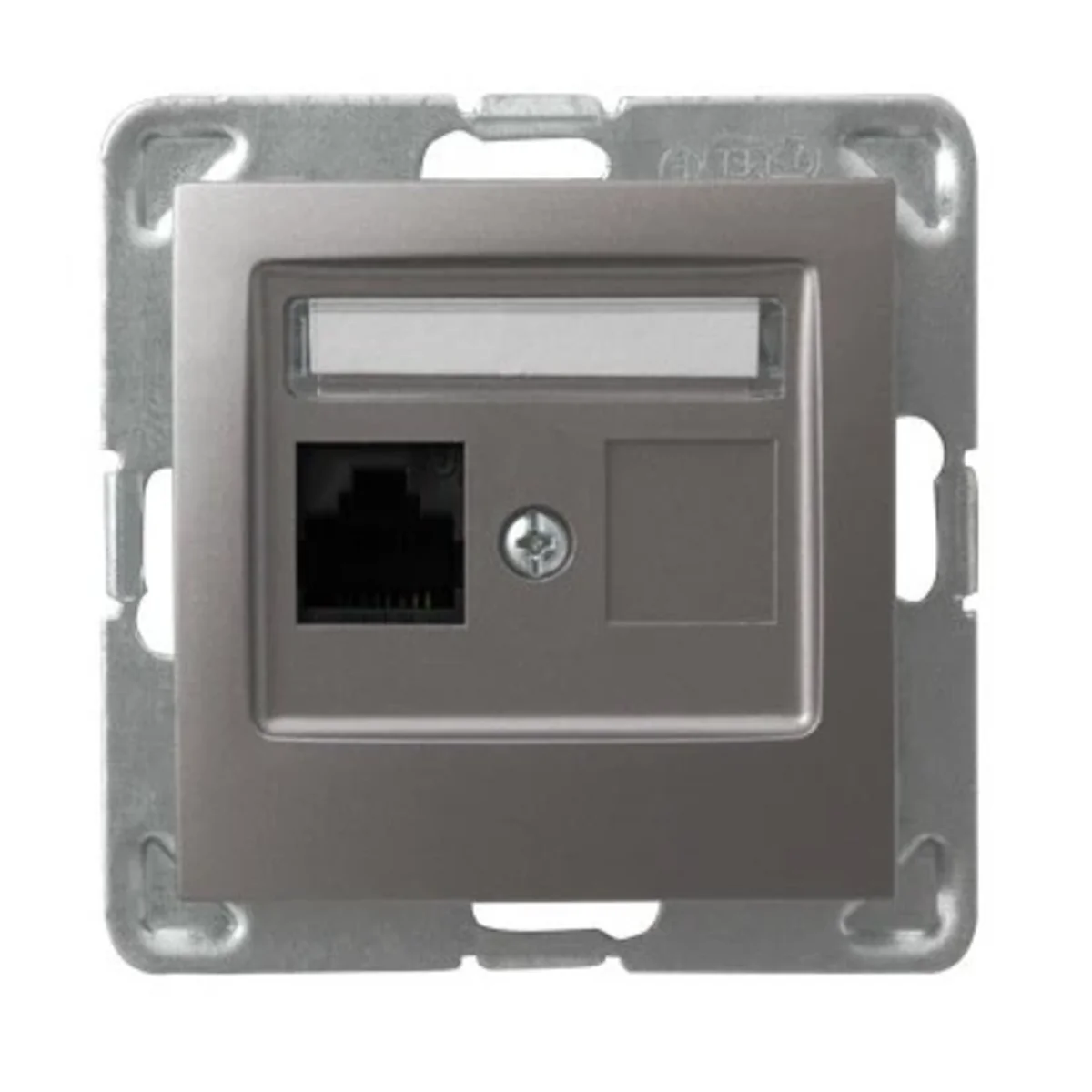

IMPRESJA Single computer socket, cat. 5e, titanium GPK-1Y/K/M/23

local index:
MEI051OSPE
Catalog No:
GPK-1Y/K/M/23
EAN code:
5907577439163
Manufacturer: OSPEL
Depth [mm]: 34
Category: 5e
Color: Silver
Price:
13,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single RJ-45 computer socket, category 5e MMC. It is used to connect a twisted pair signal cable, unshielded category 5e. The data transfer rate is 1Gb/s.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Technical data

  • Depth [mm]
    34
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted

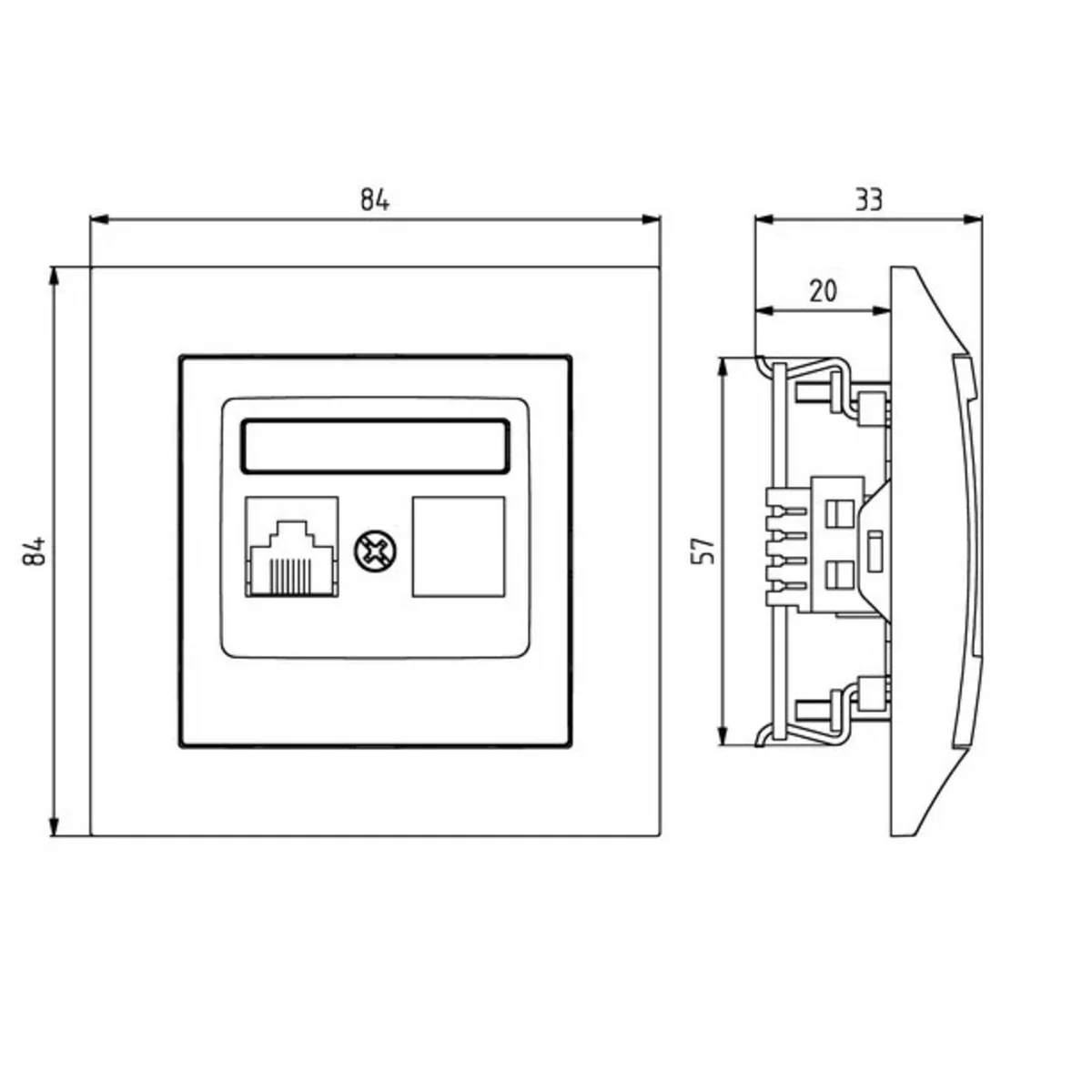

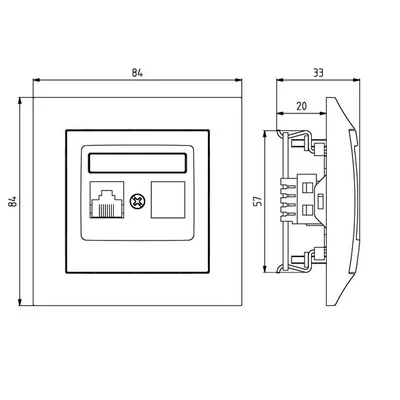

  • Height [mm]
    71
  • Accurate color
    Titanium
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • Exact material
    Plastic Metal
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    varnishing
  • Mounting depth [mm]
    20
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    26.30.30.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with housing top
  • With buses/couplings
    Yes
  • Category
    5E
  • RAL-number
    7048
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    75 mm
  • Device depth
    32 mm
  • Duct installation
    No
  • Type of fastening
    Engage (snap)
  • Type of connector
    RJ45 8(4)
  • Suitable for number of connectors
    1
  • Colour
    Titanium
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    Yes
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    75 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
