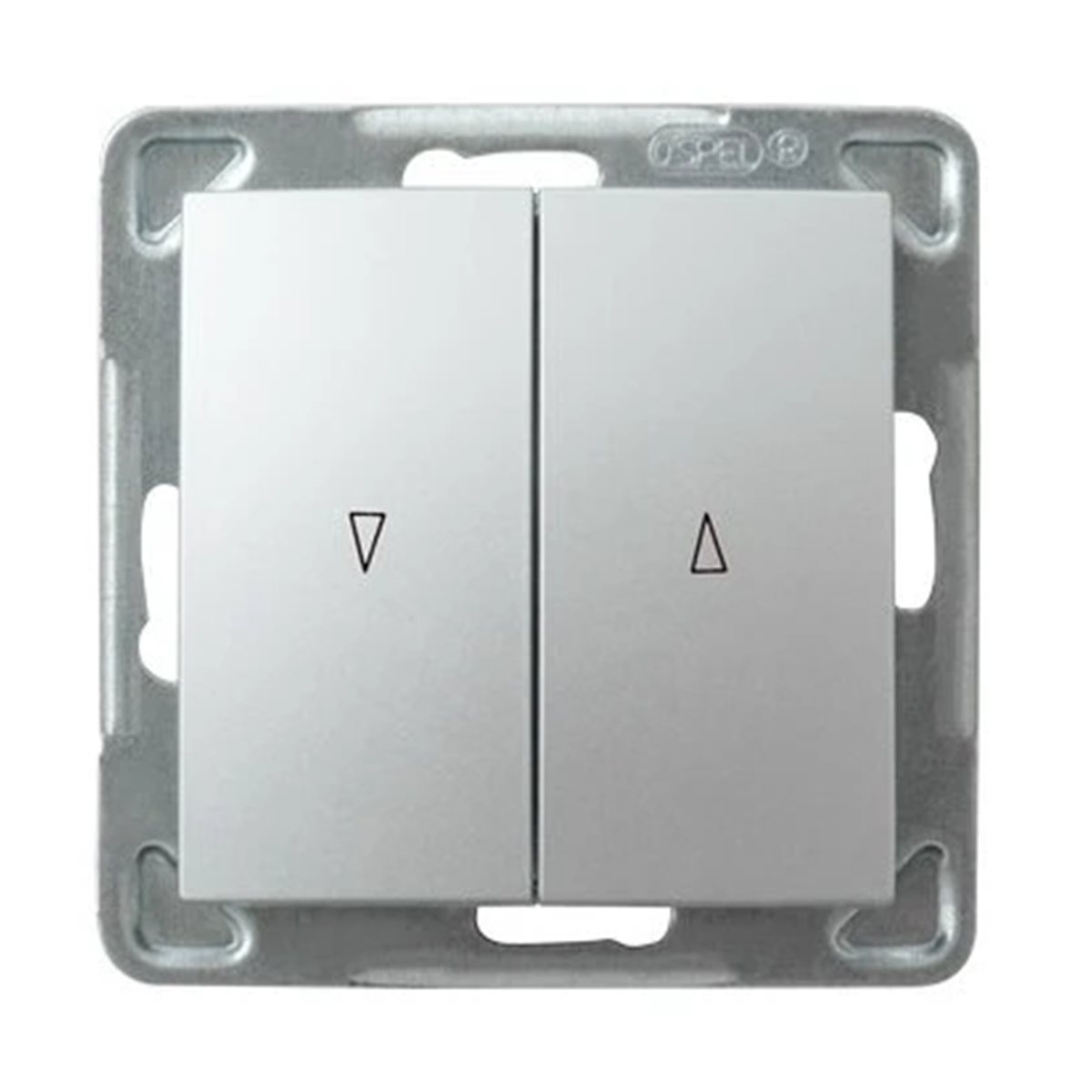

IMPRESJA Silver shutter connector, without a frame ŁP-7Y/M/18

local index:
MMO097OSPE
Catalog No:
ŁP-7Y/M/18
EAN code:
5907577439590
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Silver
Price:
8,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Louvre connector from the Impression series, from Ospel. The product catalog number is ŁP-7Y/M/18.

  • Making.
  • Monostable.
  • Electrical interlock.



SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impresja. The shutter connectorcharacterizes the features of this unique series.

Technical data

  • Depth [mm]
    40
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Version
    Single
  • Surface protection
    varnishing
  • Mounting depth [mm]
    23
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Blockade
    electric
  • Variant
    Two-position normally open
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Mechanical controllable
    yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9006
  • Label space/information surface
    no
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    40 mm
  • Model
    Other
  • Blokada elektryczna i mechaniczna
    yes
  • Electronic controllable
    no
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • Colour
    Silver
  • Transparent
    no
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Number of modules (module system)
    1
