IMPRESJA Shutter switch with orange backlight and ecru mechanical interlock ŁP-7YBS/M/27

Name: IMPRESJA Shutter switch with orange backlight and ecru mechanical interlock
Brand: OSPEL
SKU: MMO111OSPE
Price: 47.53 PLN

local index:

MMO111OSPE

Catalog No:

ŁP-7YBS/M/27

EAN code:

5907577478834

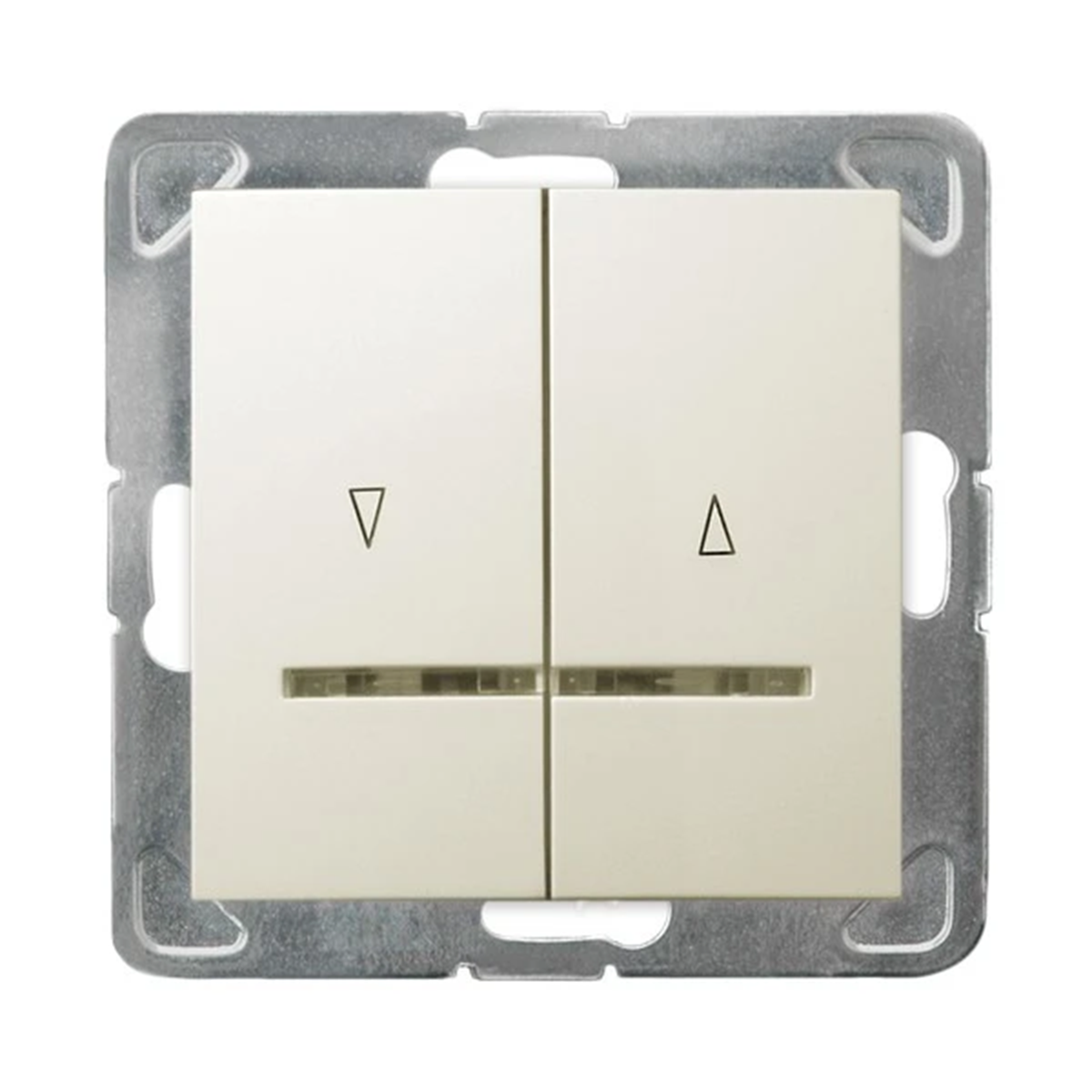

IMPRESJA Shutter switch with orange backlight and ecru mechanical interlock

Click on the photo to enlarge

Manufacturer: OSPEL

Depth [mm]: 40

Number of keys: 2

Color: Beige

See full description

Price:

47,53 zł

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Louvre connector from the Impression series, from Ospel. The product catalog number is ŁP-7YBS/M/27.

With backlight.
Bistable.
Electrical lock and mechanical.

SERIES DESCRIPTION

A wide range of available colors is the main advantage of the elegant Impression collection . The shutter connectorcharacterizes the features of this unique series.

Technical data

Depth [mm]

40
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

IMPRESSION
Width [mm]

71
Version

Single
Surface protection

Natural
Backlight

Yes
Blockade

Mechanical
Variant

Two-position
Backlight type

LTS lamp
PKWIU

27.33.11.0

Number of keys

2
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Accurate color

Ecru
Mounting depth [mm]

23
Terminal type

Threadless
For the frame system

Yes
Backlight color

Orange

Other technical data

Assembly arrangement

Basic element with complete housing
Method of operation

Rocker
Mechanical controllable

Yes
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface protection

Untreated
Type of fastening

Mounting with claw and screw
RAL-number (similar)

1013
Label space/information surface

No
Rated current

10 A
Number of buttons

2
Min. depth of built-in installation box

40 mm

Model

Other
Blokada elektryczna i mechaniczna

Yes
Electronic controllable

No
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
Colour

White
Transparent

No
Suitable for degree of protection (IP)

IP20
Nominal voltage

250 V
Number of modules (module system)

0

Manufacturer details

Manufacturer

OSPEL S.A.
Address

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	10 pcs.	10 pcs.
Width (m)	0,162	0,162
Length (m)	0,237	0,237
Depth (m)	0,090	0,090
