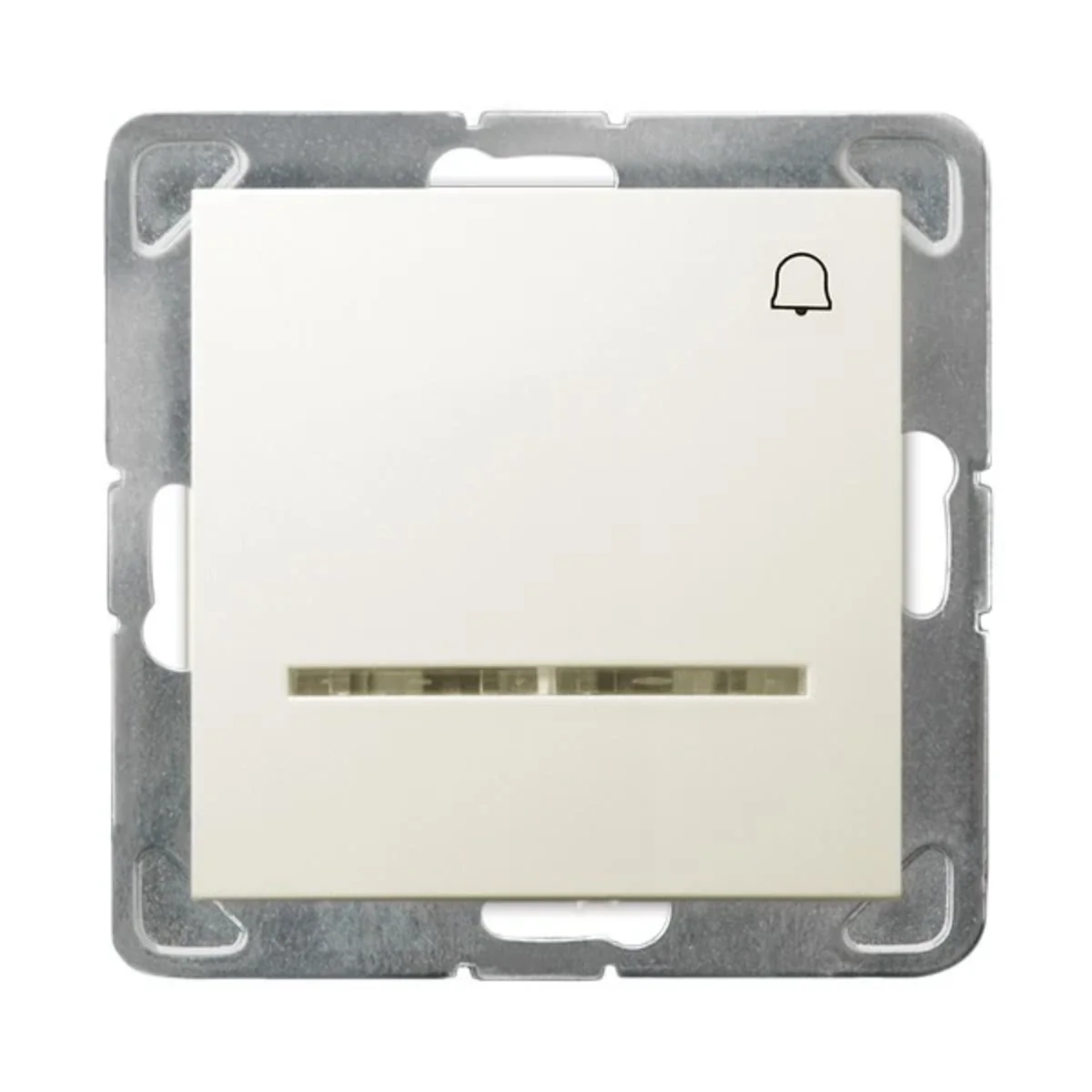

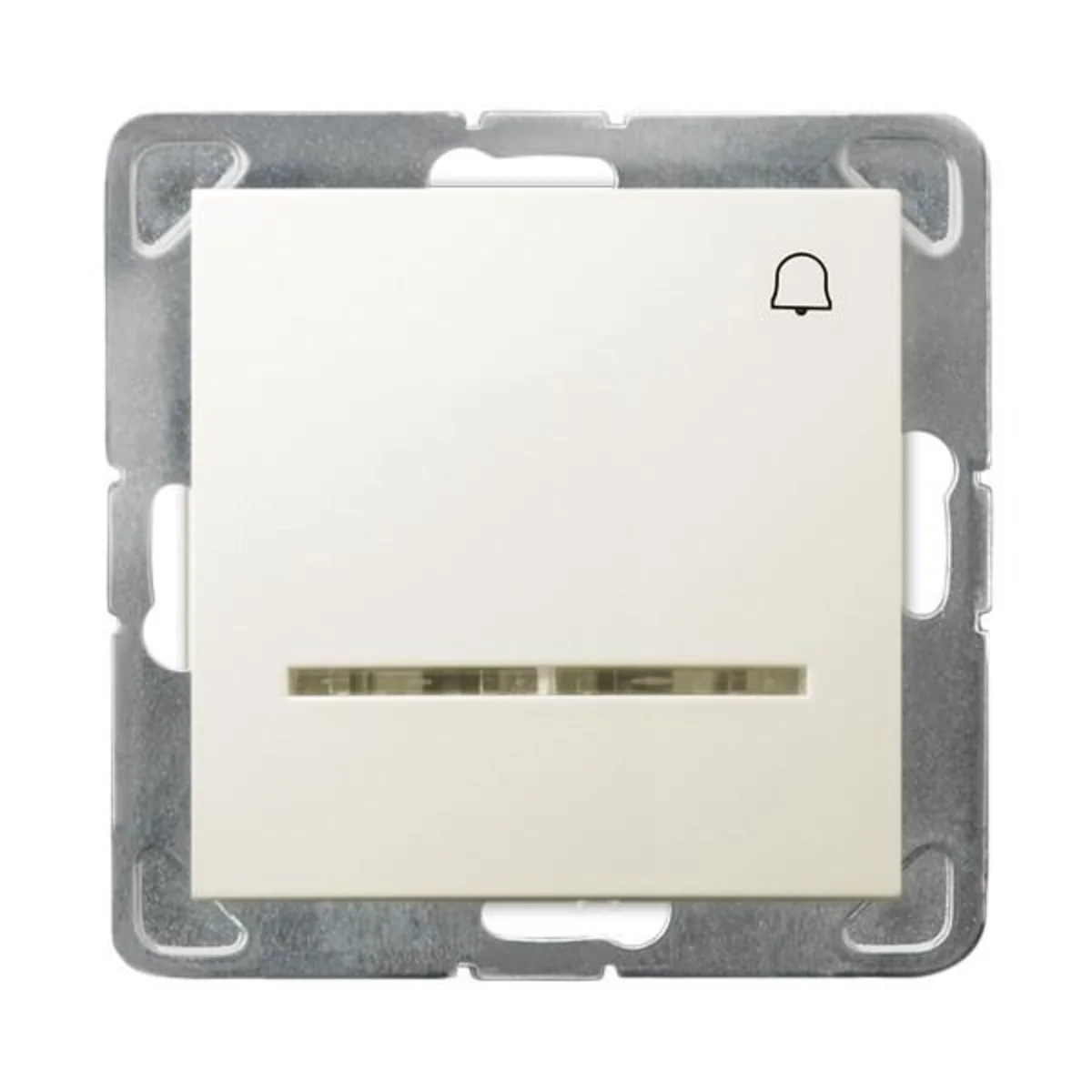

IMPRESJA Short-circuiting switch "bell" with ecru backlight, without frame ŁP-6YS/M/27

Indeks lokalny:
MMZ172OSPE
Numer katalogowy:
ŁP-6YS/M/27
Kod EAN:
5907577438227
Producent: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Beige
Cena:
35,31 zł
gross / szt.
(w tym VAT 23%)
do 2 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Short-circuit switch "bell" with backlight, from  Impression series, from Ospel manufacturer. Catalogue number ŁP-6YS/M/27. Ecru color.



FEATURES

  • To be equipped with a frame.
  • Symbol "bell" on the key.
  • Backlight - LTS lamp.
  • To obtain IP44 splash-proof class, use a sealing kit for switches.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impression collection combines functionality important for electrical equipment with an elegant, slightly convex line based on a square. A wide selection of colors allows you to match the accessories to both modern, almost ascetic arrangements, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Dane techniczne

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    IMPRESSION
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    23
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Backlight color
    Orange
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    Yes
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    LTS
  • PKWIU
    27.33.11.0

Pozostałe dane techniczne

  • Wiring system
    Normally open contact (NO)
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    23 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 10 szt.
Szerokość (m) 0,710
Długość (m) 0,710
Głębokość (m) 0,230
